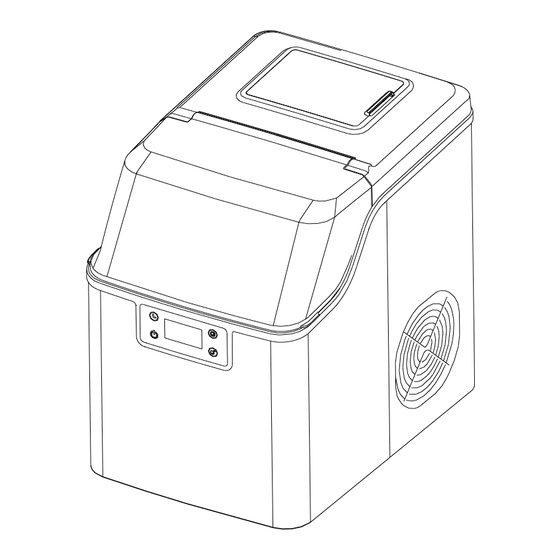

- Page 1 USER MANUAL ICE MAKER HZB-20AF HZB-20AF/S It is important that you read these instructions before using your portable ice maker and we strongly recommend that you keep them in a safe place for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS..............2 PREPARING YOUR ICE MAKER FOR USE .....................3-4 IMPORTANT SAFETY TIPS GETTING TO KNOW YOUR UNIT OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER CONNECTING YOUR ICE MAKER CLEANING AND MAINTAINING YOUR ICE MAKER USING YOUR ICE MAKER..................8 Automatic self-cleaning program................9 TROUBLESHOOTING TECHNICAL PARAMETERS &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages manual and your appliance. Always read and obey all safety messages. This is the safety alert symbol: All safety messages will follow the safety alert symbol and the word “DANGER” or “WARNING”. -
Page 4: Preparing Your Ice Maker For Use
PREPARING YOUR ICE MAKER FOR USE IMPORTANT SAFETY TIPS When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. ... - Page 5 DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing. CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner’s Guide Before Attempting To Install or Service This Product. All Safety Precautions Must be Followed.
-
Page 6: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT 1. Control Panel: A. Timer/clean button Quickly press this button once, to enter the Timer setting program; And press this button for more than 5 seconds, to enter the Cleaning program B. ON/OFF button When the unit is off, press this button to turn on the unit; When the unit is making the ice cube, press this button for more than 5 seconds, the unit will switch to ice harvest process by force. -
Page 7: Operating Procedures & Maintenance
OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging. Check that ice basket and ice scoop is included. If any parts are missing, please contact our customer service. 2. Clean the interior with lukewarm water and a soft cloth. Take out the ice basket and clean it 3. - Page 8 After using your ice maker for a long time, we also suggest you should clean your unit. Especially to the water separator pipe and the wate filters, you must clean them periodically. 1. If the water separator pipe is blocked and there is no water flowing down when you listen the compressor and the water pump inside are still working, please turn off the unit first and disassemble this pipe down, and clean it.
-
Page 9: Using Your Ice Maker
USING YOUR ICE MAKER Operation panel and display area DISPLAY OPERATION OPERATION AREA AREA AREA 1. Remove the cover of the water reservoir and pour potable water into water reservoir. And be sure to keep water level below the max. level with FULL mark displayed in following picture. -
Page 10: Automatic Self-Cleaning Program
4. When Ice Full symbol< >is on, the unit will stop, take out the ice cube inside, the unit will start working again. If press the button<ON/OFF>more than 5s,when the ice maker is working, the unit will start harvest. Press button<ON/OFF>,the unit will turn off. Timer setting.Unit on timer setting,When the unit is working,timer setting the unit off. - Page 11 Warning A、make sure the water tank ,water filter and the water separator pipe is not blocked, clean them B、The water temp will effect the ice making capacity.The lower temp,the more ice cube produce. C、The cooler ambient temp, the more ice cube produce. D、...
-
Page 12: Technical Parameters & Circuit Diagram
TECHNICAL PARAMETERS & CIRCUIT DIAGRAM TECHNICAL PARAMETERS CIRCUIT DIAGRAM ELECTRICAL DIAGRAM Solenoid Valve magneticcontrol FOR ICE-MAKER Start switch Relay Overload sensor for water temp COMPRESSOR Protector POWER SUPPLY COMP DC Water Pump AC-N 1 2 AC-L Relay DC Fan Motor -PUMP+ VALVE DC Water valve...
