QUICK START
GUIDE
MORPH 2-IN-1 EBIKE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MORPH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for freebeat MORPH

Summary of Contents for freebeat MORPH

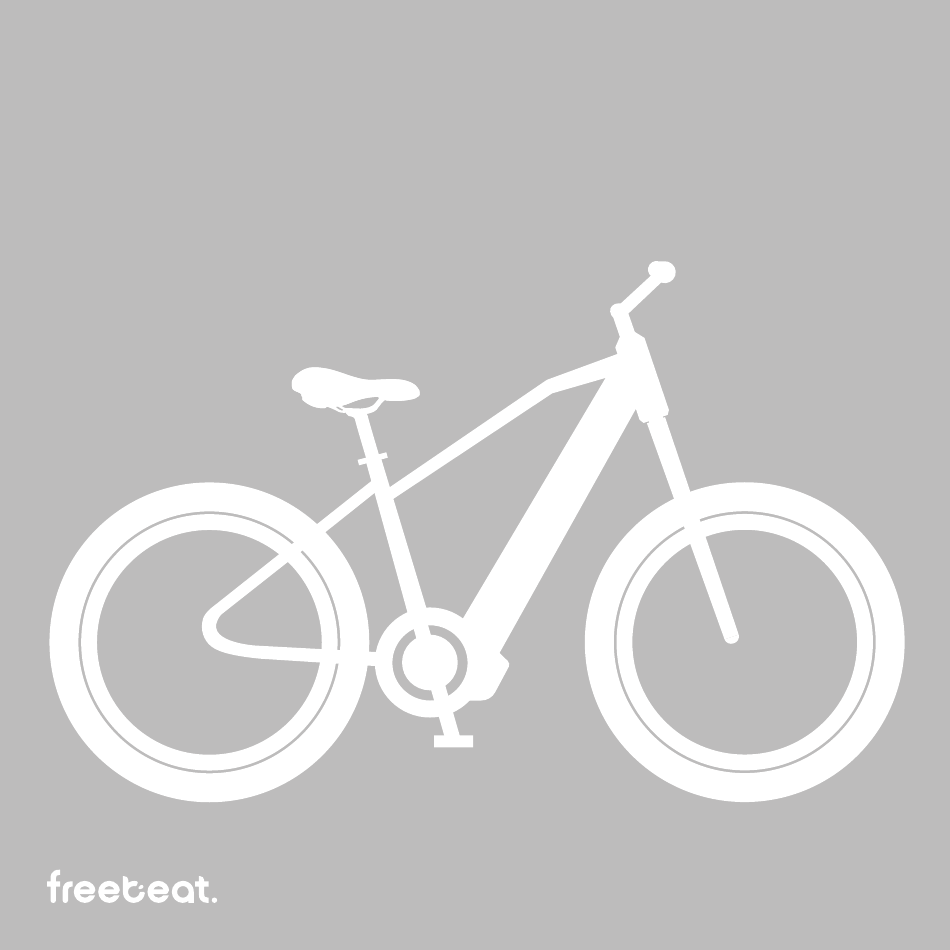

  • Page 1 QUICK START GUIDE MORPH 2-IN-1 EBIKE...
  • Page 2 STEP 1. UNBOXING 1. Position the package with the arrows on the side facing upward. 2. Raise up the top cover to unpack the package. 3. Verify that all items are present in the accessory box.
  • Page 3 INDOOR WORKING STATION Front Rear Accessories Include…… Accessories Box (M2.5/M3/M4/M5/M6) (Flat Head) (M15) (L & R) Allen Key Screwdriver Wrench Pedals Charger Bell Front light Battery Key × 2 Reflector Display Quick Start Guide User Manual...

  • Page 4: Step 2. Front Wheel Assembly

    STEP 2. FRONT WHEEL ASSEMBLY 1. Remove the nuts & washers from the front wheel axle 2. Attach the front wheel axle to the front fork. 3. Slide the front wheel washers onto the front wheel axle, and tightly fasten the axle nuts to secure the front wheel. 4.
  • Page 6 STEP 3. DISC BRAKE CALIBRATION 1. Bend down near the wheel to inspect for any squealing sound coming from the brake disc and pads. 2. Loosen up the screw so the brake hub can move freely. 3. Adjust the clearance between the brake pad and disc, and ensure that there is enough clearance between them.

  • Page 7: Step 4. Handlebar Assembly

    STEP 4. HANDLEBAR ASSEMBLY 1. Ensure the stem is straightened up at a 90-degree angle. 2. Install the handlebar onto the stem. 3. Align and center the handlebar with the perfect angle facing you. 4. Fully tighten the screws on the side and top of handlebar. 90°...

  • Page 8: Step 5. Display Assembly

    STEP 5. DISPLAY ASSEMBLY 1. Use the M2.5 Allen key to loosen the screws holding the display. 2. Install the bracket onto the handlebar and securely tighten the screws using the M2.5 Allen key. 3. Connect the blue and green female connectors to their corresponding male connectors.
  • Page 9 STEP 6. REAR ASSEMBLY & SADDLE ADJUSTMENT 1. Install the rear light on the seat post, positioning it approximately 10mm (0.4 inches) below the saddle. 2. Release the saddle post clamp. 3. Adjust the saddle to your preferred "comfortable" riding height. 4.

  • Page 10: Step 7. Pedals Assembly

    STEP 7. PEDALS ASSEMBLY 1. Remove the sticker from the RIGHT crankset. 2. Install the RIGHT pedal onto the RIGHT crankset, following the provided illustration. Rotate the pedal in a clockwise direction. 3. Use a wrench to securely tighten the RIGHT pedal. 4.
  • Page 12 STEP 8. FRONT LIGHT ASSEMBLY 1. Connect the wire of the front light. 2. Unscrew the front light M4 screws off the front light stands. 3. Install the front light onto the front light stands.
  • Page 13 STEP 9. BATTERY REMOVE/ASSEMBLY 1. Insert the battery key into the keyhole. 2. Rotate the battery key in a counter-clockwise direction to switch it to the "UNLOCK" mode, as shown in the provided illustration. 3. Gently pull the top part of the battery out of the down tube. 4.

  • Page 14: Step 10. Battery Charging

    STEP 10. BATTERY CHARGING 1. Open the rubber cover on the charging socket. A. Place the charger on a flat and secure surface. Connect the output plug from the charger to the charging port located on the side of the battery section. 2.
  • Page 15 STEP 11. INDOOR WORKING STATION FRONT 1. Align the screw holes located at the lower end of the bike rack's main body with the corresponding holes on the bottom tube of the bike frame. Insert the screws into the aligned holes. 2.
  • Page 16 STEP 11. INDOOR WORKING STATION REAR 1. Take out the training unit body, main frame crossbar, and parts package from the box. 2. Align the holes on the main frame crossbar with the corresponding holes on the training unit body. Insert the carriage bolt, place a flat washer, and tighten the cap nut.
  • Page 17 2. Long press the start button ( on your left hand side) to start your bike. Plus Button Menu Button Start Button Light Button Minus Button Battery Speed Assist Total Mileage To provide you with guidance on using the freebeat app, please scan the QR code:...
  • Page 18 www.freebeatfit.com...
