Trader BEAR BESMOKEYV2 User Manual

BESMOKEYV2 - User Manual

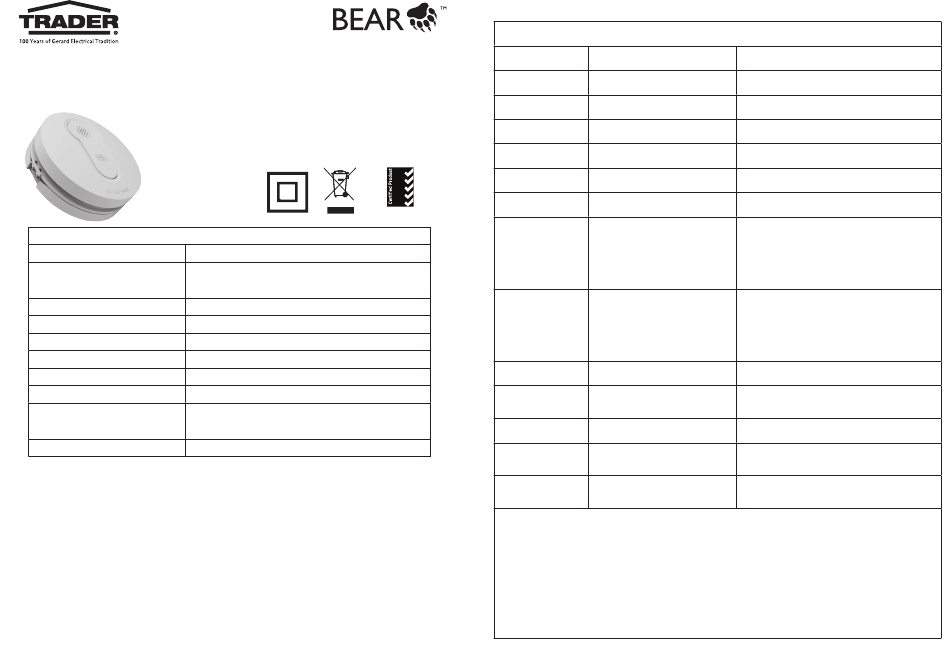

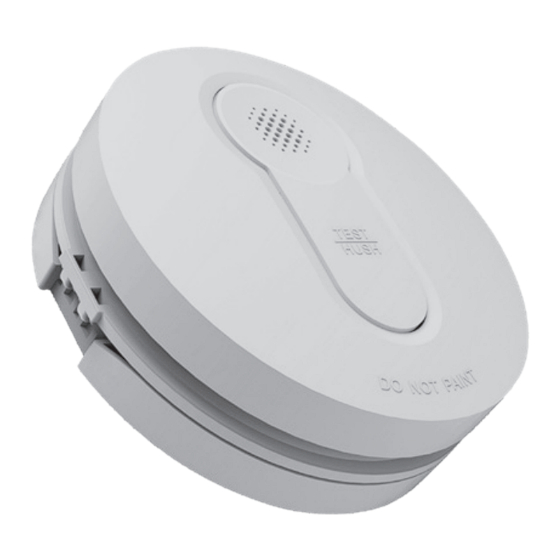

Smoke Alarm, Photoelectric, Surface Mount
220-240V AC, 9V Battery Back Up / Individual or Interconnected
Thank you for purchasing our smoke alarm. This instruction contains important
information on the correct installation and operation of your smoke alarm.
Read this instruction fully before attempting installation and retain them
for future reference.

Specifications:

Main Power Source 220-240V AC 50 Hz
Suitable batteries: GP DC 9V carbon battery or PAKKO DC 9V
Secondary Power Source carbon battery; or EVE DC 9V Lithium battery; or Raymax DC
9V Alkaline battery
AC Operating Current <60mA
Interconnecting
Max. 24 alarms (wired 150m maximum)
Operating Temperature 0 °C to 40 °C
Ambient Humidity 5-95%
Alarm Sensitivity
0.100-0.180 dB/m
Alarm Volume ≥ 85dB(A) @ 3m
ISO8201(BI 0.5s - pause 0.5s - BI 0.5s - pause 0.5s - BI 0.5s
Sound Pattern - pause 1.5s, with the RED LED flashing, repeat this alarm
pattern)
Comply with AS 3786:2014+A 1 :2015+A2:2018
WARNING:
• This product must only be installed and serviced by appropriately qualified electrician;
• This product must only be used for the purpose described in these instructions and must be installed in
accordance with the wiring rules and regulations in local location.
• Hazardous voltage may be presented at the wire leads of this product.
• Disconnect the AC power before installing or removing the smoke alarm.
• Ensure that the product has been correctly installed and tested for safe operation before reconnecting the
electrical supply.
• DO NOT connect the interconnection wire to Live or Neutral.
• A non-pure sinusoidal power sources is not suitable for this smoke alarm (e.g. derived from square-wave
invertors).
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
Failure to follow these instructions may result in death or serious injury.

Product function description:

Function
Standby status
AC power indication
Low battery warning
Fault warning
Self-test fault warning
End-of-life warning
Standard: AS 3786-2014
Licence Number: SMK41282
Test function
Silence function
Fire alarm
Fire alarm memory
Interconnection alarm
Interconnection alarm
memory
Do not disturb
CAUTION:
• Before using the silence function, identify the source of the smoke and make sure a safe condition existing.
After 10 minutes silence, the unit will resume to normal operation.
• DO NOT use an open flame to test your alarm which may damage the alarm or ignite combustible materials
and result in a fire.
If the alarm sounds, and it is not being tested, it means the unit detected smoke. THE SOUND OF THE ALARM
•
REQUIRES YOUR IMMEDIATE ATTENTION AND ACTION.
1
Indication Description
The Red LED flashes about every 48
The unit is working.
seconds.
The Green LED illuminates continuously. The unit is receiving AC power.
The unit chirps with Red LED flashing The battery voltage is too low, must replace a new battery
about every 48 seconds. within 30 days.
The unit beeps twice and flashes twice The unit is faulty, get helps from the section: "Trouble
every 48 seconds Shooting".
The Red LED flashes twice about every
The buzzer fault or buzzer detection circuit fault.
48 seconds.
The unit chirps between the Red LED two The unit will send end-of-life warning after working 10
times flashing. years. Need to replace a new smoke alarm.
• Test by pressing the TEST button on the smoke alarm
at least 5 seconds.
The Red LED flashes once every second • The alarm will sound if all electronic circuitry, horn
with alarm sounding until the TEST and battery are working properly.
button is released. • If no alarm sounds, refer to "Trouble Shooting".
• Recommend testing the alarm Weekly by pressing
the TEST button.
• This smoke alarm has a built-in Silence feature.
• If cooking or other non-hazardous sources cause the
alarm to sound, it can be temporarily silenced by
The Red LED flashes every 8 seconds. pressing the HUSH button for above 2 seconds.
• The alarm enters silence mode for 10 minutes.
• After the 10 minute dormant period, the smoke
alarm will resume normal ooeration.
The Red LED flashes every second, with
Generate alarm sounds when fire happening.
alarm sounds.
After the unit exits Fire alarm state, it enters the Fire alarm
The Red LED flashes twice every 24
memory state, and the red LED flashes twice every 24
seconds.
seconds for 72 hours.
The unit generates alarm sounds without The unit will enter the interconnection alarm mode when
Red LED flashing. received wire interconnection alarm signals.
After the unit exits Interconnection alarm state, it enters
The Red LED flashes once every 1 second. Interconnection alarm memory state, and the red LED
flashes once every 1 second for 3 minutes.
The unit will stop nuisance warning about 10 hours
The Red LED flashes about every 48
under low battery or fault mode when the HUSH button
seconds.
is pressed.
