Features:
Made of high impact plastic ABS.
Outdoor IP66, rainfall resistant.
Wall mounting and pole mounting application.
Have 2 inlet ports,16 outlet ports .
Model
ORNO-MDU-216-x1
ORNO-MDU-216-x2
ORNO-MDU-216-x3
ORNO-MDU-216_v2
ORNO-MDU-216-x4
ORNO-MDU-216-x5
Application:
Widely used in FTTH access network. Telecommunication Networks , CATV Networks, Data communications Networks,
Local Area Networks

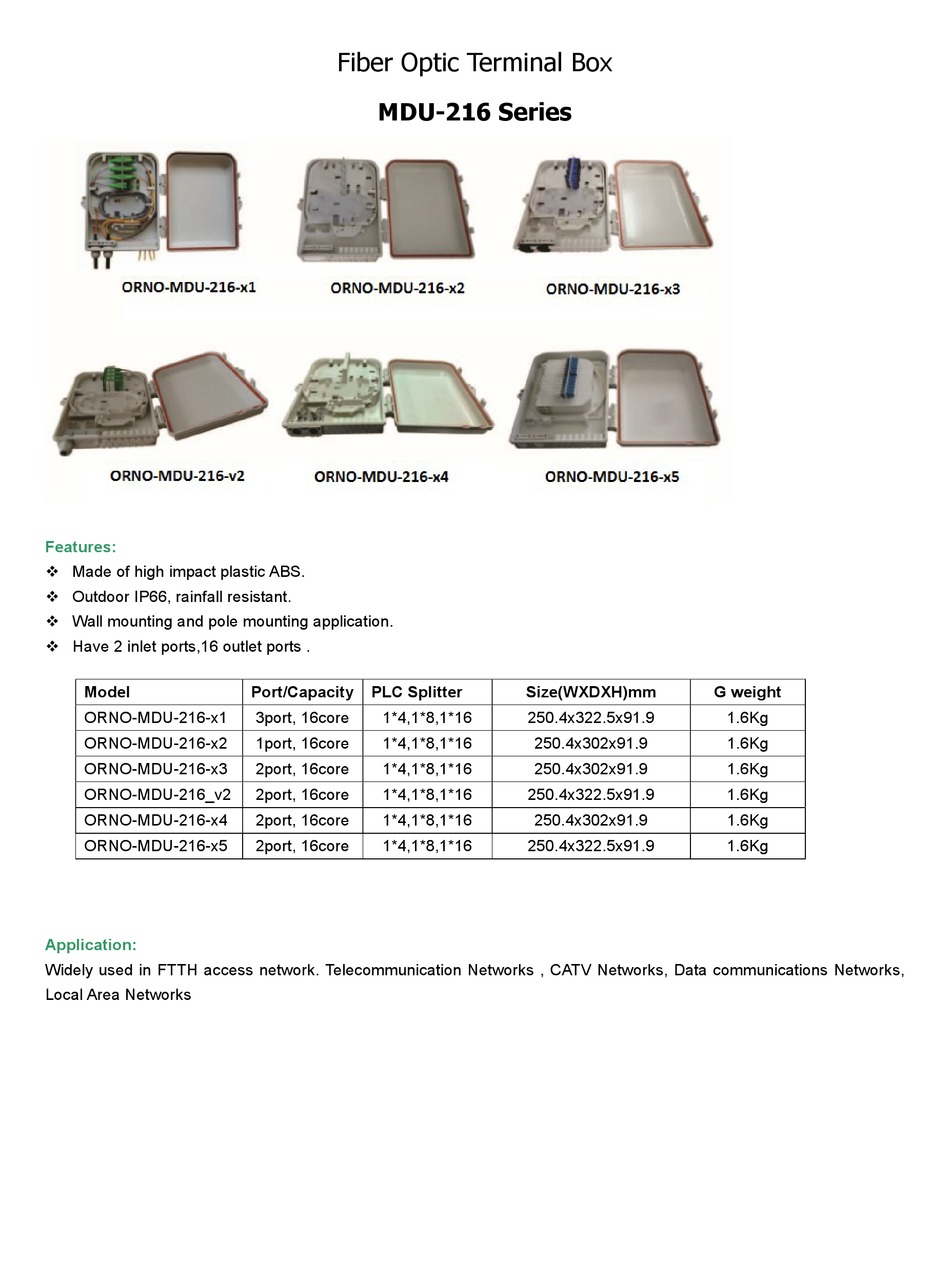

Fiber Optic Terminal Box
MDU-216 Series
Port/Capacity
PLC Splitter
3port, 16core
1*4,1*8,1*16
1port, 16core
1*4,1*8,1*16
2port, 16core
1*4,1*8,1*16
2port, 16core
1*4,1*8,1*16
2port, 16core
1*4,1*8,1*16
2port, 16core
1*4,1*8,1*16
Size(WXDXH)mm
250.4x322.5x91.9
250.4x302x91.9
250.4x302x91.9
250.4x322.5x91.9
250.4x302x91.9
250.4x322.5x91.9
G weight
1.6Kg
1.6Kg
1.6Kg
1.6Kg
1.6Kg
1.6Kg
Advertisement
Table of Contents
Summary of Contents for Alternetivo MDU-216 Series
- Page 1 Fiber Optic Terminal Box MDU-216 Series Features: Made of high impact plastic ABS. Outdoor IP66, rainfall resistant. Wall mounting and pole mounting application. Have 2 inlet ports,16 outlet ports . Model Port/Capacity PLC Splitter Size(WXDXH)mm G weight...
- Page 2 Installation: 1. Insert small diameter cable 2. Connect small diameter cable with 3. Fix the 1x8 or 1x16 splitter as and fix it. splitter input cable by fusion splicing or below mechanical splicing. Mechanical splice 1x16 or 1x8 Splitter Splitter input cable 5.
