Durabook R8 User Manual

Rugged tablet expansion module smart card reader with rfid
Hide thumbs Also See for R8:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

R8 Rugged Tablet
Expansion Module
Smart Card Reader
with RFID
Smart Card Reader with LF/HF RFID
Smart Card Reader with UHF RFID
P/N: 62+031105+10
© 2023 Twinhead International Corp and/or its affiliates. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R8 and is the answer not in the manual?

Questions and answers

Related Manuals for Durabook R8

Summary of Contents for Durabook R8

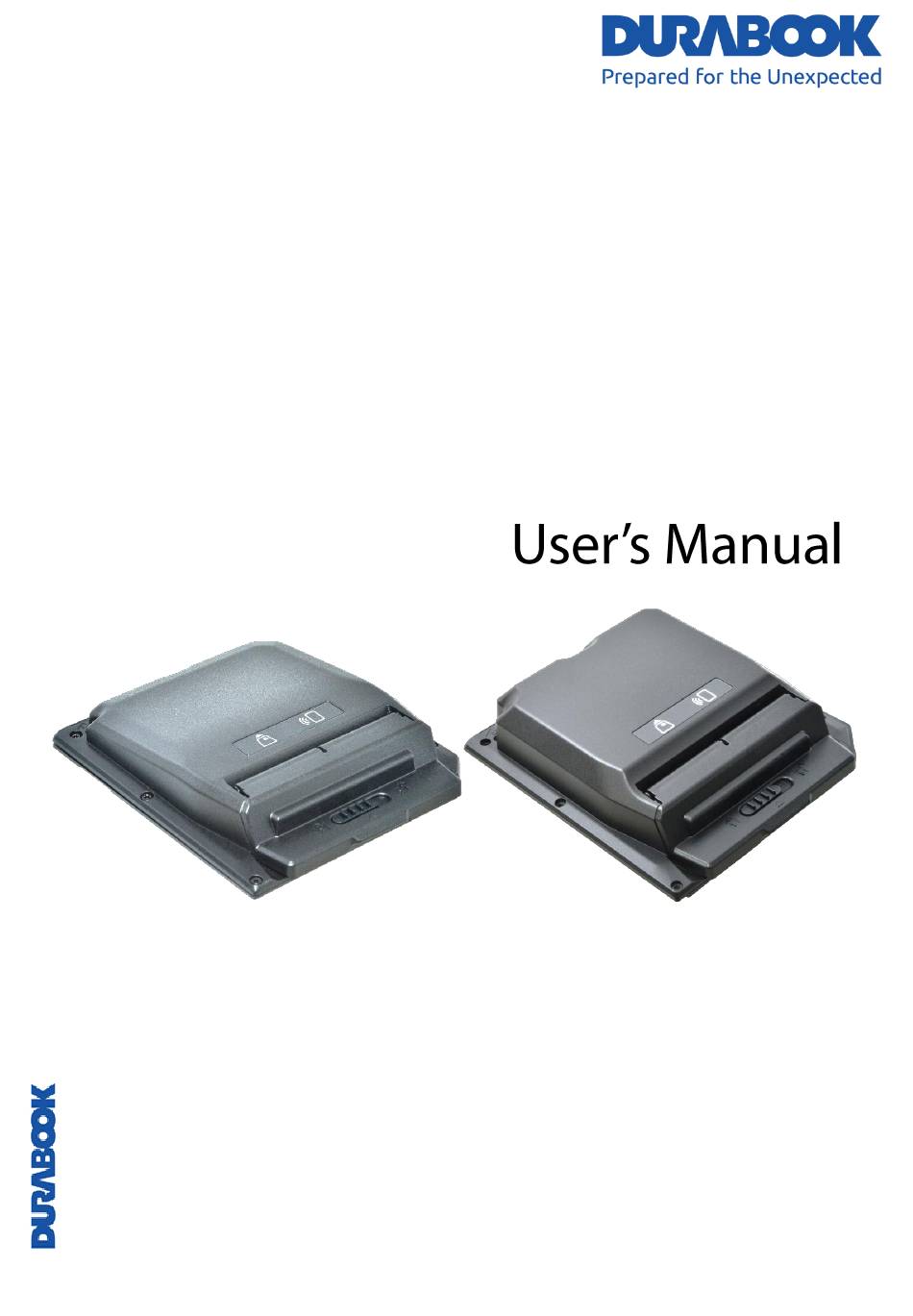

  • Page 1 R8 Rugged Tablet Expansion Module Smart Card Reader with RFID Smart Card Reader with LF/HF RFID Smart Card Reader with UHF RFID P/N: 62+031105+10 © 2023 Twinhead International Corp and/or its affiliates. All rights reserved.
  • Page 2 R8 Expansion Module - Smart Card Reader with RFID Package Contents If any of following items is damaged, please contact your retailer. Smart Card Reader with Screw Sponge RFID module (7+1+3) Expansion Module - Smart Card Reader with RFID Screws...
  • Page 3 R8 Expansion Module - Smart Card Reader with RFID Installation This section will guide you on how to install the expansion modules to your tablet Note: Make sure to remove the battery before installing any type of expansion modules. For more information on how to remove/install the battery, please refer to the tablet PC service guide.
  • Page 4 R8 Expansion Module - Smart Card Reader with RFID 3. Connect the expansion module with smart card reader harness to the mainboard connector. 4. Place the expansion module with smart card reader bracket onto its slot on the lower case. Make sure the cut edge of the bracket is aligned properly with the lower case.
  • Page 5 R8 Expansion Module - Smart Card Reader with RFID 6. Route the expansion module with smart card reader cable as shown in the image below. 7. Align by the screw holes and then place the expansion module with smart card reader on top of its bracket.
  • Page 6 R8 Expansion Module - Smart Card Reader with RFID 9. Slide the expansion module with smart card reader lock switch to the unlock position. 10. Open the smart card reader door. 11. Attach the 2 screws to secure the smart card reader to the lower case.
  • Page 7 R8 Expansion Module - Smart Card Reader with RFID 12. Close the expansion module with smart card reader door. 13. Slide the smart card reader lock switch to the lock position.
  • Page 8 R8 Expansion Module - Smart Card Reader with RFID Expansion Module - Smart Card Reader with RFID Screws Screw Type Screw Name Quantity Torque ISOT-M2.0X6L 2.0 ± 0.3 Kgf-cm ISOT-M2.0X8L 2.0 ± 0.3 Kgf-cm ISOT-M2.0X5L, 2.0 ± 0.3 Kgf-cm D=3.4mm Twinhead International Corp.
