- Page 1 MODEL MUD-MTC200 PO Box 535189 • Grand Prairie, TX 75053-5189 • (877) 269-8490 www.gsmoutdoors.com January 2019. Published by GSM, LLC, Grand Prairie, Texas © 2019 GSM, LLC. All rights reserved. R2019.2...
-
Page 2: Table Of Contents
ITEMS REQUIRED FOR STARTUP......ADVANCED SETTINGS ........10 FEATURES & SPECS........... MOUNTING & FIELD SETUP......16 CAMERA DIAGRAMS........CAMERA CARE ..........18 BATTERY INSTALLATION........TROUBLESHOOTING........19 MEMORY CARD INSTALLATION......WARRANTY INFORMATION......20 QUICK-START........... OWNER’S RECORD...........21 INCLUDES: Camera Manual 5’ Mounting Strap REQUIRED FOR STARTUP: • 6-AA Cell Alkaline Batteries (recommend name brand for best performance, sold separately) •... -
Page 3: Features & Specs
FEATURES & SPECS: Camera Specifications Image Res. 16 MP Video Mode Standard VGA (32 FPS) Image Detail Color (Day), B/W (Night) Video Length 4 Options:10 - 60 seconds Illumination 18 LEDs with Infrared Flash Detection Range 70 Feet Trigger Speed 1.5 Seconds Flash Range 50+ Feet... -
Page 4: Camera Diagrams
LEDs Camera Lens Light Motion Test LED Sensor Power PIR Sensor Button S E T U P D A T E T I M E 0 1 0 2 1 6 01 : 0 1 A M O O K Door Mode Set-up... - Page 5 SDHC Card Slot 12V DC Mounting Receiver Battery Chamber Latch Port (1/4” - 20) Release...
-
Page 6: Battery Installation

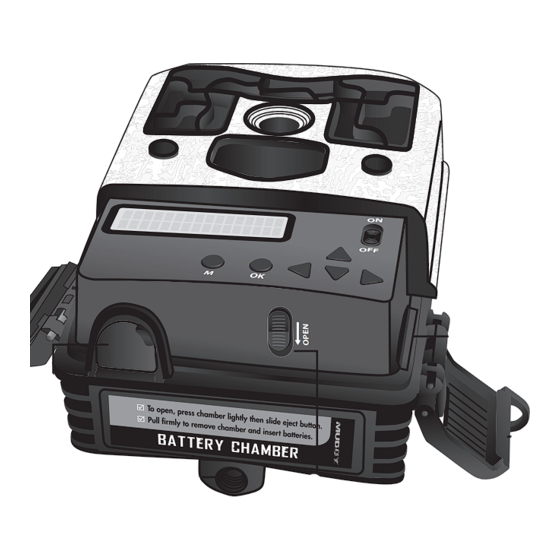

INSTALLING BATTERIES: Fig. 1 IF USING AA - CELL BATTERIES 1. To remove the internal AA battery pack, press chamber lightly and slide the eject/open button inside camera cover (Fig. 1). Next, pull Fig. 2 Fig. 3 firmly to remove chamber and insert batteries (Fig. - Page 7 BATTERIES CONT . . . Fig. 2 IF USING 12V DC POWER SOURCE 1. Remove the rubber port cap at the bottom of the camera (Fig. 1). Using a universal 12V DC cord, plug in to the bottom port option (Fig.
-
Page 8: Memory Card Installation
MEMORY CARD INSTALL: (sold separately) Fig. 1 1. To access the user interface and insert a SDHC Card, lift up on the side locking latch located toward the bottom of the side of the camera. After the latch is disengaged, move latch to allow the interface door to open (Fig. -
Page 9: Quick-Start
QUICK-START: Your Pro-Cam will come with the following standard options already preset. You can leave all settings as defaulted to start taking quality pictures, but you’ll want to make sure to set up the current Date and Time. Setup date/time (Defaults to original date/time – may need to be re-programmed if you reset the default settings) CAMERA MODE –... -
Page 10: Advanced Settings
ADVANCED SETTINGS: Slide the power button from OFF to ON position to activate the camera and view the user setup screen. Setting the functions is easy; 1. Simply press the M button to access the menus, and use the UP or DOWN arrows to scroll through the menu settings. - Page 11 CAMERA MODE: C A M E R A M O D E Sets the camera to take either photos or videos. C A M E R A CAMERA - The following other settings are recommended to be set when in Camera Mode: Image Resolution, Picture Delay, Burst Mode, Flash Mode VIDEO - The following other settings are...
- Page 12 PICTURE DELAY: P I C T U R E D E L A Y Selects the trigger delay at which you want to run your camera. This is the amount of 1 0 S E C O N D time between each trigger the camera takes. Options are: 10 sec, 20 sec, 30 sec, 1 min, 5 min, 10 min, 30 min On a lower setting, the camera will trigger more...
- Page 13 FW VERSION: F W V E R S I O N Displays the version of firmware that is installed on the camera. XX X X X X X MOTION TEST: Allows you to determine distance and aim for your detection zone. When this setting is on, M O T I O N T E S T you can walk to your target area and move around.
- Page 14 FORMAT SDHC CARD: F O R M A T S D C A R D Allows you to format your SDHC Card. Formatting a SDHC card clears file system corruption and erases everything on the SDHC card. NOTE: Before each use, it is highly recommended to either perform a full format on the SDHC Card via a PC, or by performing the Format option on the trail camera.
- Page 15 PICTURE INFO BAR: P I C T U R E I N F O B A R This setting is only available in Camera Mode, not Video Mode. It allows you to choose if you want the photos to have the current information imprinted on your files or not.
-
Page 16: Mounting & Field Setup
MOUNTING & FIELD SET-UP: Your Pro-Cam trail camera comes with a 5’ nylon Fig. 2 mounting strap which allows for quick and easy mounting (Fig. 1). The camera has an open slot on each side of the back for your strap to thread through for mounting. - Page 17 ARMING THE CAMERA: Your Pro-Cam trail camera will arm itself to take pictures when powered on, with no button activity for 30 seconds, and on the home screen. After 30 seconds, the camera is armed and ready to take pictures. The camera will arm itself in 90 seconds with no activity and in the camera menu.
-
Page 18: Camera Care
CAMERA CARE: Moisture, vibration, and extreme temperature can cause severe damage to your trail camera and should be avoided. Keeping your camera free from moisture and vibration and using in the correct temperatures will assure you many years of maintenance free service and operation. MOISTURE: Although the Pro-Cam trail camera has a very durable waterproof membrane inside the molded ABS material shell, care must be taken to prevent water damage. -
Page 19: Troubleshooting
SDHC card, we recommend that you replace the card with a new SDHC card or one from a different MUDDY trail camera that you know works. This will help determine whether the problem is the SDHC card or the camera. We do NOT recommend using cards that have been used in cameras from different manufactures and/or different styles of cameras unless a Full Format on a PC is done to those cards. -
Page 20: Warranty Information
WARRANTY: WARRANTY Muddy Pro-Cam Trail Camera’s 1 Year Limited Warranty: For a period of 365 days after purchase, GSM, LLC will, at its discretion, repair or replace this product for any reason of any defect or malfunction. This warranty is only valid if the product is used for the purpose intended and has not been tampered with and/or physically damaged in any way. -
Page 21: Owner's Record
OWNER’S RECORD: Product Name Model Number Serial Number Purchased From Purchased Date... - Page 24 www.gsmoutdoors.com GSM, LLC PO Box 535189 , Grand Prairie, TX 75053-5189 Toll Free: 877-269-8490...
