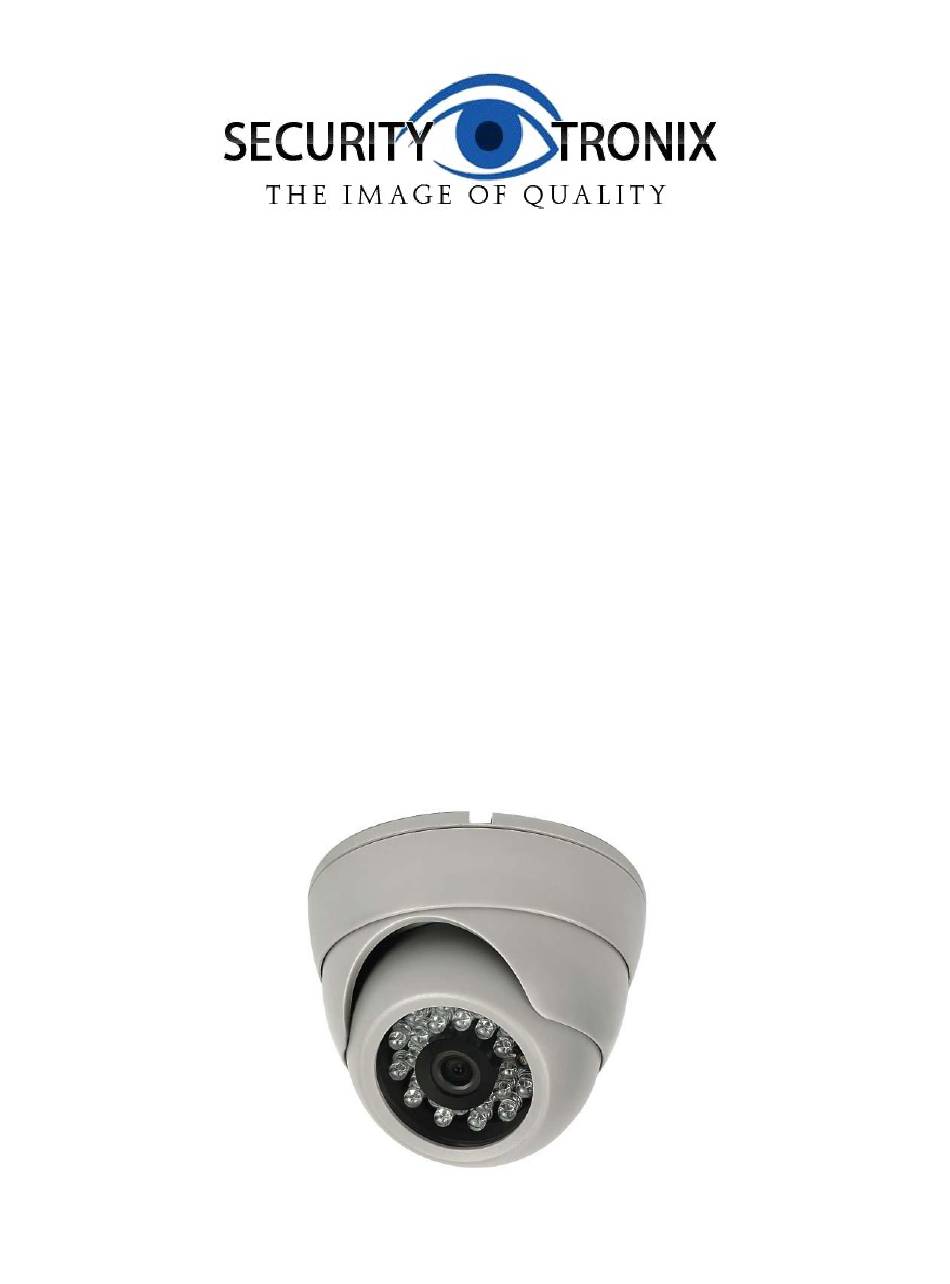

- Page 1 INSTALLATION MANUAL ST-DWD650IR–B/W Plastic Indoor Infrared Dome Color Camera v2.0 9/16/13...
-
Page 2: Package Contents
ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-DWD650IR-B/W is a plastic indoor infrared dome color camera designed around a 1/3” Color SONY CCD with 650TVL of resolution and 24 infrared LEDs providing infrared capability up to 65 feet. The camera’s size and packaging allow it to be easily and discretely installed. Its rich color, high definition, stability and resistance to jamming make it attractive for CCTV security applications. -
Page 3: Unpacking And Handling
Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. If equipment appears to be damaged or defective please contact your distributor or SecurityTronix at 1-610-429-1511 for assistance. -
Page 4: Wiring Connections
4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. Adjust the lens direction according to the required surveillance area and environment. - Page 5 v1.0 9/16/13...
-
Page 6: Troubleshooting
(ii) ensure the cables are correctly connected and/or the cables are of the correct impedance. e. Other interference may require a SecurityTronix ground loop isolation filter. Additional troubleshooting assistance can be found on-line at www.securitytronix.com in addition to support from SecurityTronix sales engineers at 1-610-429-1511.
