Summary of Contents for ARJAY ENGINEERING 4600-RMS
- Page 1 4600-RMS User Manual Arjay Engineering 2851 Brighton Road Oakville, Canada, L6H6C9 Phone: ++1 (905) 829-2418 Fax: ++1 (905) 829-4701 www.arjayeng.com arjay@arjayeng.com...
-
Page 2: Table Of Contents
Operation of this equipment in a residential area is likely to cause interference in which case the user, at his own expense, will be required to take whatever measures necessary to correct the interference. Arjay Engineering 4600-RMS User Manual Rev 1.1... -
Page 3: Introduction

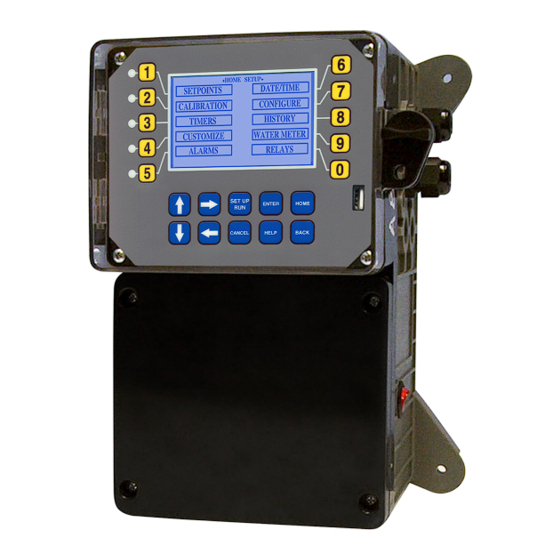

Introduction The 4600-RMS microprocessor based controllers are designed to provide a wide range of remote monitoring functions. The controller is programmed through a front panel keypad or via the internet through WebAdvantage and can be configured to provide customized remote monitoring for your application. Your particular unit’s functions can be determined by comparing the units model number to the Model Numbering table listed below. -
Page 4: Installation
Electrical Wiring The 4600-RMS monitor has an internal regulated fused power supply that will operate off of 90 to 250 VAC at 47 to 63 Hz on the incoming wiring. Each output relay is individually protected with a replaceable fuse. Relay outputs will equal incoming line voltage. - Page 5 Relay Card Wiring Motherboard Connections System Card Connections N.O. Arjay Engineering 4600-RMS User Manual Rev 1.1...
- Page 6 4-20mA Input Card Wiring The 4-20mA input card requires that the external device sending the 4-20mA input signal(s) supply the power for the loop. The external power source must not exceed 24 volts DC. Arjay Engineering 4600-RMS User Manual Rev 1.1...
-
Page 7: Front Panel Description
The default is the RELAY status menu, but this can be changed by navigating to the desired screen and pressing the HELP button. Follow the on-screen instructions to set the new hot key location. Arjay Engineering 4600-RMS User Manual Rev 1.1... -
Page 8: System Operation Overview
IV. System Operation Overview Operation 4600-RMS controllers have two modes of operation, RUN and SET-UP. - This mode is for normal operation. In the RUN mode the display will show each system’s parameters. If an alarm is present, the ALARM box will flash how many alarms are activated. No settings may be entered or changed in the RUN mode. - Page 9 OPEN or CLOSED as the alarm polarity. If ALARM NOTIFICATION DIGITAL 1 set for CLOSED, the input will be in alarm when it sees DIGITAL 2 a closed contact. DIGITAL 1 = DISPLAY DIGITAL 3 DIGITAL 4 DIGITAL 5 Arjay Engineering 4600-RMS User Manual Rev 1.1...
- Page 10 FACTORY DEFAULT - If the 20mA or 4mA calibration has been incorrectly set (not at 4 or 20) this will reset the settings back to a factory value for 4 and 20. Arjay Engineering 4600-RMS User Manual Rev 1.1...
- Page 11 >RUN SCREEN< RUN screen. MAIN SCREEN SCREENS SHOWN - Pick if the mA input & Aux Flow SCREENS SHOWN screens are scrolled. CYCLE TIME CYCLE TIME - The amount of time between screen scrolls. Arjay Engineering 4600-RMS User Manual Rev 1.1...
- Page 12 USER PASSWORD - The user password allows the ADMIN PASSWORD user to access HOME menus that are made available USER PASSWORD in USER SET UP. USER SET UP Arjay Engineering 4600-RMS User Manual Rev 1.1...
- Page 13 Note: Some choices may not be available if DHCP or WIFI HTTP LOCAL are disabled in previous NETWORK menu. System Information System information will identify the version of firmware installed in the controller along with the controller’s serial number. Arjay Engineering 4600-RMS User Manual Rev 1.1...
- Page 14 Each individual notepad item’s manually 8 Entries entered entries are stored in the unit’s history and can be reviewed in log or graph form after 4 or more GRAPH values have been entered. 517.2 Hrs to Alarm Arjay Engineering 4600-RMS User Manual Rev 1.1...
-
Page 15: Webadvantage Setup
• Has your account admin added the device and linked it to your USER ID? _____ Yes, if ‘No’ proceed to page 19. Complete Congratulations! You are now ready to go online WebAdvantage with WebAdvantage. https://webadvantage.online/ Manual Arjay Engineering 4600-RMS User Manual Rev 1.1... - Page 16 Fax: 918-686-6212 Step 3: After completing form click SAVE to Phone: 918-686-6211 create ID. Email: support@advantagecontrols.com Note: The email address you add will be your Note: Please allow 24 hours for processing. USER ID. Arjay Engineering 4600-RMS User Manual Rev 1.1...
- Page 17 Step 2: Choose Administration at top of page. Step 3: Then choose Manage Devices. Step 4: Enter the device’s Name and Serial Number. The remaining fields are optional. Click SAVE to submit. Arjay Engineering 4600-RMS User Manual Rev 1.1...
-
Page 18: Usb Functions
Push the SET UP RUN button to get this screen. Sample Log Data “log.txt” files From here push CONFIGURE (Button 7) to go to the next screen. To change formats, see Step 2. Arjay Engineering 4600-RMS User Manual Rev 1.1... - Page 19 USB. peat Step 1 from section Exporting Log Data. Wait 20-30 seconds to power back on and reinstall the USB after the RUN screen appears and load the firmware a second time. Arjay Engineering 4600-RMS User Manual Rev 1.1...
- Page 20 XS you are cloning has current firm- Step 1: ware. With the controlller powered up, plug the USB drive into the XS USB port. The USB DRIVE DETECTED pop-up window will appear. Arjay Engineering 4600-RMS User Manual Rev 1.1...
-
Page 21: Troubleshooting
VIII. Troubleshooting The 4600-RMS monitor is designed for many years of trouble-free operation. Should a problem occur, refer to the following chart to help identify the problem. If replacement is required, follow the procedures listed in the Warranty and Factory Service portion of this manual.
