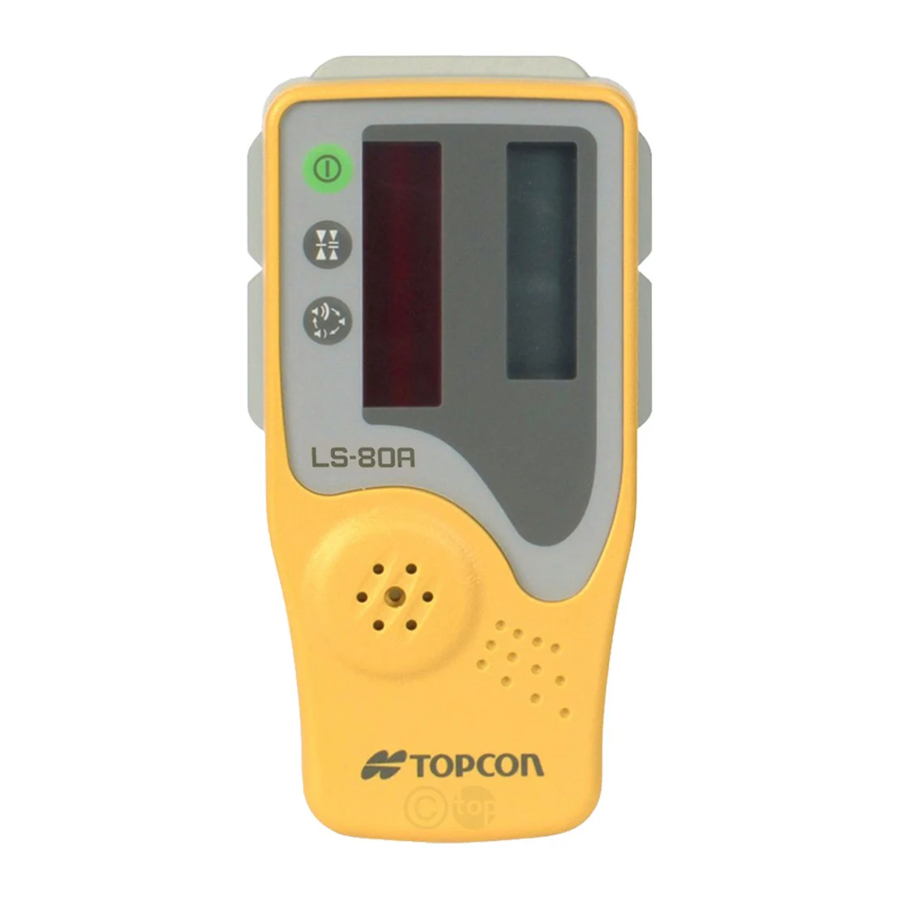

Topcon LS-80A, LS-80B, LS-80G - Level Sensor Manual

NOMENCLATURE

Detective precision switch
Two leveling precision options are available, normal precision and high precision. By pressing this switch, the precision options are switched alternately. Confirm the precision choice by the indicator. (Normal precision is set when turning on the power switch.)

Indicator
Also located on the back side

DISPLAY

Height alert warning of rotating laser *1
A flash and a buzzer sound signifies that the height alert function of rotating laser is operating.
Level sensor can detect the signal of height alert warning of the rotating laser.
(This function is not usable to the rotating laser which does not have the height alert and the function to output alarm signal.)

Rotating laser battery warning *2
A flash shows that the rotating laser power is low.
The level sensor can detect the rotating laser battery warning.
(This function is not usable to the rotating laser which does not have the function to output alarm signal.)

Battery remaining display
Indicates the battery remaining of level sensor as follows.

Note:The warning displays *1 and *2 are the functions that the level sensor detects alarm signal from the rotating laser. The level sensor can be canceled the alarm detection from the rotating laser.
To be canceled the detection; Press the power switch while pressing the buzzer sound switch when powering on.

AUTO-CUT OFF FUNCTION

The power will be turned off automatically after detecting no laser beam for more than approx. 30 minutes. (To turn on the level sensor, press the power switch again.)
*1, 2 For more information about the warning displays of above *1 and *2, refer to instruction manual of each rotating laser.

REPLACING BATTERY

1. Keep pushing the battery cover in 1 direction, and then try to slide the cover in 2 direction. The cover does not move but it will be open.
2. Take out the battery and place a new one into the battery box.
3. Press the lid down and click to close.

DETECTIVE RANGE

EXAMPLE OPERATIONAL

SPECIFICATIONS

Detective range: 50mm (2.0 in)

Detective precision:
High precision: ±1mm (±0.04 in)
Normal precision: ±2mm (±0.08 in)

Detective beam indication:
Liquid crystal: Both sides (LS-80A/G)
Front side only (LS-80B)
Buzzer (LS-80A/B/G)

Power source:
2×AA size dry cell batteries
*Batteries included in the package are to confirm the initial operation.
Please replace the batteries provided with new batteries as soon as possible.

Voltage: DC 3V

The time for auto-cut off:
Approx. 30 min.

Waterproof property / dust resistance:
JIS protection grade IP66

Operating temperature:
–20°C to 50°C (–4°F to +122°F)

Continuous operating time:
Alkaline manganese dry batteries Approx. 120hours

Dimensions:
146 (l) × 76 (w) × 26 (h) mm
(5.7 (l) × 2.9 (w) × 1.0 (h) in)

Weight:
0.19 kg (0.41 lbs)
(including dry batteries)

About measuring range, refer to instruction manual of each rotating laser.
