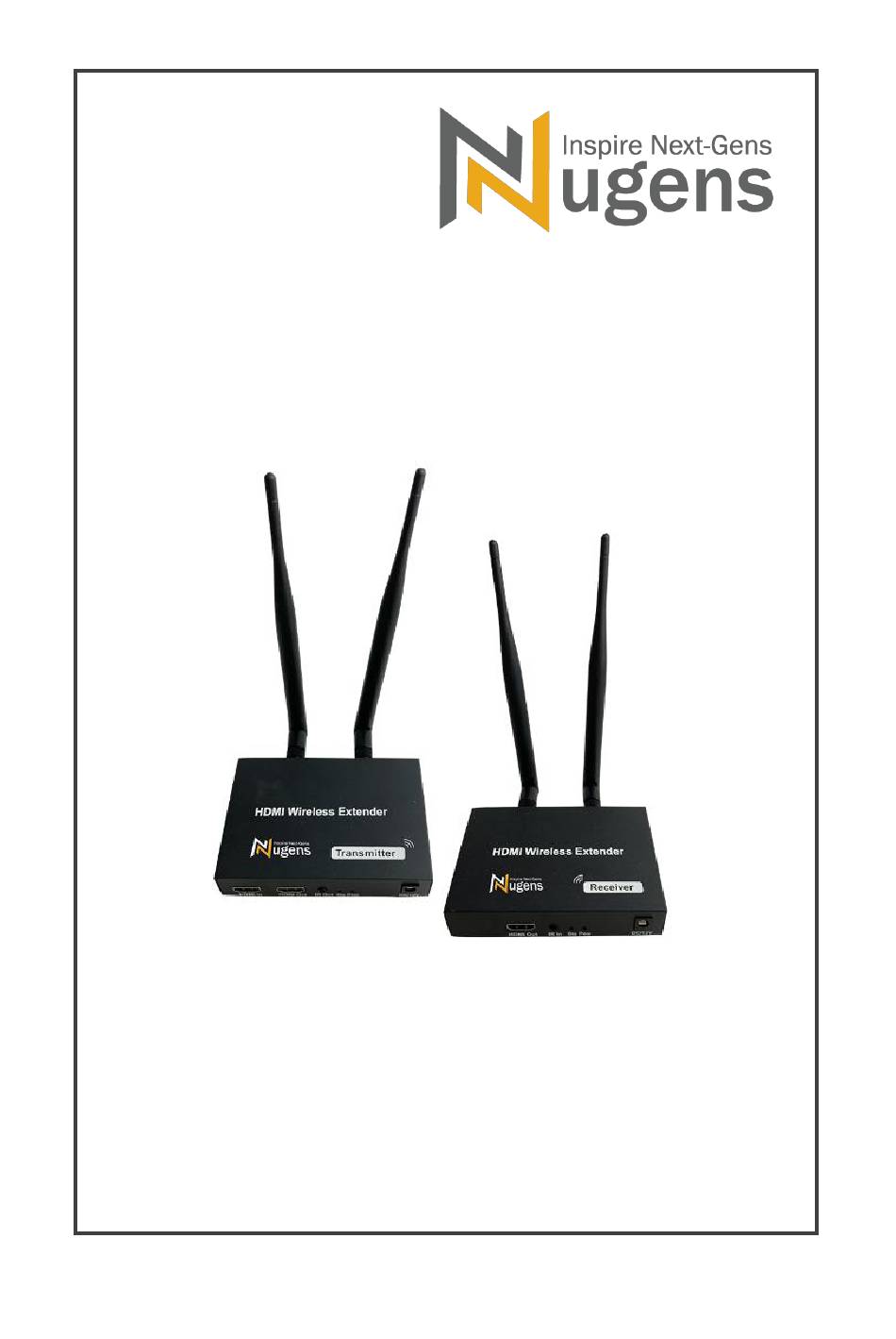

- Page 1 HDMI Wireless Extender Quick Installation Guide Model: NW-200TR - 1 -...
-
Page 2: Warnings And Precautions
▼ Disclaimer • The specifications and information contained in this manual are for reference only, and the content and information are subject to change without prior notice. • If other product or company names appear in the content of the manual, they are only used to describe the product description, and there is no intention of infringement. - Page 3 Overview [ Appearance ] ① HDMI Input ② HDMI Output ③ Infrared Output ④ Status Indicator ⑤ Power Indicator ⑥ Power DC12V ⑦ HDMI Output ⑧ Infrared Input ⑨ Status Light ⑩ Power Indicator ⑪ Power In DC12V ⑫ Antenna Connector ⑬...
- Page 4 [ Specification ] Video HDMI/HDCP HDMI V1.4 / HDCP V1.2 Compression format H.264 Maximum pixel clock 165MHz Maximum data rate 6.75Gbps Resolution 1920X1080@60Hz (Max.) FHD Connector HDMI Type-A Impedance 100Ω When 1920 x 1080 @ 60Hz, <3m Recommended HDMI Max. in/out range Infrared Interface...
-
Page 5: Transmitter Connection
Instructions Thank you for purchasing the Nugens NW-200TR HDMI Wireless Extender. • This product can connect up to 4 receivers with 1 transmitter, and a total can be displayed up to 4 displays. • The transmitter and receiver are paired right out of the factory; a set of plug-and-play devices. - Page 6 Infrared booster Transmitter/Receiver Connection Connect the IR booster transmitter to the IR-Out port of the HDMI transmitter, and the other end to the IR receiver of the player (please refer to the player's user manual for the location of the IR receiver); The infrared booster receiver is connected to the IR-In port of the HDMI receiver, and the other end is fixed in a position where the IR controller is visible.
-
Page 7: Frequently Asked Questions
Frequently Asked Questions Problems Solutions ⚫ Make sure the power transformer is connected correctly. The power light is off ⚫ Make sure the power supply is not interrupted. The display shows Check if the transmitter is turned on. ⚫ "Searching..." for a ⚫... - Page 8 Declaration of the Presence Condition of the Restricted Substances Marking - 8 -...
-
Page 9: Warranty Card
Warranty Card Official website: https://www.nugenstech.com Email: sales@nugenstech.com - 9 -...
