Summary of Contents for P1 P3500PWA

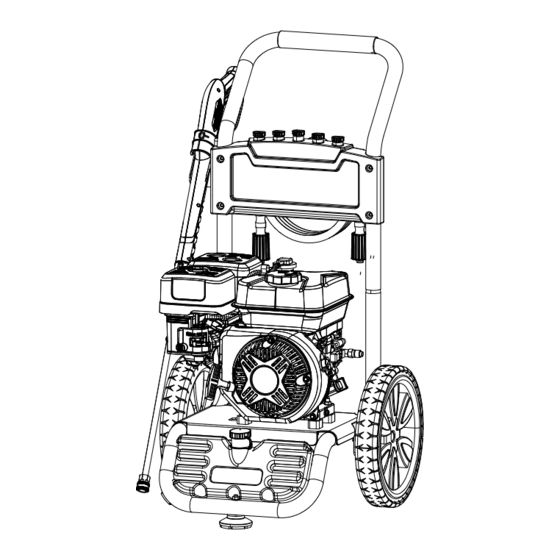

- Page 1 P3500PWA FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction .................................... 3 Safety Rules ..................................4 Safety Symbols ................................4 Safety Instructions ..............................4-6 Pressure Washer Features ..............................7 Pressure Washer Parts Assembly ............................8 Assembly ....................................9-13 Packing List ................................9 Unpacking ................................. 9 Attaching Foot Assembly ............................10 Install Handle. -
Page 3: Introduction
INTRODUCTION Thank you for purchasing this pressure washer. When operating and maintaining this product as instructed in this manual, your pressure washer will give you many years of reliable service. Product Specifications: This high end residential use system features a 212cc engine, no flat foam filled tires, 25’ high pressure hose, and 4 quick- connect nozzles. -
Page 4: Safety Rules
SAFETY RULES Safety Symbols Indicates a potentially hazardous WARNING! situation which could result in serious injury or death if not avoided. Indicates a potentially hazardous CAUTION! situation which could result in damage to equipment or property. Slippery surface Risk of explosion Risk of electric shock Hot surface Eye protection... - Page 5 SAFETY RULES To reduce the risk of injection, injury or possible amputation, never direct water pressure WARNING! towards people or pets. • The high pressure stream of water produced can cut through skin and underlying tissue. Never squeeze the trigger or point the spray gun at other people, animals, plants, or fragile objects such as glass, even if the engine is stopped.
- Page 6 SAFETY RULES WARNING! Stay alert and use common sense. Do not operate this unit if you are under the influence of alcohol, drugs, medication or you feel tired. Pull cord recoils rapidly and pulls arm towards engine faster than you can let go which WARNING! could result in injury.
-
Page 7: Pressure Washer Features
PRESSURE WASHER FEATURES H - Engine On/Off Switch A - 25’ High Pressure Hose I - Oil Fill and Dipstick B - Fuel Tank and cap J - No Flat Foam Filled Tires C - Choke K - Spray Gun D - Fuel Valve Lever L - Locking Trigger E - Siphon Tube with Strainer... -
Page 8: Pressure Washer Parts Assembly
PRESSURE WASHER PARTS ASSEMBLY... -
Page 9: Assembly
ASSEMBLY Packing List • Pressure washer • Operator’s manual • Spray gun • Extension wand with quick-connect fitting • High pressure hose Spray nozzles (5) - 0° , 15°, 25°, 40° and soap nozzle • • Spray gun hook (upper) •... -
Page 10: Attaching Foot Assembly
ASSEMBLY Attaching Foot Assembly (See fig 1) • Parts needed - 1 foot, 1 M8 lock nuts. • Raise or tilt pressure washer so you can line up foot with the hole located at the centre of the frame. • Align the rubber foot with the hole in the frame where the foot is to be located. -
Page 11: Attaching Spray Gun
ASSEMBLY Attaching the Spray Gun (See fig 4 & 5) • Screw the spray wand and the trigger handle together until they are secure. • nut on by turning clockwise until it is hand tight. FIG 4 FIG 5... -
Page 12: Adding Engine Oil And Fuel
ASSEMBLY Adding / Checking Engine Oil (See fig 6) • Place pressure washer on a level surface. • Carefully add 600 ml of engine oil (SAE30 or 15W40) to empty reservoir until oil reaches • • Be sure to replace both dipsticks before attempting to start the engine. •... -
Page 13: Connecting Garden Hose To Pressure Washer
ASSEMBLY Connecting Garden Hose to Pressure Washer (See fig 8) • • Inspect inlet screen and remove any debris. • Connect hose to water inlet and tighten by hand. There must be a minimum of 10 feet of unrestricted hose between pressure washer and faucet or shut off valve. -
Page 14: Operation
OPERATION Pre-Operation Check List • Read and understand this operator manual in its entirety before operating pressure washer. • Check oil level and add oil to the proper level if low. • Check fuel level and add fuel if needed. •... -
Page 15: Stopping
OPERATION Pull cord recoils rapidly and pulls arm towards engine faster than you can let go which WARNING! could result in injury. • Always relieve pressure from spray gun before pulling starter cord, including every failed attempt to start engine. •... -
Page 16: Using Spray Nozzle
OPERATION Using Spray Nozzle (See fig 15) • To connect or disconnect spray tip, pull back on the quick-connect collar. Insert or remove spray tip then release collar. • When spray tip is connected, pull on the spray tip to make sure it is secured. •... -
Page 17: Maintenance
MAINTENANCE Regular maintenance will extend the life of this pressure washer and improve its performance. The warranty does not cover items that result from operator negligence, misuse, or abuse. To receive full value from the warranty, operator must maintain the pressure washer as instructed in this manual, including proper storage. Before inspecting or servicing this machine, make sure the engine is off and no parts are WARNING! moving. -
Page 18: Changing Oil
MAINTENANCE Changing Engine Oil Engine oil will drain better if the engine is still warm, but not hot. • Shut off engine. • Clean the area around the oil fill cap/dipstick to keep out debris then remove oil fill cap/dipstick. •... -
Page 19: Engine Maintenance
MAINTENANCE Checking Spark Plug • Disconnect the spark plug wire from the spark plug. • Before removing the spark plug, clean the area around its base to prevent debris from entering the engine. • Clean carbon deposits off the electrode with a wire brush. •... -
Page 20: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Engine does not start 1. Out of fuel 1. Fill fuel tank 2. Engine oil low 2. Add engine oil 3. Spark plug wire disconnected 3. Connect spark plug wire from spark plug 4. Replace spark plug 4. -
Page 21: Specifications
SPECIFICATIONS Max. Pressure 2990 PSI Max. Flow 8.7L/m Nozzles 0°,15°, 25°, 40°, Soap Nozzle Engine Type HYUNDAI 4-Stroke Displacement 212cc Fuel Tank Capacity 3.5L Fuel Type Unleaded Petrol Oil Capacity 600ml SAE30 or 15W40 Engine Oil Oil Type Measured Sound Level 97.2dB(A) 99dB(A) Guaranteed Sound Level... -
Page 22: Useful Information
USEFUL INFORMATION Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on our website: www.p1pe.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. -
Page 23: Recycling & Disposal
RECYCLING & DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine, you must take it to your local Civic Amenity Site. -
Page 24: Declaration Of Conformity
Declaration Of Conformity 212cc... - Page 28 P1 PE - Position One Power Equipment Isaac Way, Pembroke Dock, Pembrokeshire, SA724RW www.p1pe.co.uk...
