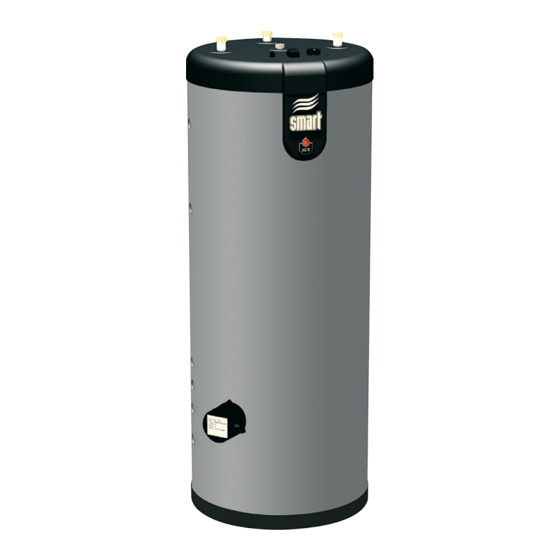

Summary of Contents for SmartLine SLME 120

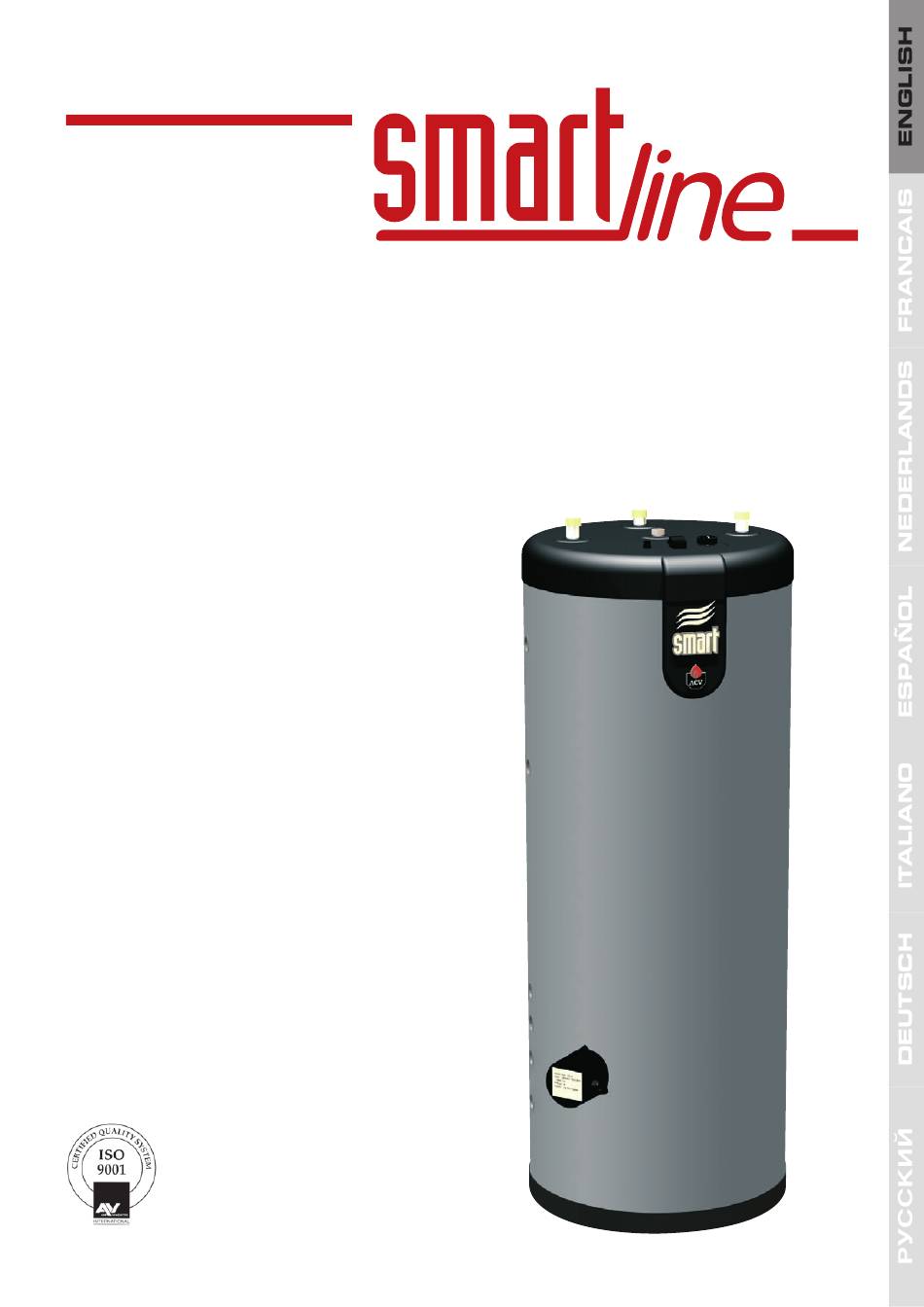

- Page 1 Installation, Operating and Servicing Instructions SLME 120 / 200 / 300 / 400 / 600 / 800 EN • 1 661Y0500.E...
-
Page 2: Table Of Contents
INDEX Warning Who should read these instructions Symbols Recommendations Applicable standards Warnings Packing introduction Description of function Application examples Description of operation technical characteristics Tank cheracteristics Domestic Hot Water performances installation Dimensions Installation recommendation Wiring diagram Central heating connections Domestic hot water connections commissioning Filling the tank What to check start-up? -
Page 3: Warning
WARNINGS Who should read these instructions These instructions should be read by: • It is important to switch the tank OFF before carrying out - the specifying engineer any work. - the installer - the user • There are no user accessible parts inside the tank casing. - the service engineer symbols aPPlicable standards... -
Page 4: Introduction
INTRoDuCTIoN descriPtion of function “Tank-in-Tank” system Outer tank “Tank-in-Tank” is a heat exchanger with a built-in accumulator, made The outer tank containing water from the primary circuit arriving up of two concentric tanks: the inner tank contains domestic water from the boiler, is made of carbon steel STW 22. to be reheated (secondary) and the outer tank contains the heating fluid (primary) which circulates between the two tanks and transfers Thermal Insulation... -
Page 5: Description Of Operation
INTRoDuCTIoN descriPtion of oPeration Operating cycle The thermostat is triggered and starts up the pump which circulates the heating water. This water circulates around the inside tank and heats up the domestic water. When the required temperature is reached, the thermostat stops the primary circulating pump. Cold Water Domestic hot water Heating fluid... -
Page 6: Technical Characteristics
TECHNICAL CHARACTERISTICS SLME SLME SLME SLME SLME SLME Tank characteristics Total capacity Primary capacity 95,7 Sanitary capacity Coil Capacity Primary fluid flow rate 2100 3000 3000 3000 3000 3000 Coil fluid flow rate 2300 3000 3000 3000 3000 3000 Primary pressure drop mbar Coil pressure drop mbar... -
Page 7: Installation
Wiring diagram This hot water tank should not be installed where it will be exposed [SLME 120 - 200 - 300 - 400 - 600] to outside weather conditions. Choose the most appropriate location according to the position of 1. -
Page 8: Central Heating Connections
PiPe DiMenSionS Ø optional electrical models Ø heating connection Ø coil connection heating element connection slme 120 Ø 3/4” [F] Ø 3/4” [F] Ø 1”1/2 [F] slme 200 Ø 1” [F] Ø 1” [M] Ø 1”1/2 [F] slme 300 Ø... -
Page 9: Domestic Hot Water Connections
PiPe DiMenSionS 5. Safety valve 11. Earth connection 6. Drain cock cold / hot water models auxiliary connexion connections slme 120 Ø 3/4” [M] Ø 3/4” [M] slme 200 Ø 3/4” [M] Ø 3/4” [F] slme 300 Ø 3/4” [M] Ø... -
Page 10: Commissioning
CommISSIoNING What to check start-uP? Before pressurising the central heating tank (primary) you should first pressurise the domestic hot water • Safety valves (domestic hot water) and (central heating) tank (secondary). correctly installed and discharge connected to the drains. Both the domestic hot water tank and the central •... -
Page 11: Maintenance
mAINTENANCE Periodical checks by the user Central heating tank • Check the pressure of the boiler’s pressure gauge: it should To empty off the primary circuit: be between 0.5 and 1.5 bar. • Carry out a monthly visual inspection of the valves, 1. - Page 12 SLME SLME 800 120 - 200 - 300 - 400 - 600 497b4017 55445006 51700077 39438047 497b0017 51703008 SLME SLME SLME SLME SLME N° 497B5004 497B5010 497B5012 497B5012 497B5007 497B0005 497B0005 497B0006 497B0027 497B0007 39438039 39438027 39438027 39438047 39438046 497B5016 497B5015 497B5000 497B5000...
