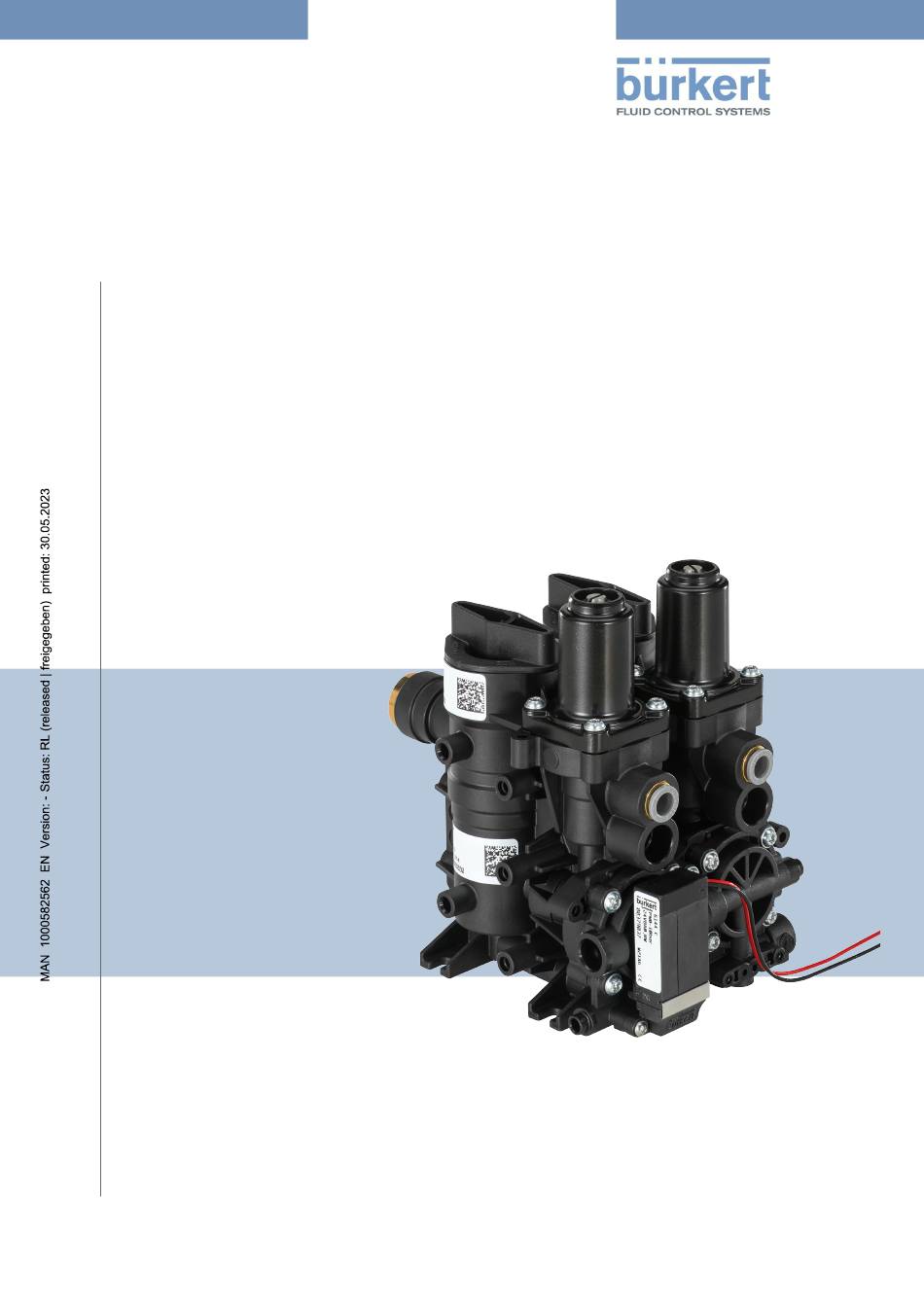

Page 1 Type 5110 Media supply unit Operating Instructions...
Page 2 We reserve the right to make technical changes without notice. © Bürkert Werke GmbH & Co. KG, 2023 Operating Instructions 2305/01_EN_ 20001200 / Original DE...
Page 3: Table Of Contents
Type 5110 Table of Contents TABLE OF CONTENTS 1 About this document.......................... 4 Manufacturer ............................ 4 Used symbols ........................... 4 Terms and abbreviations ........................ 5 2 Safety instructions............................ 6 Intended use ............................. 6 Safety.............................. 6 3 Product description............................ 9 Product structure.......................... 10 Type label (example)........................ 13 Functional diagram .........................
Page 4: About This Document
Before starting any work on the product, read and observe the respective sections of the document. Keep the document available for reference and give it to the next user. Contact the Bürkert sales office for any questions. Further information concerning the product at country.burkert.com. Manufacturer Bürkert Fluid Control Systems Christian-Bürkert-Str.
Page 5: Terms And Abbreviations
Type 5110 About this document Terms and abbreviations The terms and abbreviations are used in this document to refer to following definitions. Media supply unit Device MSU air/water MSU air MSU water...
Page 6: Safety Instructions
Type 5110 Safety instructions SAFETY INSTRUCTIONS Intended use The device is designed for the filtration, control and provision of neutral liquids and gases. The permitted media are listed in the Technical data [} 17] chapter. Prerequisites for safe and trouble-free operation are correct proper transportation, storage, installation, start-up, operation and maintenance.
Page 7 Type 5110 Safety instructions Do not make any changes to the device. Do not mechanically load the device. Observe the operating instructions of the device or component used. Only use the devices in conjunction with approved devices or components. Spare parts and accessories that do not meet Bürkert’s requirements may impair the operational safety of the device and cause accidents.
Page 8 Type 5110 Safety instructions Ensure that the device or system cannot be switched on unintentionally. Only start the process in a controlled manner following disruptions. Observe sequence: 1. Apply supply voltage or pneumatic supply. 2. Charge the device with medium.
Page 9: Product Description
Type 5110 Product description PRODUCT DESCRIPTION The device is intended for the filtration, control and provision of neutral liquids and gases. The device con- sists of the following main components or functional units: Filter for filtering compressed air and/or water...
Page 10: Product Structure
Type 5110 Product description Product structure You can find information on possible device configurations and device options in the data sheet for Type 5110 at country.burkert.com Fig. 1: MSU air/water 1 Water pressure controller 2 Compressed air pressure controller 3 Controlled compressed air outlet...
Page 11 Type 5110 Product description Fig. 2: MSU air 1 Compressed air pressure controller 2 Controlled compressed air outlet 3 Uncontrolled compressed air outlet (op- 4 Pilot valve tional) 5 Compressed air shut-off valve 6 Compressed air inlet 7 Compressed air filter...
Page 12 Type 5110 Product description Fig. 3: MSU water 1 Water pressure controller 2 Controlled water outlet 3 Uncontrolled water outlet (optional) 4 Pilot valve 5 Water shut-off valve 6 Pilot valve control medium inlet 7 Water inlet 8 Water filter...
Page 13: Type Label (Example)
Type 5110 Product description Type label (example) 1 Type 2 Variant 3 Data-Matrix-Code: 4 Input pressure Article number, serial number 5 Output pressure 6 Manufacture code 7 Serial number 8 Article number Functional diagram Fig. 4: Functional diagram of standard configuration for MSU air/water...
Page 14 Type 5110 Product description Mano1 Mano2 RSV1 RSV2 Fig. 5: Function diagram of MSU air/water with additional options...
Page 15: Components
Water closed-loop control (1.5...3 bar) Tab. 1: Description of items in functional diagram You can find detailed information on the integrated components by entering the type number of the components on our home page country.burkert.com. 3.3.2 List of connections The items in the following table concern the Functional diagram [} 13].
Page 16 Type 5110 Product description Electrical connections Item Connection type Function V3, V4 (optional) Strand 300 mm AWG 24 Pilot valve V1 and V2 Rectangular plug 5.08 mm (optional) Observe tightening torque of max. 5 Nm for inlet E1 and E2 connection.
Page 17: Technical Data
The control medium input pressure must always be higher than the MSU water process medium in- put pressure. You can find detailed information on the integrated components by entering the type number of the components on our home page country.burkert.com.
Page 18: Mechanical Data
Type 5110 Technical data Mechanical data The information concerns the standard configuration for an MSU air/water Dimensions approx. 84 x 112 x 117 mm (width x depth x height) Weight 0.425 kg Materials with media contact Housing parts PBT GF30 Filter Poroplast UHMW-PE...
Page 19: Assembly And Installation
You can find information about the fastening kit for side installation in the data sheet for the Type 5110 at the country.burkert.com. After fastening Clean any contamination from the pipes and flange connections.
Page 20 Type 5110 Assembly and installation 4x screw boss for thread-forming screws Ø4 Fig. 6: Inlet side/front installation drawing 4x circular plug-in connectors with push-in connection 6/4 Fig. 7: Outlet side/rear installation drawing...
Page 21 Type 5110 Assembly and installation 111,25 57,1 4x screw boss for thread-forming screws Ø4 Fig. 8: View from left installation drawing 64,4 3x screw boss for thread-forming screws Ø4 Fig. 9: View from right installation drawing...
Page 22 Type 5110 Assembly and installation 44,9 30,15 Fig. 10: View from below installation drawing...
Page 23: Commissioning
Type 5110 Commissioning COMMISSIONING Risk of injury or damage to property from working on the device or system. Before working on the device or system, read Safety instructions [} 6] chapter. Before start-up Before start-up, check that the system has been correctly installed, and check the applied pressures and...
Page 24: Maintenance
Type 5110 Maintenance MAINTENANCE Risk of injury or damage to property from working on the device or system. Before working on the device or system, read Safety instructions [} 6] chapter. Maintenance work CAUTION! Germ load due to improper maintenance If the filters are not regularly changed, contamination may build up. This may result in a load of germs that are harmful to health.
Page 25: Troubleshooting
If leakages occur as a result of wear, replace the system with a new one. You can find detailed information on maintenance of the integrated components by entering the type number of the components on our home page country.burkert.com. You can find the available spare parts in the chapter on Spare parts [} 26]...
Page 26: Spare Parts
Risk of injury or damage to property from working on the device or system. Before working on the device or system, read Safety instructions [} 6] chapter. RI no. Spare part Order number Air filter 60006603 Water filter 60005045 Tab. 2: Spare parts for Type 5110 media supply unit...
Page 27: Disassembly
Type 5110 Disassembly DISASSEMBLY Risk of injury or damage to property from working on the device or system. Before working on the device or system, read Safety instructions [} 6] chapter.
Page 28: Logistics
Type 5110 Logistics LOGISTICS 10.1 Transport and storage Protect the device against moisture and dirt in the original packaging during transportation and storage. Avoid UV radiation and direct sunlight. Protect connections from damage with protective caps. Observe permitted storage temperature.
