1. USER MANUAL LCD C900 USB

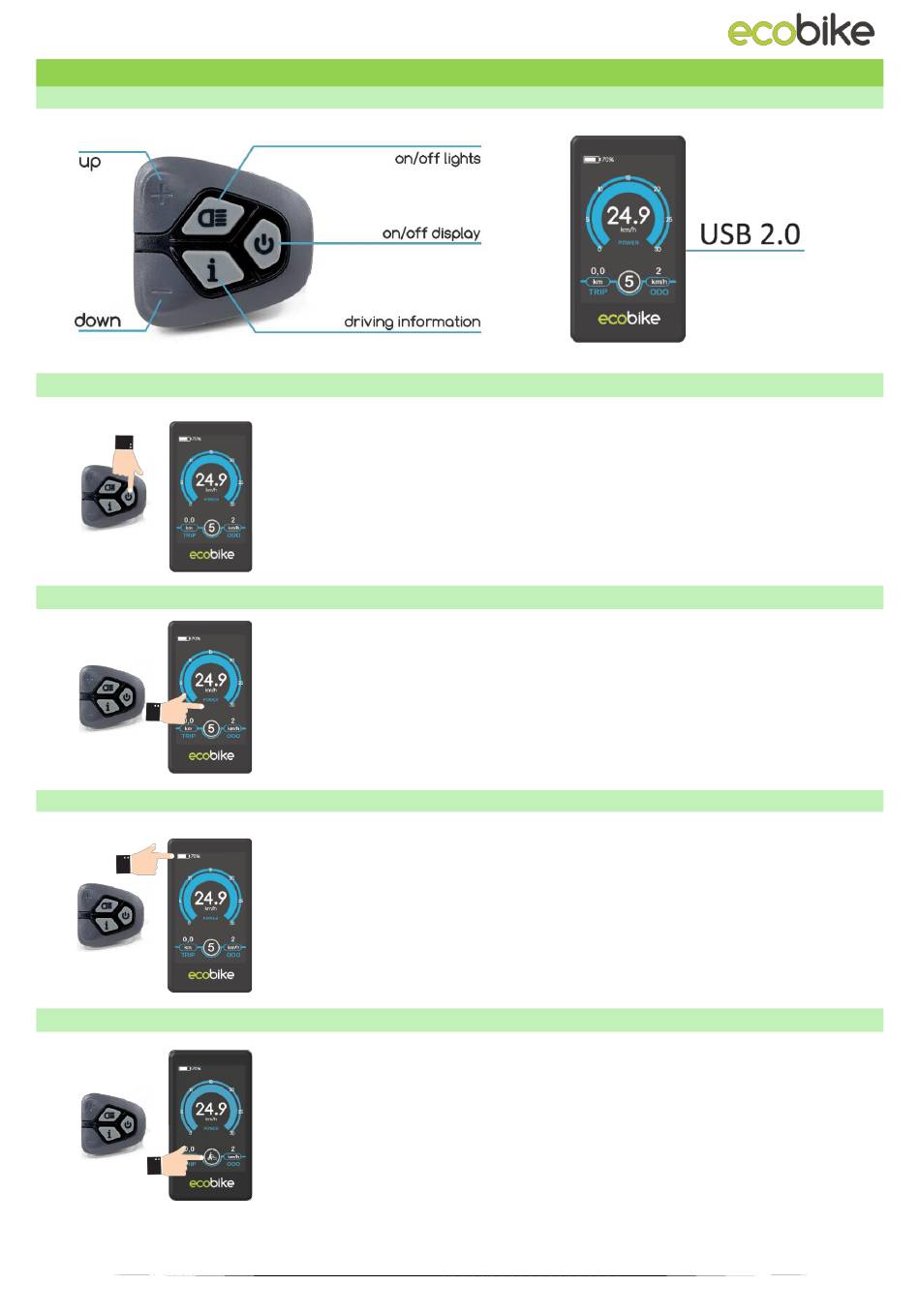

1.1. REMOTE AND DISPLAY APPEARANCE

1.2.

TURNING ON / OFF THE DISPLAY

1.3.

MOTOR POWER INDICATION

1.4. BATTERY SOC INDICATOR

1.5. WALK ASSISTANCE

Press and hold the ON / OFF button for 3 seconds to turn the

LCD on or off.

➢ When the display is off, there is no battery

consumption. The current flow is not more than 2 µA.

➢ The panel will revert to sleep mode when the speed is

5 minutes level 0 km / h.

Indicates the power with which the motor works, when the

entire power bar is displayed, this means that the motor

works at full power. The battery is discharged faster then.

The battery level is indicated by symbol located in the battery

symbol in the upper left corner of the display. Each missed

part of the symbol corresponds to 20% battery charge.

Remember to give more attention to the BMS (voltage), than

to battery indicator.

Press and hold the "MINUS" button to start the motor that will

go at 6km / h without pedaling. The display will show the

icon as in the picture beside. When the user releases the

button, the engine will automatically shut down.
