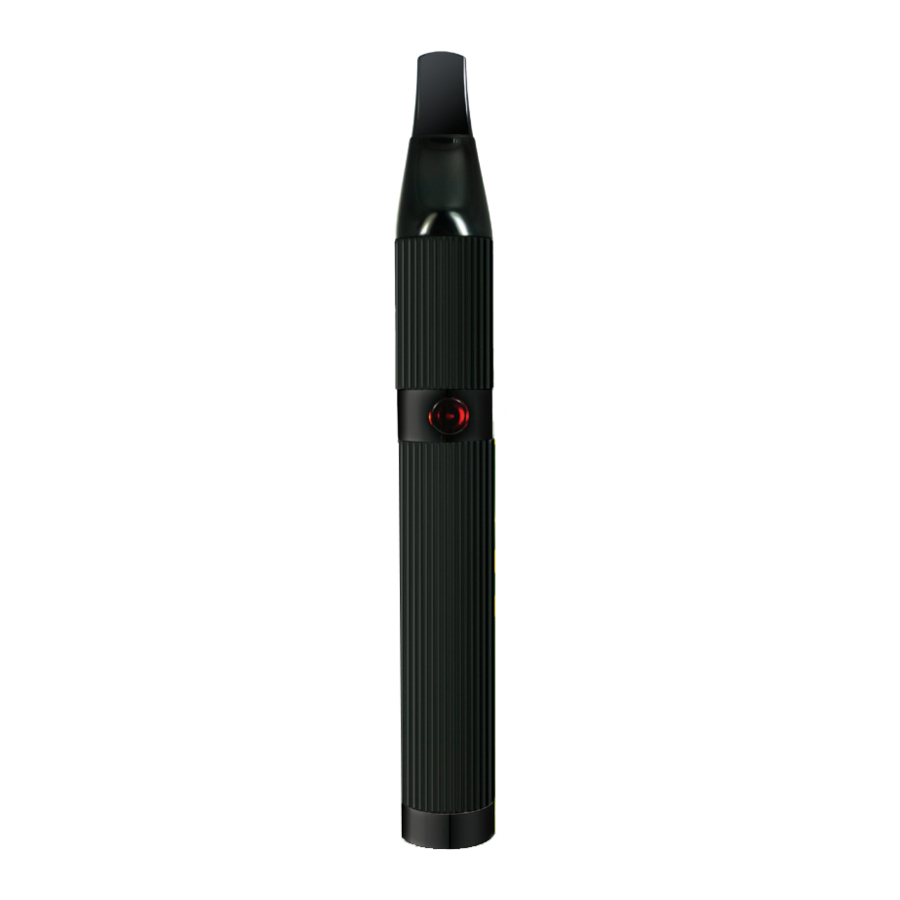

X2O Vapes Shiva - Vaporizer Manual

FEATURES AND FUNCTIONS

• Size: 171mm ( H )*21mm (W); 10.5mm (D)
• Output: 15W-20W
• Battery capacity: 2200mAh
• Capacity of the e-liquid and concentrate container: 0.32ml only is recommended.
• Capacity heating chamber for dry herb: 1.2ml~ 0.2g dry herb.
• Battery voltage: 3.4V
• Resistance: 1.0-1.2ohm
• Material: Stainless steel for the body parts, plastic material for the mouthpiece and PBS material for the insulation out of the chamber

PRODUCT STRUCTURE

1. Mouthpiece
2. Concentrate & E-liquid Heating Cup
3. Heating Chamber: Four airflow holes at the bottom thread to dissipate heat.
4. Power Button: Press ON/OFF button 3 times continuously to activate the device; it will then flash until the set temperature is reached, flashing will stop when the device is ready to be used.
5. Rechargeable Battery 2200mAh:
   Charge directly from the bottom of the device.
6. Indicator lights:
   Fahrenheit: 374F(Green)—410 F(Blue)—446 F(Red)
   Celsius: Green (180C)-Blue (210C)-Red (230C)
7. USB Charging:
   When the indicator light flashes or the vapor production significantly reduces, it is an indication that the battery is running low. The shiva can be charged using the Micro-USB port with your Micro-USB charger. Use a 1 amp charger to charge the shiva.
8. Additional Tools

   1. Micro-USB Charging Cable
   2. Tweezer
   3. Packing Tool
   4. Cleaning Brush

HOW TO USE

1. FILLING THE DEVICE : Unscrew the mouthpiece to place dry herb into the heating chamber; to use concentrate or e-liquid, insert the heating cup into the heating chamber and place contents into heating cup. Screw on the mouthpiece.
2. TURNING ON/OFF THE DEVICE : Turn the device on or off by rapidly pressing the power button three times. The LED light will flicker GREEN while it is heating up. When the light stops flickering and remains green, this signifies the device is ready to use and is at its lowest temperature setting; 374°F. Turn the device off by rapidly pressing the device button three times, light will turn off.
3. CHANGING THE TEMPERATURE : The device has three temperature settings with three corresponding LED colors. After you have turned on your device, the Shiva will automatically be set at 374°F and the LED light will be GREEN. Hold down on the button for three seconds to increase the temperature to 410°F; a BLUE light will flicker until temperature is reached and when heated it will remain blue. To reach the highest setting 446°F, hold down on the button for three seconds and the light will change from BLUE to RED and the red light will flicker until the temperature is reached. After the highest temperature is reached, hold down on the button for three seconds and the light will turn back to GREEN and repeat the cycle. When your desired temperature is reached, you are ready to vape!
4. ADDITIONAL TOOLS : The kit comes with a Packing Tool to condense dry herb down into the chamber. There is also a Cleaning Brush to remove residue from the Heating Chamber. The kit includes a set of Tweezers to remove the Heating Cup from the Heating Chamber. Unscrew the mouthpiece to remove it; clean out any residue that may have fallen into the mouthpiece.

• BEFORE CLEANING, PLEASE INSURE THAT THE DEVICE IS TURNED OFF.

CHARGING

A Micro-USB cable comes packaged with your Shiva kit. The shiva can be charged by plugging your USB cable into a 1 amp USB port. Insert the charger into the bottom of the device.

The first time you charge the device, it is recommended to charge for at least six hours. After the first charge, the device will only take up to three hours to charge each time. The word SHIVA at the bottom of the device will display in red while charging and turn green when the battery is fully charged.

TIPS

1. Do not overload the heating chamber with dry herb.
2. To prevent overheating, turn off the device when it is not in use.
3. If the vapor significantly reduces, rotate the dry herb within the chamber.
4. For best result, grind down dry herb or break by hand.
5. Make sure the chamber and cup are completely empty / cleaned out before refilling.

www.X2OVAPES.com

Customer Service: 1-888-597-6653

Do not use if pregnant, nursing, under-aged or have a health condition. This product may contain nicotine, an addictive chemical known to the State of California to cause birth defects.
