WPM61 WIRELESS
PERSONAL MONITOR SYSTEM

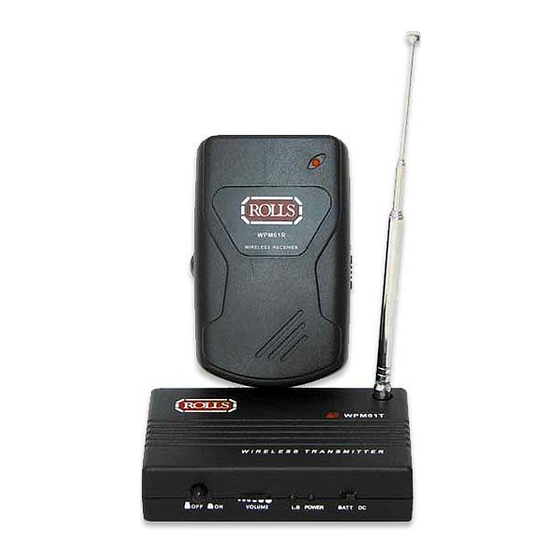

The WPM61 is a compact yet powerful audio wireless system
for efficient in-ear monitoring for musicians and singers, and for
WPM61
assistive listening. The system consists of a transmitter and
body pack receiver. The signal is very stable, even at long
Wireless Personal
ranges. Multiple receivers may be used with a single transmitter.
Monitor System
• High VHF operation
• Crystal-controlled for drift free transmission
• Four channels available
• Musician in-ear monitor
• Assistive Listening
• Language interpretation
• Mobile audio recording
• Beltpack receiver has lots of volume
• 9V Battery operation (optional AC adapter available)
The WPM61 operates on the following frequencies:
216.6525 MHz, 216.0125 MHz, 216.9725 MHz & 216.3325 MHz.
Rolls Corporation

Owners Manual

Salt Lake City, UT
8/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPM61 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rolls WPM61

Summary of Contents for Rolls WPM61

  • Page 1: Owners Manual

    WPM61 WIRELESS PERSONAL MONITOR SYSTEM The WPM61 is a compact yet powerful audio wireless system for efficient in-ear monitoring for musicians and singers, and for WPM61 assistive listening. The system consists of a transmitter and body pack receiver. The signal is very stable, even at long Wireless Personal ranges.
  • Page 2 TRS STEREO, NOT MONO. USING MONO EARPHONES WILL DAMAGE THE RECEIVER. POWER SUPPLY The WPM61 does not include an external power supply. To purchase a Rolls PS27, contact Rolls at (801) 263-9053, or the retailer from which you pur- chased the system.

  • Page 3: Battery Installation

    12 VDC power (Rolls PS27). 6. Audio Input (Labeled AF IN): 1/8" (3.5mm) jack connect to a line level monitor source. 7. External 12 VDC input. Rolls model PS27. 8. Telescope Antenna: Extend fully for best transmission/reception. 9. Battery Compartment: Location for 9V alkaline battery.
  • Page 4 You may wish to set your earphone levels a little higher to compensate for this difference. Test the range of the WPM61 by walking around the stage or area where the receiver will be used. As you walk around the area, listen closely for "drop outs"...
