Summary of Contents for elbag Energietechnik TS-01

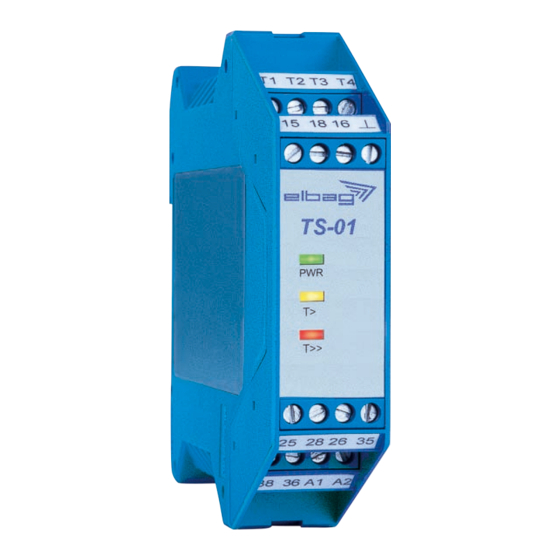

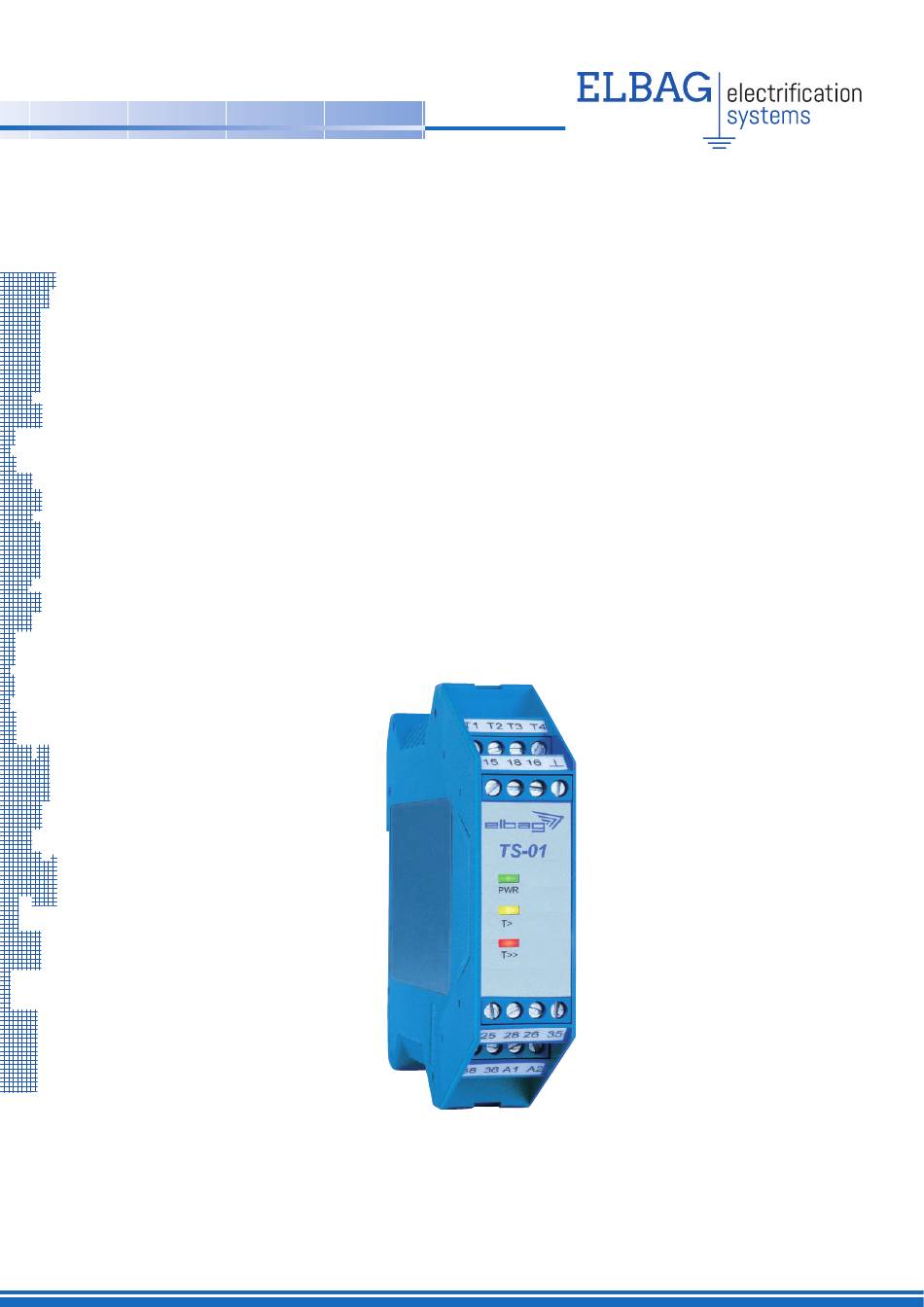

- Page 1 Users manual Temperature Monitoring Unit TS-01 elbag Energietechnik GmbH Brückenstraße 28 · D - 56348 Weisel Telefon +49 (0) 67 74 / 18 - 0 · Telefax +49 (0) 67 74 / 18 128 email: info@elbag.de · Internet: www.elbag.de...
- Page 2 TS-01 Temperature Monitoring Unit ELBAG Energietechnik ____________________________________________________________________________Contents 1 Technical data................1 2 Block diagram................2 3 Technical Description..............3 3.1 General..................3 3.2 "PWR" Measuring Circuit.............3 3.3 "temp >" Measuring Circuit............4 3.4 "temp >>" Measuring Circuit............4 4 Connections...................4 4.1 Inputs ...................4 4.2 Outputs..................4 4.3 Installation Instructions ...............5...
- Page 3 TS-01 Temperature Monitoring Unit ELBAG Energietechnik __________________________________________________________________________________________ 1 Technical data 24V - 270V ±10% DC Power supply: 40V - 270V ±10%, AC 50-60Hz Power input: < 6VA or < 6W PTC thermistor connection 2-wire connection relay closing 3.0 kΩ < R <3.2 kΩ...
- Page 4 TS-01 Temperature Monitoring Unit ELBAG Energietechnik __________________________________________________________________________________________ 2 Block diagram T>> T> ϑ ϑ Relay 1 15 18 16 "T>" T> T>> 25 28 26 35 Relay 2 "T>>" Relay 3 38 36 A1 A2 "on" Power 24 - 270 +/-10% VDC...
- Page 5 3 Technical description 3.1 General The TS-01 temperature control unit is used to monitor the temperature of equipment by means of PTCs in accordance with DIN 44081/82 or DIN VDE 0660 Part 303. Attached is an example of temperature monitoring of a transformer used for energy distribution in the field of medium- and high-voltage systems.
- Page 6 TS-01 Temperature Monitoring Unit ELBAG Energietechnik __________________________________________________________________________________________ 3.3 "temp. >" Measuring Circuit C) is exceeded, Relay 1 If the threshold temperature of the PTC thermistor (f.ex. T1 = 120 picks up and the yellow LED (T >) lights. A changeover contact is available for output (terminals 15, 18, 16).
- Page 7 The system connection is protected against polarity reversal (for AC and DC supply). The TS-01 is without PE connection and only has terminals for L/+ and N/–. A PE conductor however can be connected to the ⊥ terminal for the PTC probes .
