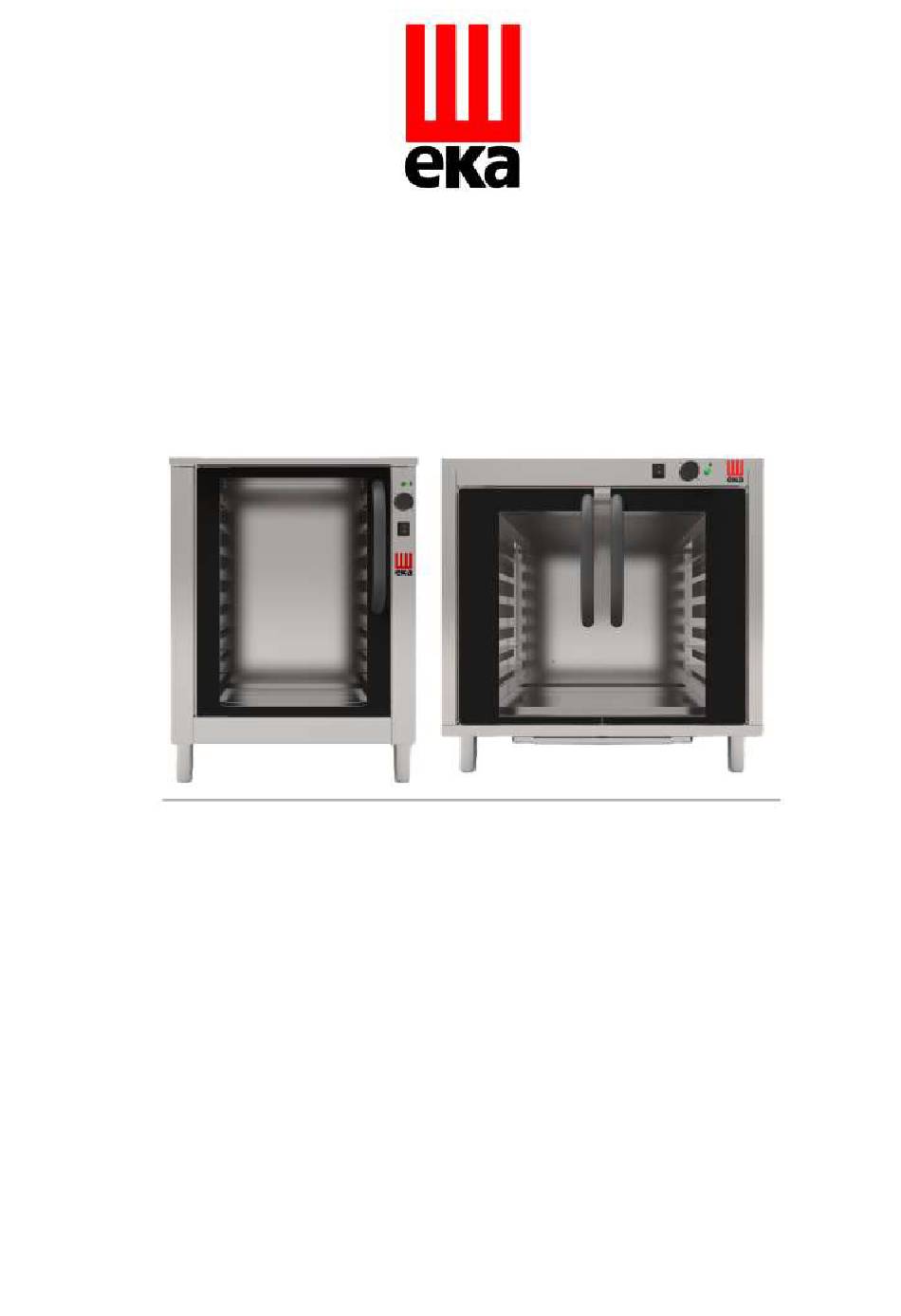

- Page 1 ORIGINAL TRANSLATION OF OPERATING AND MAINTENANCE MANUAL EKL 823 N – EKL 864 N – EKL 864 N R...
- Page 3 Proofers Product purpose Leavening of foodstuffs Model EKL 823 N – EKL 864 N – EKL 864 NR TECNOEKA Srl declares that the above mentioned products comply with all relevant provisions of the following directives: Low Voltage Directive 2014/35/EU Electromagnetic Compatibility Directive 2014/30/EU...
-
Page 4: Table Of Contents
Index 1. Technical service ___________________________________________________ 5 2. General Warnings __________________________________________________ 5 3. Technical specifications ______________________________________________ 5 4. Instructions for the installer __________________________________________ 6 5. Operating Instructions (intended for the User) ___________________________ 7 6. Residual risks (for the user of the equipment)____________________________ 7 7. -
Page 5: Technical Service
1. Technical service A service check once or twice a year helps to extend the life of the appliance and ensures better operation. Ensure that servicing is only carried out by qualified personnel. For any orders for spare parts or for any information about the appliance, always quote the serial number and the model number (data on the "technical data"... -
Page 6: Instructions For The Installer
4. Instructions for the installer The following instructions are intended to enable the qualified installer to carry out installation, adjustment and maintenance work in the most correct manner and in accordance with the regulations in force. All work must be carried out with the appliance disconnected from the power supply. -
Page 7: Operating Instructions (Intended For The User)
Connection to the water supply - The appliance must be supplied with softened drinking water with a hardness between 0.5°F and 3°F. THE USE OF A WATER SOFTENER IS MANDATORY TO REDUCE THE BUILD-UP OF SCALE IN THE TEST CHAMBER. The water pressure must be between 100 and 200 kPa (1.0-2.0 bar). -
Page 8: Clean And Maintain
Control thermostat warning light - The control thermostat warning light goes out when the selected temperature is reached in the test chamber. It will come on again when the thermostat intervenes to re-establish this temperature. 8. Clean and maintain (WARNING: Disconnect the appliance from the power supply before any operation) General cleaning - Cleaning must be carried out when the machine is cold. -
Page 9: Electrical Schematic
11. Electrical schematic 12. Conventional warranty The Tecnoeka product is intended exclusively for use in the food industry and is covered by the guarantee provided for by law (Articles 1490 and following of the Italian Civil Code) for professional users, i.e. users who buy from the distributor with a VAT number. The Tecnoeka product is a professional product, certified according to the CEI EN 60335-1 standard and can only be sold to professional users. -
Page 10: Spare Parts Availability And Supply
3) Damage caused by incorrect installation of the product, i.e. installation not in accordance with the installation manual, and in particular damage caused by inadequate chimneys and drains to which the product is connected. 4) Use of the product for purposes other than those for which it is intended, as specified in and derived from the technical documentation issued by Tecnoeka.
