Rolls REQ131 Specifications

Rolls equalizers are designed for modern sound reinforcement and recording applications. Smooth band-pass
filtering and transparent low-noise circuitry provide virtually distortion free operation.

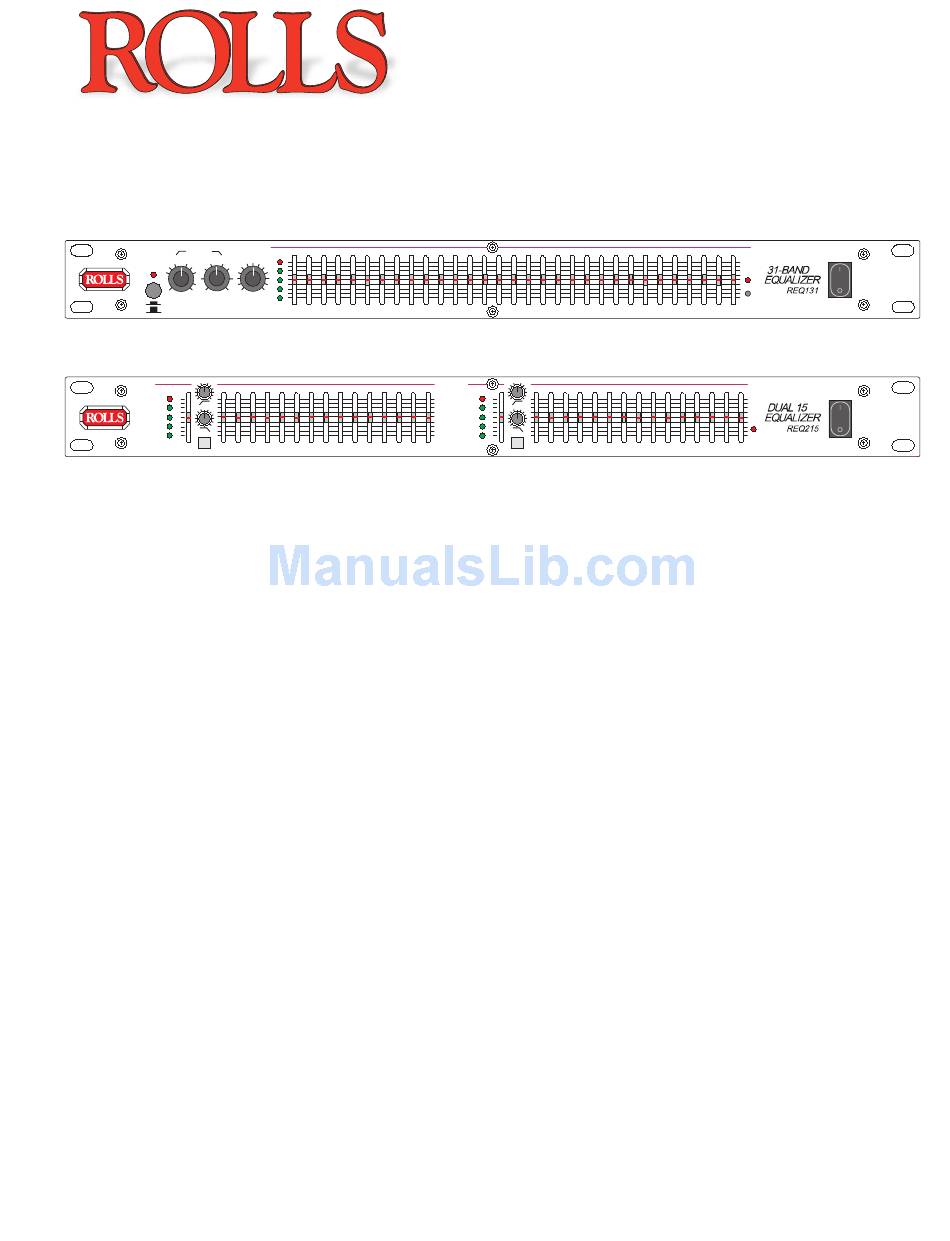

REQ131 Mono 31-Band Graphic Equalizer
HPF
LPF
50 100 4 6
30 200
10
2
20
1.5
400
16 1 30 -12
500
HZ KHZ
EQ
BYPASS
REQ215 Dual 15-Band Graphic Equalizer
20
20 40
+17
10 150
Hz
+10
6
0
-7
3.5 30
kHz
-13
LVL
IN/OUT

FEATURES

• Standard ISO Frequency Centers
• Adjustable Hi/Low Shelving Filters
• XLR, 1/4" and RCA Inputs and Outputs

SPECIFICATIONS

Frequency Response: 16 Hz to 30 kHz +/-3 dB
THD: <.03%
S/N Ratio: >90 dB
Max Input: +21 dB (REQ131)
+17 dB (REQ215)
Max Output: +21 dB (REQ131)
+17 dB (REQ215)
Input Impedance: 10KΩ (20K balanced)
Output Impedance: 50Ω
LED Levels: +17, +10, 0, -7, and -13 dB
Frequency Centers: 31 ISO standard 1/3 octave +/-3% (REQ131)
15 ISO standard 2/3 octave +/-5% (REQ215)
Shelving Slope: 12 dB / Octave (REQ131)
6 dB / Octave (REQ215)
Size: 19" x 6" x 1.75"
(48.3 x 15.2 x 4.5 cm)
Weight: 5 lbs. (2 kg)
LEVEL
20 25 31.5 40 50 63 80 100 125 160
0
+17
+10
0
-7
+12
-13
63 100 160 250 400 630 1K 1.6K 2.5K 4K 6.3K 10K 16K
CHANNEL 1
200 250 315 400 500 630 800 1K 1.2K 1.6K 2K 2.5K 3.1K
20
20 40 63 100 160 250
+12 +17
10 150
Hz
+10
6
0 0
-7
3.5 30
kHz
-13
-12
LVL
IN/OUT
EQUALIZERS
4K 5K 6.3K 8K 10K 12.5K 16K 20K
+12
PWR
-12
400 630 1K 1.6K 2.5K 4K 6.3K 10K 16K
+12
0
PWR
-12
CHANNEL 2
