Summary of Contents for Hyco PT01

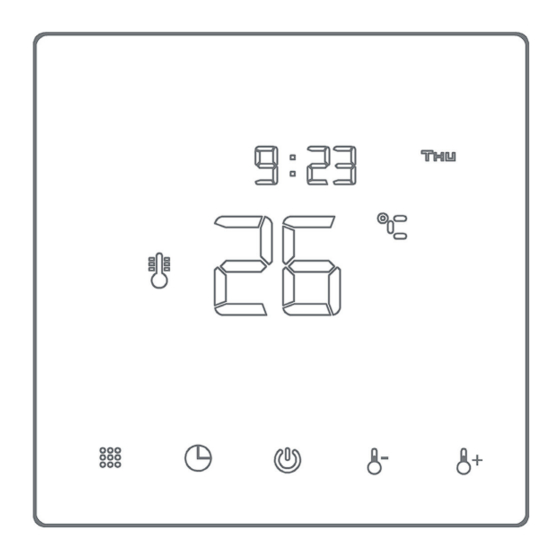

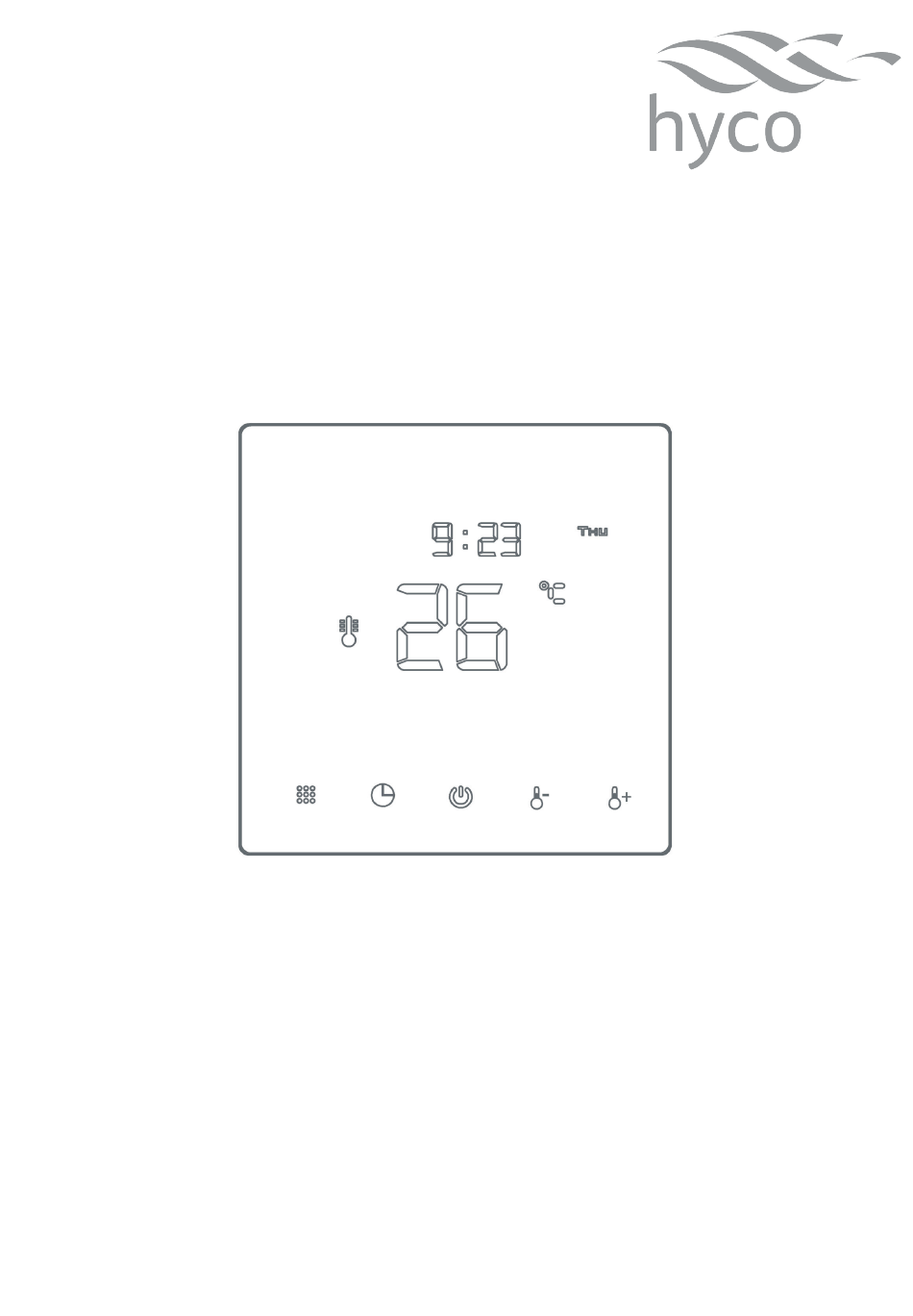

- Page 1 Product Instruction Manual Programmable Thermostat PT01 7 Day Programmable Thermostat v23.8.1...
- Page 2 Overview Thank you for purchasing a Programmable Thermostat. It will give you easy control of your Mistral Plinth Heater from a wall mounted location near the heater. Please read and follow these instructions to ensure that installation and operation are as simple and safe as possible.
- Page 3 Diagram 2 Diagram 1 Diagram 4 Diagram 3...
- Page 4 3. Operation Control Panel Overview Diagram 5 Symbol Description On/ off Select Clock Increase Decrease Manual mode Program mode (advanced) Heating...
- Page 5 Plinth Heater Settings • In order to use the plinth heater with the programmable thermostat the plinth heater must be switched on, with the thermostat set to the maximum setting and the desired heat setting selected. Turn on the Programmable Thermostat •...
- Page 6 4. Advanced Program Operation • There is an option to set an advanced program for your plinth heater which is made up of 6 separate segments per day. This allows wake up, leave and return times/ temperatures to be set in advance. Setting Your Program •...
- Page 7 5. Cleaning and Maintenance • Use a soft damp cloth when cleaning, avoid excessive use of liquids. 6. Specification Model PT01 Power 3.0 kW Voltage 230 V Controls Digital LCD Temperature range 5 - 35 °C Dimensions (h x w x d)
- Page 8 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court...
