Summary of Contents for Bathology Spectrum 230

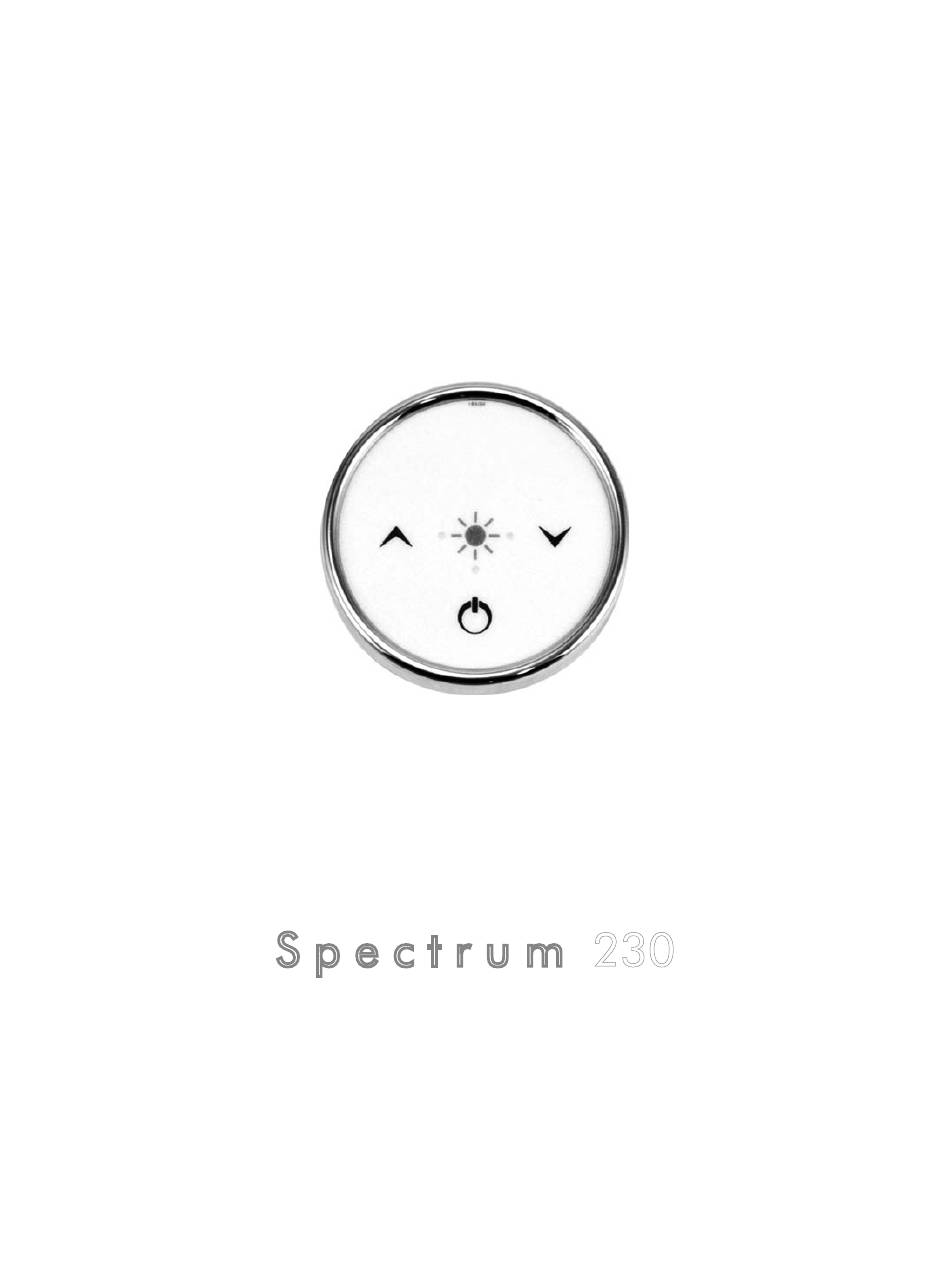

- Page 1 B A T H O L O G Y r e d i s c o v e r b a t h i n g S p e c t r u m 230 I n - S h o w e r L i g h t S w i t c h w i t h O n / O f f / D i m I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l...
- Page 2 National Electrical Code and local building code. Power Supply Width: 7-1/2“ Power Supply Height: 3-1/4” Note: The Spectrum 230 in-shower light switch is Power Supply Testing: CSA, Type 2 designed to be installed inside or outside the bathing environment dependant on personal Package Includes preference.
- Page 3 With light fixture installed, mount the power supply module in an accessible dry location and within the 25’ run of the Soft-Touch switch cable length. Note: The Spectrum 230 is designed for use with standard type dimming NEMA Male fixtures.
- Page 4 Replacement Parts Operation Contact your Bathology representative for Spectrum On/Off light button. The first press will 230 In-Shower Light Switch replacement parts. turn the light on, starting at 100%. The red...
- Page 5 B A T H O L O G Y 25’ Soft-Touch Switch Cable with Coupler r e d i s c o v e r b a t h i n g NEMA Male Plug www.Bathology.com 847-465-1070 Strain Relief Bushing A division of Bathing Brands, Inc. 900-0113-0713...
