Summary of Contents for saunalife Rain R3

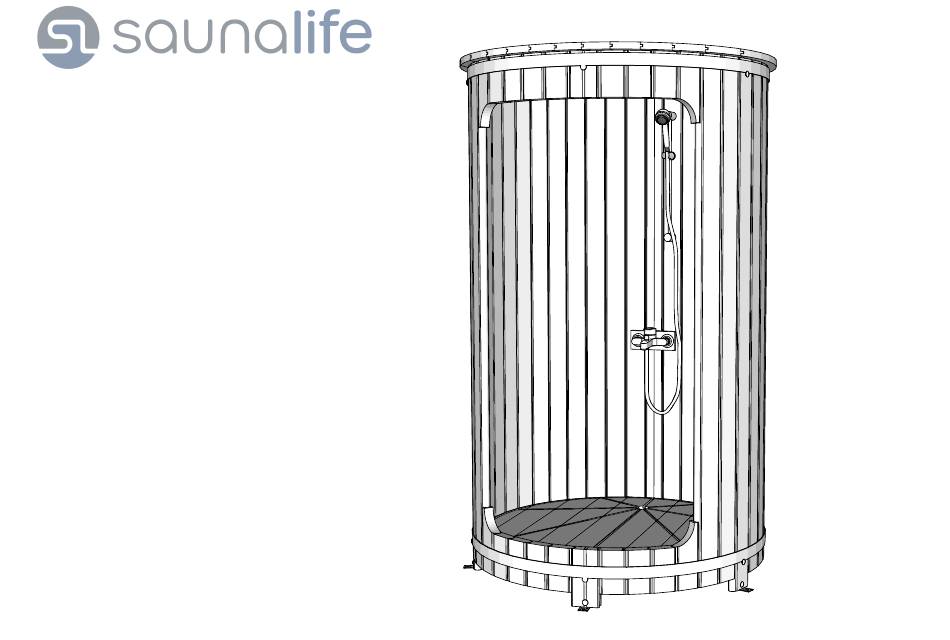

- Page 1 Rain-Series Model R3 Outdoor Barrel Shower IMORTANT: Please read entire manual before starting. Rev 4/2023...
- Page 2 Model R3 Shower Barrel Details List (x4) (x5) (x4) Torx bits T10 T15 (x2) (x5) (x10) (x40) (x50) (x110) (x10) (x5) T20 T25...
- Page 3 Model R3 Shower Barrel DET 1a 4x I DET 1 DET 3...
- Page 4 Model R3 Shower Barrel 4x M Use piece of wood to protect plywood 18x I 6xDET 2 Pre-drill holes 1/8" 2xDET 4b 2xDET 4a 4xDET F1 Pre-drill holes " ⁵/₁₆ 4xDET F2 4xDET F3 2xDET A 2xDET A...
- Page 5 Model R3 Shower Barrel Line up top and bottom boards on same direction Drainage 2xDET 4b 2xDET 4a ~90° DET 5b DET 5a Remove screws from DET 4, move them against DET 5 and fix. 2x H DET 4b 8x H 1xDET 5 Fix some scrap boards DET 4a...
- Page 6 Model R3 Shower Barrel DET 5a DET 5b Remove screws from DET 4, move them against DET 5 and fix. DET 4b DET 4a DET 6b DET 6a DET 7b DET 7a DET 5b DET 5a DET 7c ⁵/₈" DET 6d DET 6c...
- Page 7 Model R3 Shower Barrel If needed, cut detail on right side. 1xDET F1 Connect details, use 4x H proper size screws. 1xDET F2 1xDET F3 Pre-drill holes 5/32" before screws. 1xDET A...
- Page 8 Model R3 Shower Barrel 10xDET F4 DET B1 Leave space ~⁵/₃₂" Remove supports DET B Bottom Pre-drill holes ⁵/₁₆" into the leg details, 1 ³/₈" deep. Please be careful, do not drill through material! DET B1 DET B in.=in. ~7 ⁷/₈" DET 5 midpoint...
- Page 9 Model R3 Shower Barrel 1xDET 15 Tap mixer base Adjust height as needed. 2x I 14x J 2xDET 14 Make all pipeworks, tap mixer and waste water installation before proceedeng with next step. 10 ¹⁵/₆₄" 1xDET 12 14x J 12x I Pre-drill holes 1/8"...
