Cuisinart CSG-466 - Digital Folding Probe Thermometer Manual

MAIN FUNCTIONS

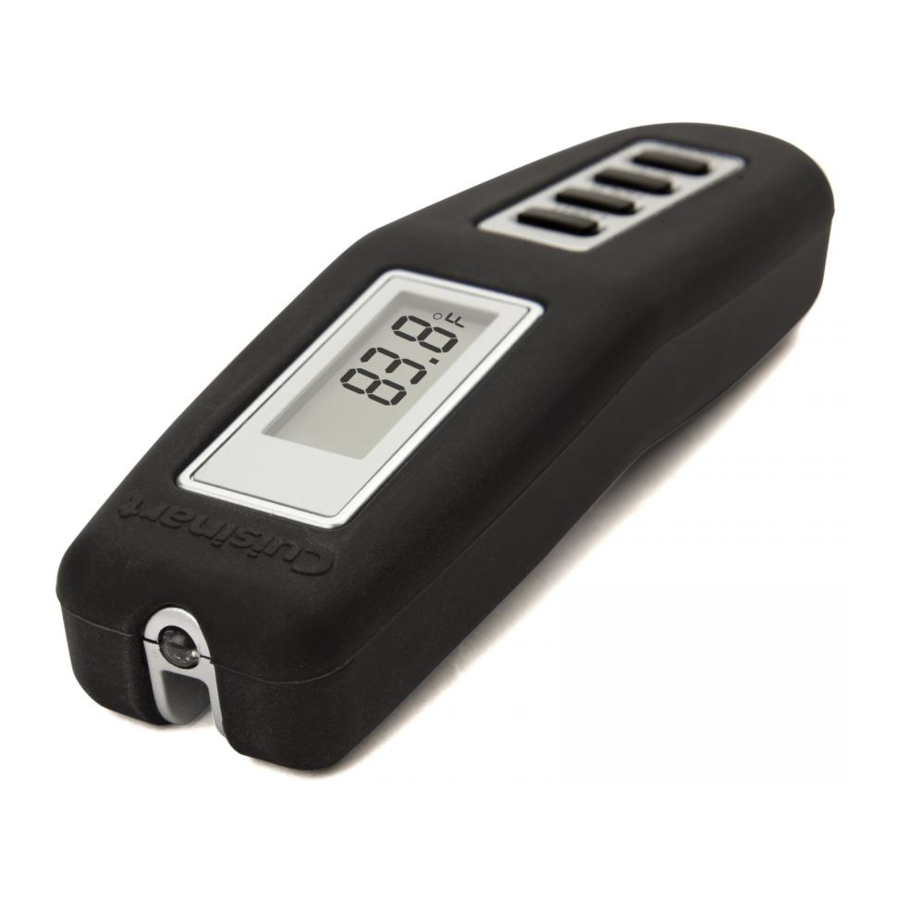

Unit Appearance

  • 4 function buttons: ON/OFF, °F/°C, HOLD, LIGHT
  • LED light
  • Memory functions for max/min temperature.
  • Temperature measurement range: -40°C~+250°C or -104°F~+482°F
  • Default temperature setting: °F
  • Measurement period: 1second, temperature resolution: 0.1°F
  • Low power detection
  • LED Backlight

START & RESET

  • Remove the silicone shield to access the battery door on the back of the thermometer. Slide the door away to install batteries. 2 AAA – not included
  • Power the thermometer on after the batteries are installed, all functions will show on the display for 1 second, and start to measure the environment's temperature. Also, the LED background light on for 5 seconds.
  • Default temperature setting: °F

    All-functions displaying version

OPERATIONS

ON/OFF button

  • Press the ON/OFF button one time to power on. Press the ON/OFF button one time to power off.

°F/°C button

  • Press this button one time to exchange °F/°C.
  • After exchange, the degree will not be reserved, it will show °F when you power on again.

HOLD button

  • Press this button to show the max tested temperature, press again to show the min tested temperature. press once more back to the current temperature. When showing max/min temperature, if there is no operation within 5 seconds, it will go back to the testing position automatically.

LIGHT button

  • Press this button to turn on the LED light, press again to turn off the LED light.

FUNCTION DESCRIPTION

Temperature

  • Temperature measurement range: -40°C~+250°C or -104°F~+482°F
  • Measure period: 1 second, temperature resolution: 0.1°F
  • Default temperature setting: °F
  • Accuracy: +/-1
  • It shows "HI"when the tested temperature over the MAX temperature, it shows "LO" when the tested temperature below the MIN temperature.

Backlight function

  • Push the °F/°C or "HOLD" button once, the LED lights on for 5 seconds. When power on, it lights on for 5 seconds.
