Summary of Contents for Rollei DigitalBino da20

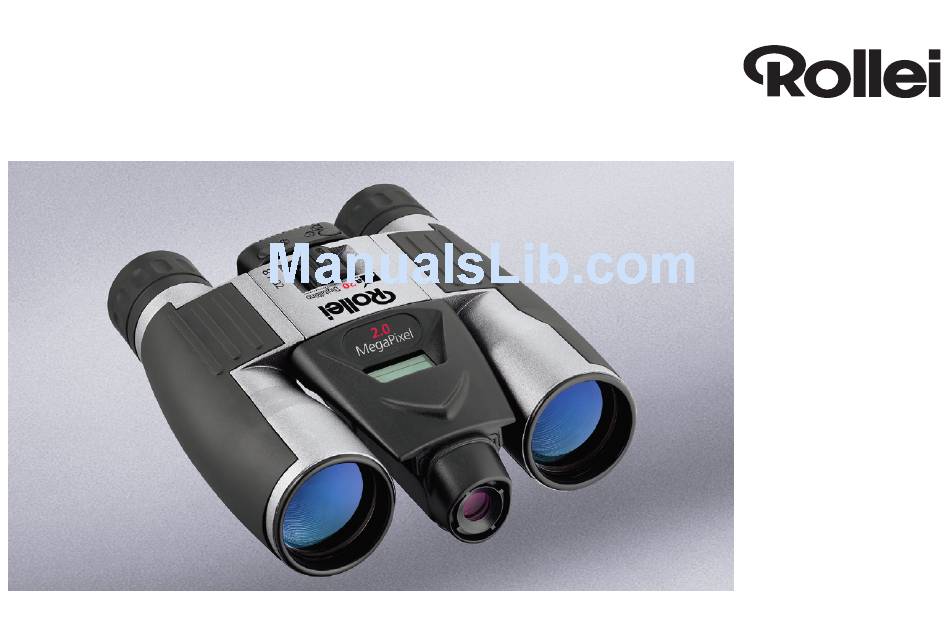

- Page 1 Rollei da20 DigitalBino Instructions for use...
-
Page 3: Table Of Contents
Introduction Important note Battery cautions Hints on usage Operating environment/Care Product part identifi cation Saving your photos Downloading images › Digital camera modes › Insert of the SD card › Using the binoculars › Using the camera › System requirements ›... -
Page 4: Introduction
INTRODUCTION Your DigitalBino is a binocular with an inte- gral digital camera that is great for sporting events, hiking and wildlife activities, such as bird watching. It lets you record valuable memories and sights at the touch of a button. -
Page 5: Important Note
IMPORTANT NOTE Never use your DigitalBino to look at the sun! Looking at or near the sun will cause immediate and irreversible damage to your eyes. Eye damage is often painless, so there is no warning to the observer that damage has occurred until it is too late. -
Page 6: Battery Cautions
BATTERY CAUTIONS / HINTS ON USAGE Battery cautions › Always use size AAA (No. 4) alkaline bat- teries. Never use unidentified batteries. › Never mix batteries of different brands. › Should the product develop an odd smell, carefully remove the batteries and have these and the binoculars examined by your dealer. - Page 7 › When exposing the product to marked temperature differences, first let it adopt the temperature of its operating environ- ment to make sure that there is no misting of glass surfaces that would ruin your pictures. › When no action is performed on the product, your DigitalBino will automati- cally shut down after 90 seconds.
-
Page 8: Operating Environment/Care
OPERATING ENVIRONMENT / CARE Operating environment/ Care of your DigitalBino 5 to 40°C, 20 – 85 % relative humidity, non-condensing. Care of your DigitalBino › Never immerse the product into any liquid. Remove dust or stains with a soft cloth moistened with water or a neutral deter- gent. -
Page 9: Product Part Identifi Cation
PRODUCT PART IDENTIFICATION 1. Diopter Knob (on underside) 2. Center Focus Knob 3. Objective Lens 4. Power/Mode Button 5. Shutter/Set Button 6. USB Port 7. Eyepiece 8. Camera Lens 9. LCD Screen 10. Battery Compartment Lid 11. SD Card Slot... -
Page 10: Saving Your Photos
SAVING YOUR PHOTOS Without an SD card Your photos will be automatically saved to the integral 16MB flash memory of the digital camera until this is full. You can take further pictures after downloading the images and clearing the memory. With an SD card Your photos will in this case be automatically saved to the SD card until the latter is full. -
Page 11: Downloading Images
Downloading images The flash memory and the SD card must be downloaded separately. Downloading the flash memory Remove the SD card and connect your DigitalBino to a computer. Then download the images in the flash memory. DOWNLOADING IMAGES Downloading images from an SD card Insert the corresponding SD card and follow the downloading steps to download the images on the card to your computer. -
Page 12: Digital Camera Modes
DIGITAL CAMERA MODES Digital camera modes To scroll through the camera modes, press the left (Mode/Power) button. To select a mode or take pictures, press the right (Shutter/Set) button. Explanation of mode icons SD card High resolution (1600 x 1200) Low resolution (640 x 480) Self-timer (10 s delay) - Page 13 Mass storage “PC” will be displayed when DigitalBino is connected to a computer via USB cable „ “. SD card full „ “ will be displayed when the SD card is full. SD-card warning „ “ will blink when the camera is unable to access the SD card.
-
Page 14: Insert Of The Sd Card
INSERT OF THE SD CARD / USING THE BINOCULARS Insert of the SD card SD card lid shut SD card lid open Contacts facing up Adjusting for eyeglass wearers For optimum viewing comfort, fold down the rubber eyecups and place your eyeglasses against them. -
Page 15: Using The Camera
Focusing the binoculars › Set the Diopter Knob on the underside to its center point between + and -. › Sight an object at least 15 meters away. › Looking with only your left eye, turn the Center Focus Knob until the object sighted is in sharp focus. - Page 16 USING THE CAMERA Photo modes › Turn on power by pressing the Mode/ Power button (4) for three seconds. › Press the Mode/Power button (4) to select the desired resolution (High or Low). › Sight a target with the binoculars. ›...
- Page 17 › If at any time the camera cannot access the SD card, the „FMT“ icon will flash. To correct this, the card may need to be formatted. To do this, select the SD-card format mode and press the Shutter/Set button for three seconds. Note: This will erase all images stored on the memory card.
-
Page 18: System Requirements
SYSTEM REQUIREMENTS / INSTALLATION OF DRIVER System requirements Windows 98SE/2000/ME/XP › Pentium 233 MHz or higher › 128MB SD-RAM › Video (VGA) card with 2MB of RAM for minimum 16-bit (High-Color) display › CD-ROM drive › USB port › 60MB of free hard-disk space Installation of driver Since your DigitalBino is a mass-storage device, captured images can be accessed just... - Page 19 Installing the DigitalBino driver To install the driver, the unit should NOT be connected to your computer via the USB cable. If the operating system installed in your com- puter is Windows ME/2000/XP, you should not need to install the DigitalBino driver. Simply view and save images through the My Computer icon.
- Page 20 INSTALLATION OF DRIVER Installing the Photo Manager › Load the CD-ROM. › Select “Install Thalia Photo Manager”. › Choose the desired language and press the confirm button. › Enter the installation screen. › After confirming, click the “Next” button. › After confirming, click “Yes”.
-
Page 21: Downloading Image Files
Downloading image files To execute the Photo Manager, select the buttons as indicated. › Enter “Removable Disk” to open “DCIM” file. › In “DCIM” file open “100MEDIA” file. › In “100MEDIA” file choose all or selected images. › Finish image download. DOWNLOADING IMAGE FILES Using the Photo Manager “Help”... -
Page 22: Viewing Video Clips On Your Pc
VIEWING VIDEO CLIPS Viewing video clips on your PC › Use the USB cable to connect the PC’s USB port to your DigitalBino. When the linkup is complete, “PC” will be displayed on the LCD. › Double-click “MY COMPUTER” on the PC’s desktop. - Page 24 Rollei Fototechnic GmbH P.O. Box 3245 D-38022 Braunschweig www.rollei.de Germany...
