Summary of Contents for SITECNO EQX 500-DC

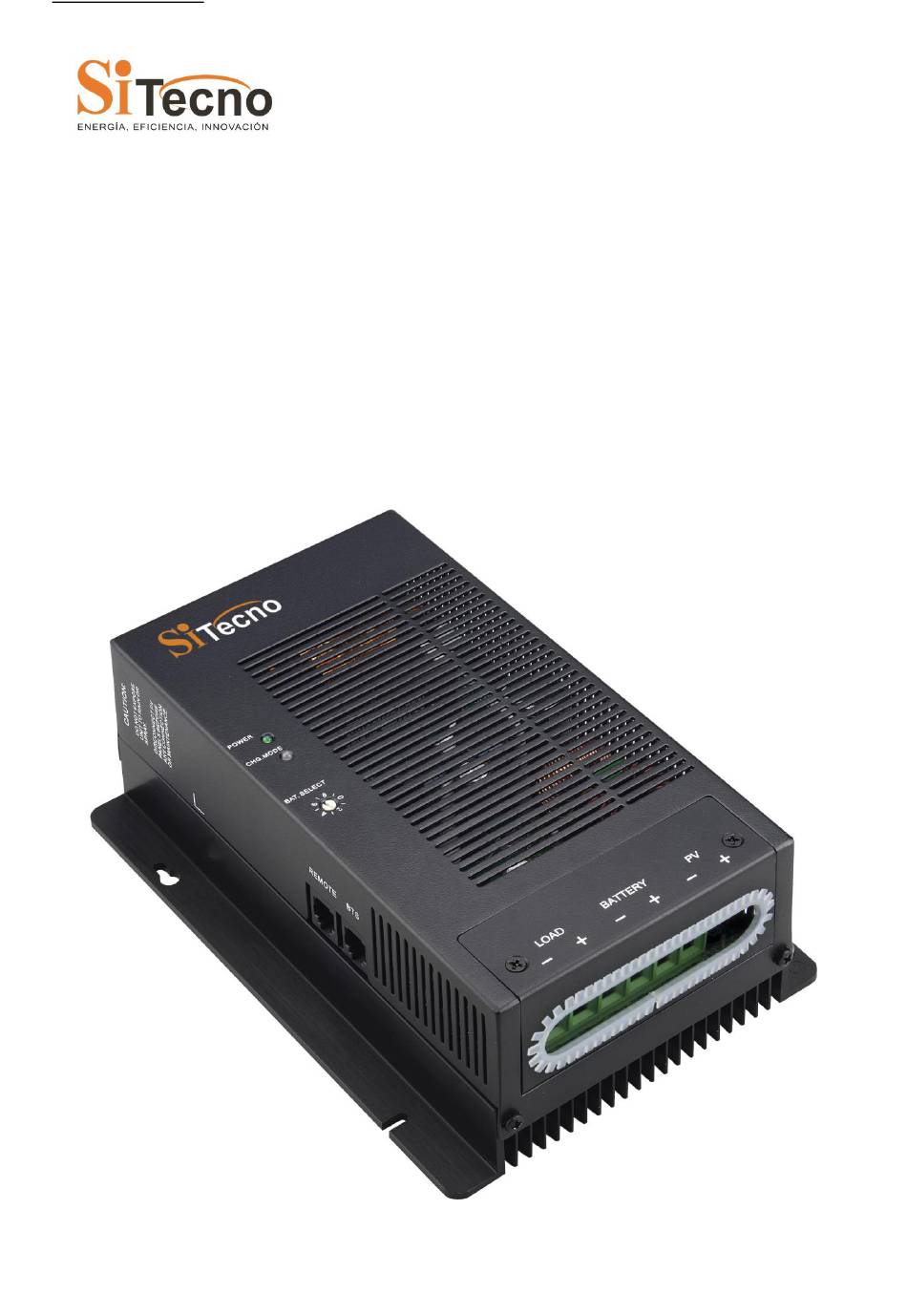

- Page 1 EQX 500-DC Solar Charger User’s Manual C/ Can Balmes 1-3, Sta. M. de Palautordera, 08460 Barcelona, Spain. T: +34 938482544, F: +34 938480439, E-mail: info@spanishsolar.com, www.spanishsolar.com...
-
Page 2: Table Of Contents
2.2 Removing the topcover ..........................14 2.3 Mounting the EQX 500-DC solar chargercontroller.................. 15 2.3.1 Mount the EQX 500-DC solar charger charge controller ............... 15 2.4 Configuring the EQX 500-DC solar charger charge controller ..............16 2.4.1 Battery type selector can apply different charger method ............... 16 2.5 Temperature compensation ........................ - Page 3 5.4 Humidity ..............................29 5.4.1 Operating Humidity ........................29 5.4.2 Non-Operating Humidity ........................ 29 5.5 Mechanical features ........................... 29 5.6 Detailed dimension drawing ........................30 6. Batteries ................................31 6.1 Battery Types ............................. 31 6.2 Automotive Batteries ..........................31 6.3 Maintenance-Free Batteries ........................31 6.4 Deep-Cycle Batteries ..........................
- Page 4 Figure 1 – 3: Load controller ........................... 12 Figure 1 – 4: Removing the topcover ......................14 Figure 1 – 5: Mounting the EQX 500-DC solar charger charge controller ............15 Figure 1 – 6: Battery type selector (B.SEL) ....................16 Figure 1 –...
- Page 5 About This Manual Purpose The purpose of this manual is to provide explanations and procedures for installing, operating, maintaining, and troubleshooting the Solar Charge Controller. Scope This manual provides safety guidelines, detailed planning and setup information, procedures for installing the Solar Charge Controller, as well as information about operating and troubleshooting the unit.
-
Page 6: Important Safety Instructions
Do not connect to a PV array capable of producing greater than 40 amps of short circuit current @ 25°C. Do not connect input to DC source directly with load, EQX 500-DC solar charger need to .be powered by solar panel. - Page 7 Symbol --Warning --Dangerous Voltage --Alternative Current --Direct Current --Protective Earth --ESD Abbreviations and Acronyms Battery Temperature Sensor Direct Current Light Emitting Diode Low Voltage Disconnect Low Voltage Reconnect B.SEL Battery type selector CHG.MODE Charge mode Photovoltaic MPPT Maximum Power Point Tracking Pulse Width Modulation Renewable Energy - 7 -...
-
Page 8: Product Description
RJ11 port connect with the unit, and the EQX 500-DC solar charger also includes an isolated RS232 port for connection to a PC computer for data logging and system monitoring. -
Page 9: Maximum Power Point Tracking (Mppt)
Note that this example assumes 100% efficiency to illustrate the principal of operation. In actual operation, boost will be somewhat less. EQX 500-DC solar charger is fully protected against reverse polarity and high voltage transients for both the PV and the battery connections. If the battery is connected reverse polarity, EQX 500-DC solar charger will not operate. -
Page 10: Eqx 500-Dc Solar Charger Setup
Equalize 14/28V EQX 500-DC solar charger is typically configured for a three stage charging process, Bulk, Absorption and Float. The three stage charge process provides a somewhat higher charge voltage to charge the battery quickly and safely. Once the battery is fully charged a somewhat lower voltage is applied maintain the battery in a fully charged state without excessive water loss. -
Page 11: Battery Temperature Sensor (Bts)
40amps of continuous photovoltaic (PV) array current at 12 / 24-volts DC for charging batteries. This rating includes the NEC required derating. But at the same time the EQX 500-DC solar charger charge controller can provide the maximum 15Amp current to DC load , however the rating charge current 40Amp will decrease. -
Page 12: Automatic Pv Array Night Disconnect
1.12.3 EQX 500-DC solar charger load control The EQX 500-DC solar charger charge controller can operate as a low voltage disconnect (LVD) for DC loads to prevent over-discharge to batteries during periods of poor charging or excessive loads. The EQX 500-DC solar charger charge controller uses the software setpoints to determine when to disconnect or reconnect loads depending on battery voltage. -
Page 13: Optional Accessories
Do not temperature-compensate these settings. Do not install the optional battery temperature compensation sensor. The follow accessories can be purchased for use with the EQX 500-DC solar charger charge Multifunction DC Controller: Battery Temperature Sensor (BTS): The BTS is installed on the side of the battery and attaches to RS232 port inside the EQX 500-DC solar charger charge controller. -
Page 14: Installation
System Installers. 1. Access the inside of the controller by removing the four screws M3*6 on the cover of the unit. 2. Remove the topcover of EQX 500-DC solar charger charge controller. Figure 1 – 4: Removing the topcover Remove these screws M3*6 (*4) from the topcover to access the heatsink of controller... -
Page 15: Mounting The Eqx 500-Dc Solar Chargercontroller
The EQX 500-DC solar charger charge controller is designed for indoor mounting. Care should be taken in selecting a location and when mounting the enclosure. Avoid mounting it in direct sunlight to prevent heating of the enclosure. The enclosure should be mounted vertically on a wall. In outdoor installations, the EQX 500-DC solar charger charge controller must be installed in a rainproof enclosure to eliminate exposure to rain, mist or water-spray. -
Page 16: Configuring The Eqx 500-Dc Solar Charger Charge Controller
2.4.1 Battery type selector can apply different charger method The battery type selector is a 10 position rotary switch used to set the EQX 500-DC solar charger for the proper float and bulk voltage levels. These levels are selected depending on the type of batteries used. Refer to the table below for the charge voltages in the various switch positions. -
Page 17: Temperature Compensation
Provides an additional Not Specified 13.6 14.3 27.2 28.6 setting of Bulk and Float voltages. Recommended for gel cell batteries that specify Gel Cel 2 13.7 14.4 27.4 28.8 high float voltages. Check with the battery manufacturer. Gel Cell 1 13.5 14.1 28.2... -
Page 18: Temperature Compensation Based On Battery Type
2.5.1 Temperature compensation based on battery type The charge voltage required by batteries changes with battery temperature. Temperature compensation of charge voltage enhances battery performance and life, and decreases battery maintenance. Automatic temperature compensation can be provided through use of the optional battery temperature sensor. The following table describes approximately how much the voltage may vary depending on the temperature of the batteries. -
Page 19: Grounding
2.8.1 Current Rating EQX 500-DC solar charger charge controller is rated for a rating continuous current of 40 amps. Since PV outputs can vary due to the array size or sunlight striking it, the safe minimum wire size should be based on the maximum current ratings. -
Page 20: Surge Protection
1. Connect the PV array’s positive (+) output to the terminal marked PV positive (+) on the EQX 500-DC solar charger charge controller and tighten the screw. -
Page 21: Figure 1 - 9: Pv Charge Control Mode Wiring
8. Connect a cable from the controller’s other terminal marked load positive (+) to the positive terminal of your DC load and tighten the screw. Figure 1 – 9: PV charge control mode wiring Load Negative (-) PV Negative (-) Load Positive (+) PV Positive (+) Battery Negative (-) -
Page 22: Easily Install In Parallel Connection
In order to get more than 40A charge current, the EQX 500-DC solar charger can be connected in parallel. For example, connecting 2 EQX 500-DC solar charger in parallel can get 80A charger current, and connecting 3 EQX 500-DC solar charger in parallel can get 120A charger current. -
Page 23: Installing Optional Accessories
2.Insert the RJ-11 plug on the other end of the BTS into the BTS Port on the EQX 500-DC solar charger charge controller. -
Page 24: Figure 1 - 13: Reinstalling The Faceplate
Figure 1 – 13: Reinstalling the faceplate Align these screw holes, Replace the screws to secure the topcover - 24 -... -
Page 25: Operation
Single color LED indicator Multicolor LED indicator The EQX 500-DC solar charger has one multicolor LED and one green LED to indicate the operating status of the controller. The green LED indicates whether the charging source is functioning properly when it display solid green or the type of the fault when it flash. -
Page 26: Table 1 - 6: The Led Indicators
If the EQX 500-DC solar charger connected with DC load, the load is disconnected before the transistors reach an excessive temperature and the green LED flashes. -
Page 27: Troubleshooting
PV- & BAT- must be separate for proper operation. PV- must receive earth ground via shunts inside the EQX 500-DC solar charger which internally connect PV- to BAT-. External connection prevents proper operation of internal shunts and current measurement system. -
Page 28: Specifications
Sufficient ventilation to prevent over temperature shut down Specifications provide the specifications for the EQX 500-DC solar charger charge controller. Table 1 – 8: Electrical specification Rated Voltage 12/24Vdc Rated charge current 40Amp Load current... -
Page 29: Safety
5.2.1.3 Storage Temperature -25°C to +70°C 5.3.1 American market 5.3.1.1 Compliant with FCC Part 15B 5.3.1.2 Compliant with UL 1741 5.3.2 European market 5.3.2.1 Compliant with EN 60335-1 5.3.2.2 Compliant with EN61000-6-1:2001 5.3.2.3 Compliant with EN61000-6-3:2001 5.4.1 Operating Humidity 20 to 80% relative humidity (non-condensing) 5.4.2 Non-Operating Humidity 5 to 95% relative humidity, 38.7C maximum wet bulb temperature with no cosmetic damage. -
Page 30: Detailed Dimension Drawing
Figure 1 – 15: EQX 500-DC solar charger dimension drawing - 30 -... -
Page 31: Batteries
Batteries come in different sizes, types, amp-hour capacity, voltages and chemistries. Here are a few guidelines that will help in battery selection, and ensure that the batteries are properly maintained. The best source of the most appropriate settings for the EQX 500-DC solar charger charge will be from the manufacturer or supplier of the batteries. -
Page 32: Equalization Charging
Approximately every month, some batteries may need to be “equalized.” Since the individual cells of the battery are not identical, some cells may not be fully charged when the charging process is completed. If the batteries have been left in a discharged condition for long periods of time, the plates will have sulfates on them from the electrolyte.
