Armor 99 USB Series - Usb Headset Manual

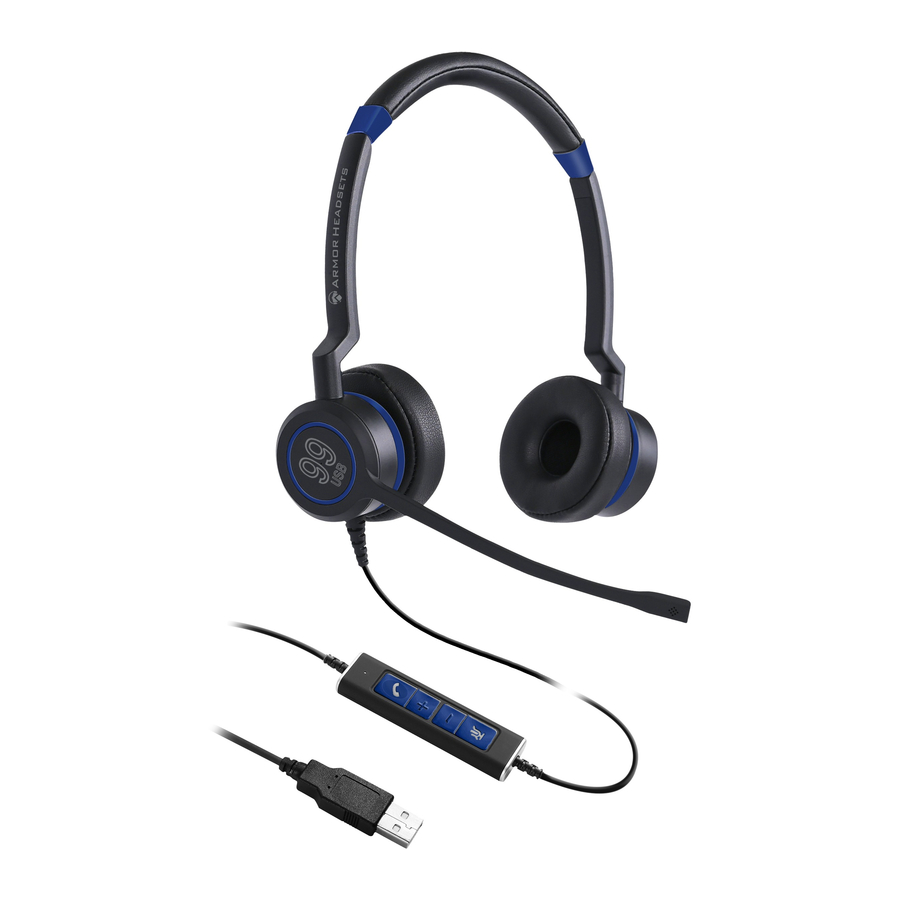

Headset Components

1. Wideband Speaker
2. Ear Cushion
3. Adjustable Headband
4. Soft Headband Pad
5. T bar
6. Ultra Noise Cancelling Microphone
7. Secondary Microphone
8. USB Controller
9. Flexible Boom Arm
10. Type A Connector

Compatibility

• Works with any PC & Softphone.
• Compatible with Skype For Business & Microsoft Teams*, Avaya, Cisco system and 3CX.

* Supports On/Off Key Hook Function

Connection

• Connect your Armor 99 USB Series Headset to a free USB port on your PC.
• Make sure that the headset has been selected as the standard audio device in the system control audio settings.
• Check whether you need to adjust these settings to use a headset by reading the operating instructions for your softphone application.

Headset Components

1. Visual Light Up Display to Mute Microphone
2. Volume Control
3. On/Off Hook Key Function for Teams Version

Using Your Headset

Connect your 99 USB Series Headset to a free USB port on your PC. There is a USB Type
C adapter included if needed.

Wearing Your Headset

The headset can be worn on either the right or left side by rotating the microphone boom over the headband to accommodate your preference

How to Wear the Headset

Place the headset receiver to your ear(s), if using a single ear headset you should set the T-bar above the other ear. Adjust the headband until it is comfortable, ideally ensuring that there is virtually no pressure felt on the ear(s).

Mic Positioning

To avoid low or distorted sound, and to provide clear and crisp telephone calls, the microphone should be positioned within an inch or two (30-40mm) from the corner of your mouth. The microphone boom arm is flexible and will move in a variety of directions to ensure the best fit.

Clothing Clip

Your new headset includes a clothing clip to ensure the cable does not get caught or inadvertently pulled. The clothing clip should be fastenlevel, ensuring that there is sufficient slack on the cable to allow free movement of your head without disturbing the headset position.

Ear Cushion Removal

Using both thumbs, remove the ear cushion by gently prying the earplate away from the groove on the receiver

Maintenance

The ear cushions can be removed for cleaning or replacement

Accessories

Replacements & Enhancements:

1. Leatherette Ear Cushion/s
2. Spare Foam Ear Cushion/s
3. Clothing clip
4. USB Female Type A to Male Type C Adapter
5. Soft Carrying Case
