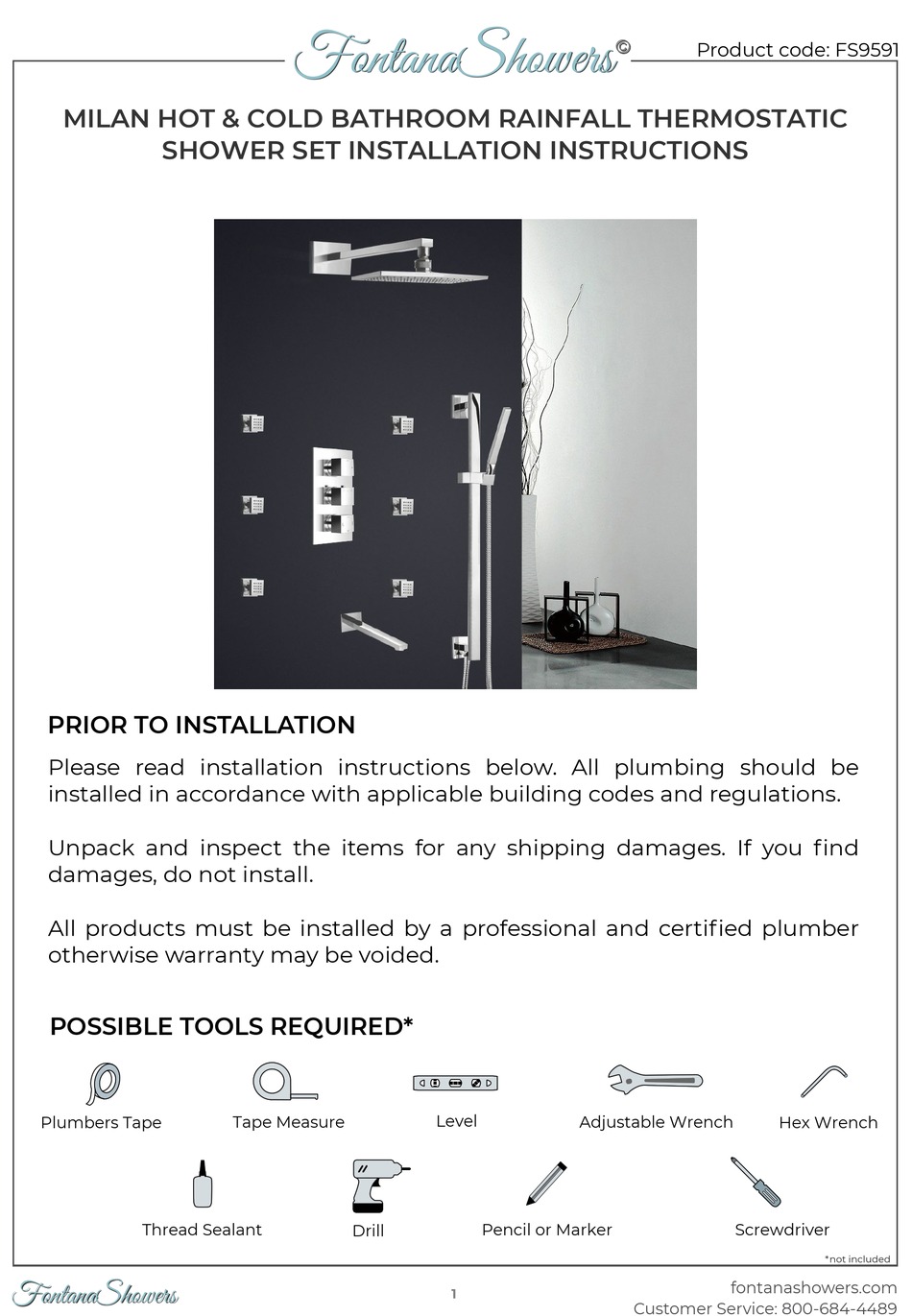

MILAN HOT & COLD BATHROOM RAINFALL THERMOSTATIC
SHOWER SET INSTALLATION INSTRUCTIONS
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Plumbers Tape
Thread Sealant
FontanaShowers
FontanaShowers
FontanaShowers
FontanaShowers
Tape Measure
Drill
Level
Adjustable Wrench
Pencil or Marker
1
©
©
Product code: FS9591
Hex Wrench
Screwdriver
fontanashowers.com
Customer Service: 800-684-4489
*not included
Advertisement
Related Manuals for Fontana Showers FS9591
Summary of Contents for Fontana Showers FS9591
- Page 1 FontanaShowers FontanaShowers © © Product code: FS9591 MILAN HOT & COLD BATHROOM RAINFALL THERMOSTATIC SHOWER SET INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations. Unpack and inspect the items for any shipping damages. If you find damages, do not install.
- Page 2 FontanaShowers FontanaShowers © © Wall Mount Shower Installations Instructions Step 1: Step 2: Step 3: Step 4: Step 5: Step 6: fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489...
- Page 3 FontanaShowers FontanaShowers © © Step 7: Product shown is only for installation display purpose 1. Apply plumber's tape to the threads on both ends of the shower arm and slide on the decorative escutcheon. 2. Insert the new arm into the fitting in the Wall and twist to tighten. Finish tightening with your adjustable wrench.
- Page 4 FontanaShowers FontanaShowers © © Hand Shower Installations Instruction Step 1: Step 2: 0.19” (4.8mm) Max 1. SUPPLY ELBOW INSTALLATION Apply plumber tape to threaded ends of 1/2" (13 mm) 2. Mark the place for drilling the hole for the lower iron pipe nipple (not supplied) and thread into post.
- Page 5 FontanaShowers FontanaShowers © © Step 4: 5. Slide the slide mechanism (1) and elbow (2) onto the wall bar (3). Slide wall bar over bracket tabs (4) and secure the wall bar unit with screws (5) provided. Install caps (6) into ends of wallbar. Lower elbow (7) &...
- Page 6 FontanaShowers FontanaShowers © © Body Jets Spray Installations Instruction G1/2 Step 1: Attach the escutcheon to the body Step 2: Apply teflon tape to threaded tail pipe spray. of the body spray Step 3: Press the escutcheon against the Step 4: Screw the Body spray tightly into the finished wall female of water Supply Pressure Balancing Loop:...
- Page 7 FontanaShowers FontanaShowers © © Spout Installations Instructions Step 1 Step 2 Put the decorative plate (2) through the connecting core (1) (4), then install the spout Step 3 Adjust direction of decorative plate (2) and spout (4), Fix the screw (3) with allen key (6). Finally, turn on the water and check for leaks.
- Page 8 FontanaShowers FontanaShowers © © Mixer Installations Instructions Step 1 Step 2 Anchor Positioning Tapping Screw 1 Tapping Screw 2 Button Cover Screw 1 Diverter Handle Temp. Handle Rough-in Body On/Off Plate Handle Hex Wrench Step 3 ( Connection) Function 2 Function 1 Function 3 Hot water...
-
Page 9: General Information
FontanaShowers FontanaShowers © © General Information All products manufactured and supplied by Fontana are safe and comply to legislative requirements. Providing they are installed correctly and receive regular maintenance in accordance with these instructions your user experience will not be affected. Care &...
