INSTALLATION INSTRUCTIONS

Button Setting

When the fuse/switch box and switch control panel are connected and powered on, the default setting for each
button will be to function as a simple on/off switch for the connected light or accessory. Buttons on the switch
panel can also be set to a momentary setting or a strobe setting. This can be done by first holding down the
master on/off button, then holding any button until the light above that button illuminates. This process can be
repeated to cycle through the three settings as needed.

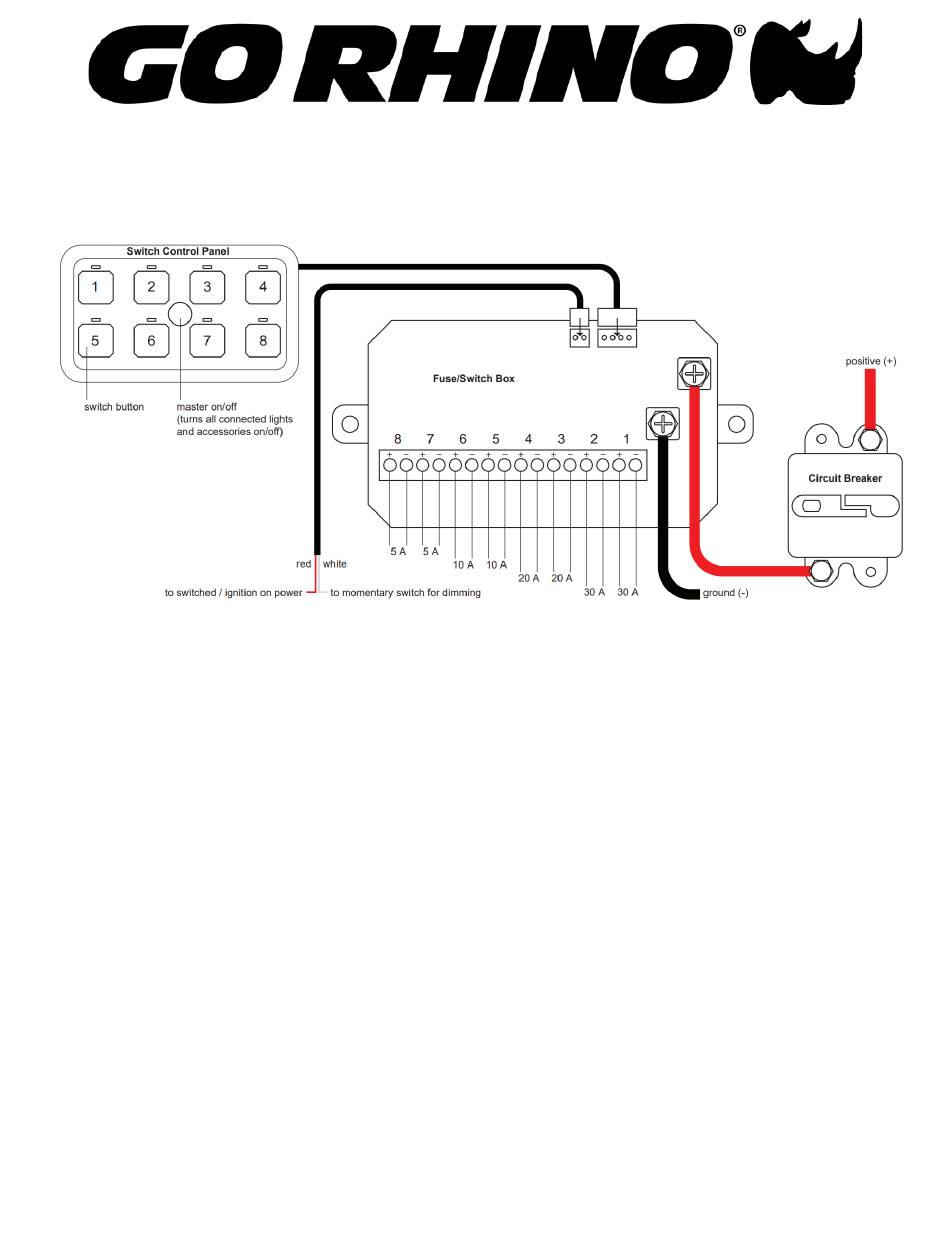

Wire Connections

This switch panel control system has eight switch circuits, each has a maximum current rating. The total operating
amperage of the connected accessories cannot exceed 60 amps(600 watts). You may have multiple electrical
devices or auxiliary LED lights connected that total more than 60 amps, but you cannot have them turned on at the
same time. Otherwise, the control box will be damaged. The switch panel comes configured with the following
fuses: Circuit 1 30A, Circuit 2 30A, Circuit 3 20A, Circuit 4 20A, Circuit 5 10A, Circuit 6 10A, Circuit 7 5A, Circuit 8
5A.

Spare Fuses

Spare fuses and fuse removal / install tool are supplied under the circuit breaker cover.

Dimmable Feature

Connecting the 'White Wire' to the ACC / Factory dimmer switch will allow the backlit brightness to be
incrementally adjusted.
