Summary of Contents for Craftworx 1A-SC108

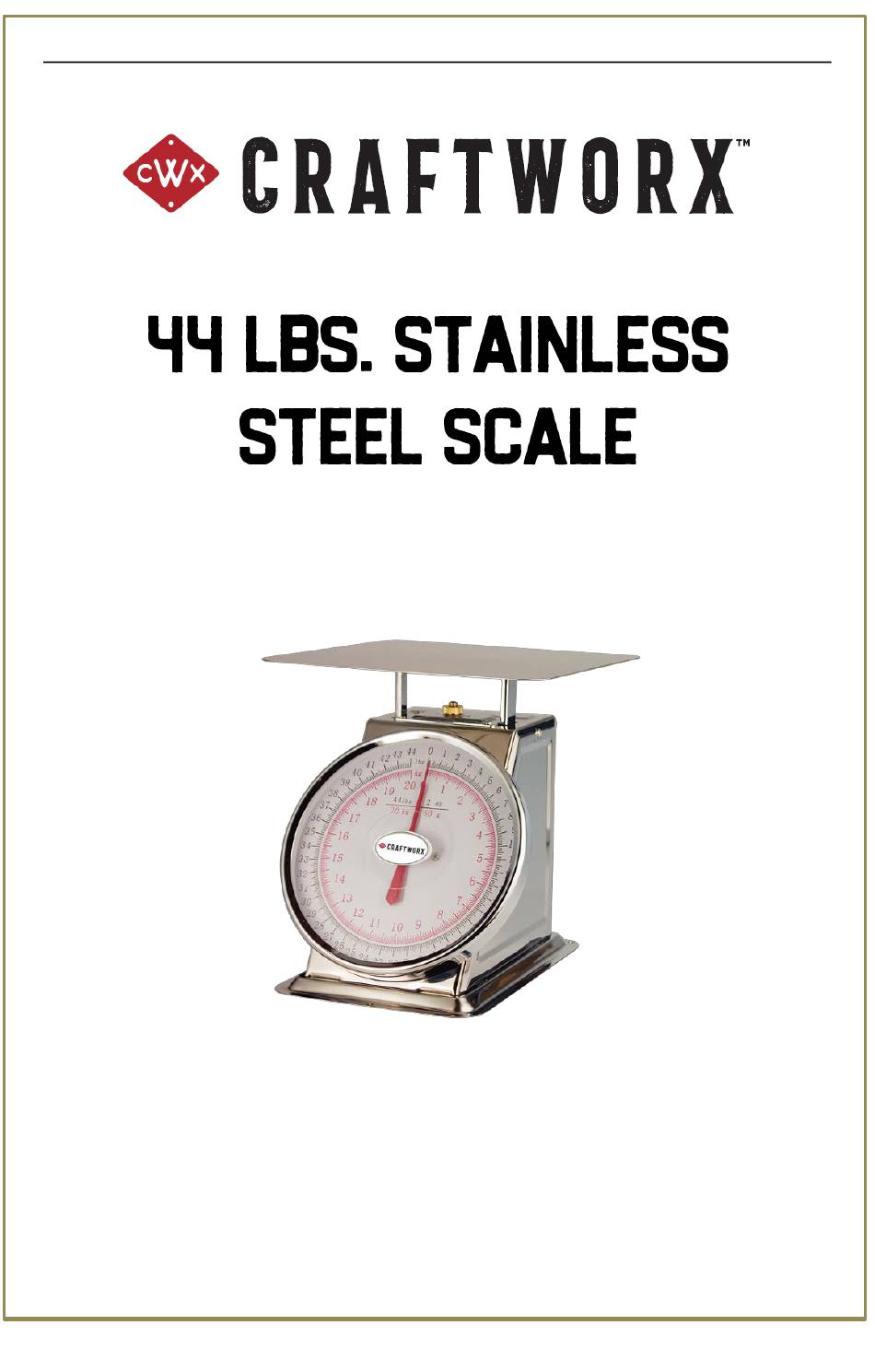

- Page 1 INSTRUCTION MANUAL | MFG#: 1A-SC108 TOLL FREE: 1-877-258-6190...
- Page 2 Capacity: 44 LBS. / 20 KG Increments: 2 OZ. / 50G 1. Set the platform (4) on a level surface. Using bolts, attach the cross bracket (8) to the platform (4) and the tray (7) to the bracket (8). 2. Adjust the zero value by winding the zeroing adjustment knob (6) until the dial (3) points to zero; then check by slightly pressing the tray down and releasing it.
- Page 3 1. WING NUTS 5. NEEDLE 2. PLASTIC FACE PLATE 6. ZEROING ADJUSTMENT KNOB 3. DIAL 7. STAINLESS STEEL TRAY 4. PLATFORM 8. CROSS BRACKET...
- Page 4 MANUEL D’INSTRUCTIONS | N FAB. : 1A-SC108 USAGE DOMESTIQUE SEULEMENT Sans frais : 1-877-258-6190 Veuillez lire attentivement le manuel d’instructions de la balance à cadran avant...
- Page 5 l’utilisation. Capacité : 44 LB / 20 KG Incréments : 2 OZ / 50 G 1. Placez la plate-forme (4) sur une surface plane. Fixez le support transversal (8) à la plate-forme (4) et le plateau (7) au support (8) à l’aide de boulons. 2.
- Page 6 Dessous plateau VIS PAPILLON AIGUILLE BOUTON DE RÉINITIALISATION PLAQUE FRONTALE EN PLASTIQUE PLATEAU EN ACIER INOXYDABLE CADRAN SUPPORT TRANSVERSAL PLATE-FORME...
