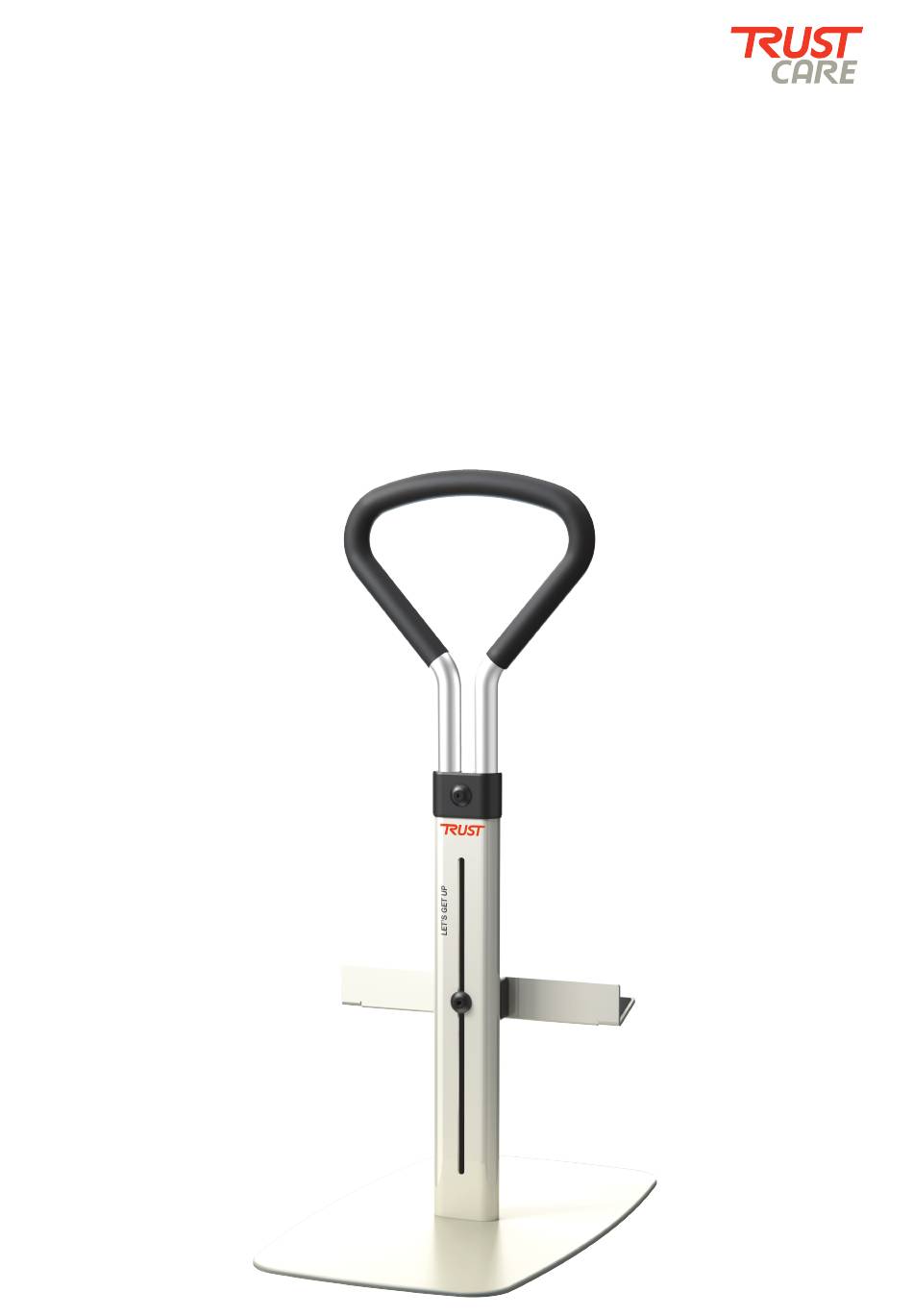

- Page 1 SERVICE MANUAL Let’s Get Up bed handle. From Trustcare.
- Page 2 TABLE OF CONTENTS Exchange of grab handle Art. No. LGU330 Page 3 Exchange of grab handle adjustment set Art. No. LGU325 Page 4 Exchange of bed bracket adjustment set Page 5 Art. No. LGU315...
- Page 3 Exchange of grab handle. Let’s Get Up Spare part. Art. No. LGU330 Let’s Get Up Service Manual. Revision version No: 1 - May 2021 1. Loosen the handle height adjustment screw by using an allen key. 2. Remove the handle by pulling it up.
- Page 4 Exchange of grab handle adjustment set. Let’s Get Up Spare part. Art. No. LGU325 Let’s Get Up Service Manual. Revision version No: 1 - May 2021 1. Loosen the handle height adjustment screw. 2. Remove the screw, the lock plate and the grab handle. 3.
- Page 5 Exchange of bed bracket adjustment set. Let’s Get Up Spare part. Art. No. LGU315 Let’s Get Up Service Manual. Revision version No: 1 - May 2021 1. Remove the screw and the bracket assembly. 2. Remove the bracket bushing from the bed frame bracket. 3.
