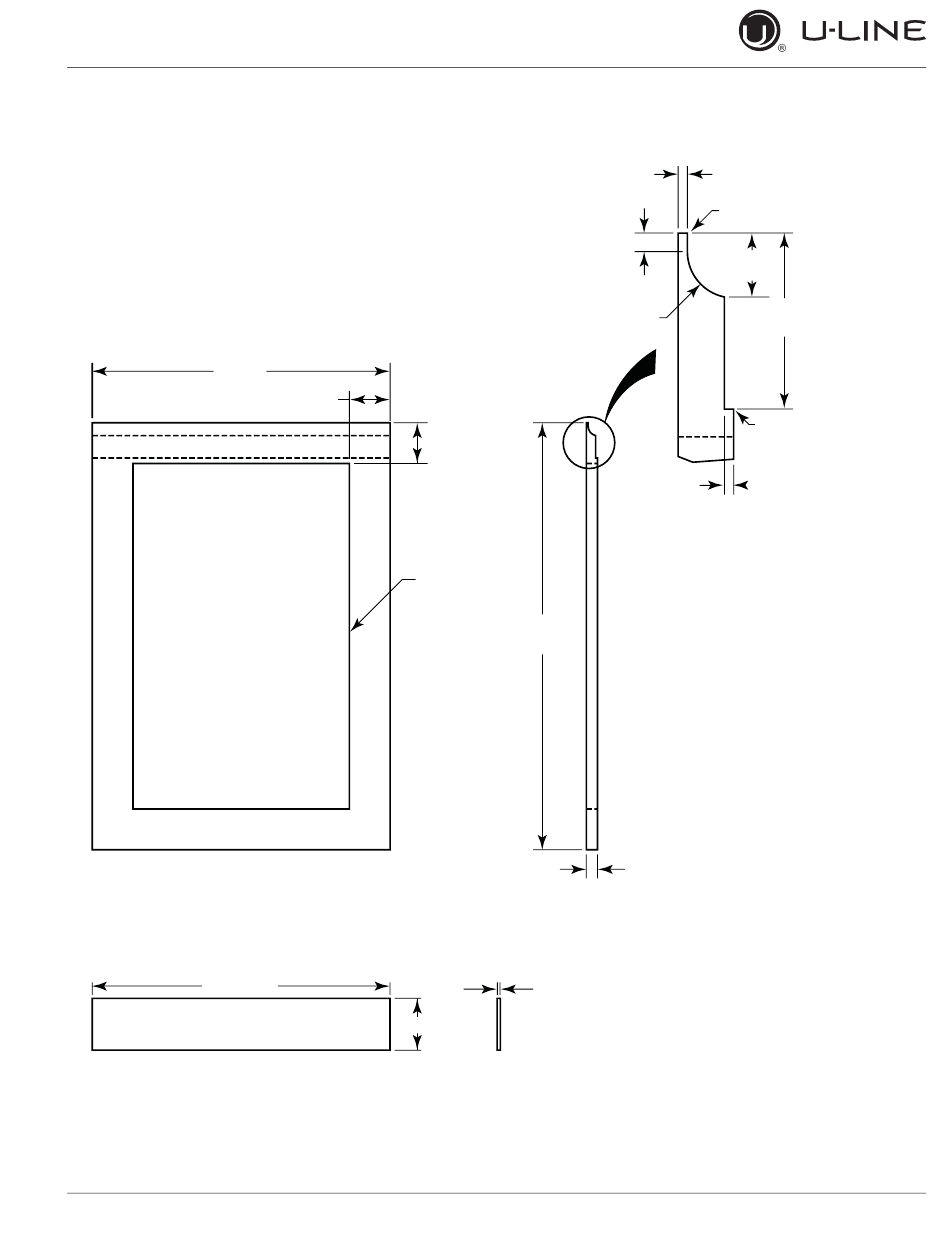

Handleless Integrated Frame Dimensions
23-1/2"
(595 mm)
23-1/2"
(595 mm)
2-3/4"
(70 mm)
2-3/4"
(70 mm)
Cutout
for Frame
Units
Wooden Insert Dimensions
3-1/2" (89 mm)
1/8"
(3 mm)
1/4" (6 mm)
R 5/8"
(R 16 mm)
28-13/16"
(732 mm)
3/4" (20 mm)
1/8" (3 mm)
u-line.com
Top Design
7/8" (22 mm)
Ref.
2-3/8"
(60 mm)
Insert Notch
Wooden Insert
Notch Depth: 1/8" (3 mm
Top Detail
Integrated Panel Dimensions 3
