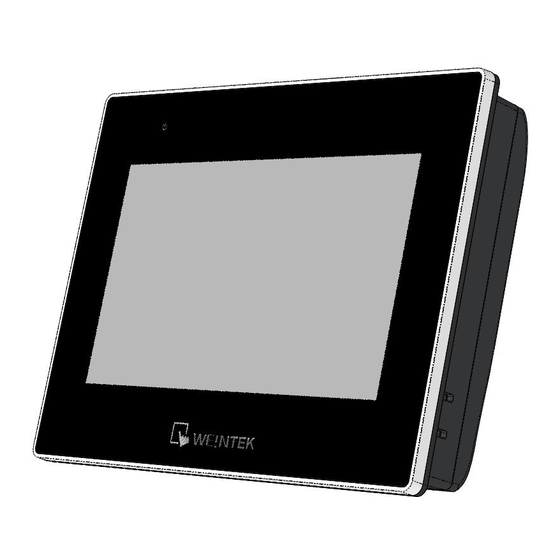

Weinview TK6070iQ Series - Touchpanel Installation Manual

Installation and Startup Guide

This document covers the installation of TK6070iQ Series HMI, for the detailed specifications and operation, please refer to Datasheet and EasyBuilder 8000 User Manual.

Install Environment:

Unpacking the Unit

Unpack and check the delivery. If damage is found, notify the supplier.

1. Installation Instruction, 2-sided A4 *1
2. Human Machine Interface *1
3. Power Connector *1
4. Brackets & Screws V2.1 *1 pack

NOTE:
Place the operator panel on a stable surface during installation. Dropping it or letting it fall may cause damage.

Installation Instructions

Secure the operator panel in position, using all the fastening holes and the provided brackets and screws:

Power Connections

NOTE:

1. Connect positive DC line to the '+' terminal and the DC ground to the '-' terminal.

2. Please do not connect HMI with PLC and PC simultaneously to prevent potential difference from destroying USB ports of HMI and PC.
   To make a connection, strip about 3/8" of insulation off the end of the wire, turn the connector screw counterclockwise until the gap is wide open, insert the wire all the way in, and turn the screw clockwise until it's tight.

System Settings

When HMI powered up and displays image, click the system setting button. (Default System Password: 111111)

Go to the Security tab, the default password is 111111, click the button to set your own password.

EasyBuilder 8000 Software Settings

Please use EasyBuilder8000 V4.65.06 or later versions.
Launch EasyBuilder 8000 software, select your project file, press F7 shortcut key to open the download dialog box:

Select USB cable > Click Download to download this project file to HMI.
( Please refer to EasyBuilder 8000 User Manual for software operation details )

Calibration Mode

Launch Project Manager, select TK6000/8000 iQ Series in Type field, select USB cable, and then click Calibrate Touch

Panel button to start calibration.

Communication Connections

9 Pin, Male, Sub-D
COM1 [RS232]
COM2 [RS485]

NOTE:
Com2 [RS485 2W] supports MPI 187.5K.

Cable Requirement
Different cables are required for various devices.

Restrict cable length to less than 500' (150m) for RS485/422 devices and 50' (15m) for RS232 devices to avoid communications problems. Shielded cable must be used for long lengths or cables run in an electrically noisy environment. Do not run cables next to AC power lines or near sources of electrical noise. Be sure that the cable ends have been inserted all of the way into mating connectors and are secure.
