ARROWMAX SEs - Electric Screwdriver Set 96+6 Manual

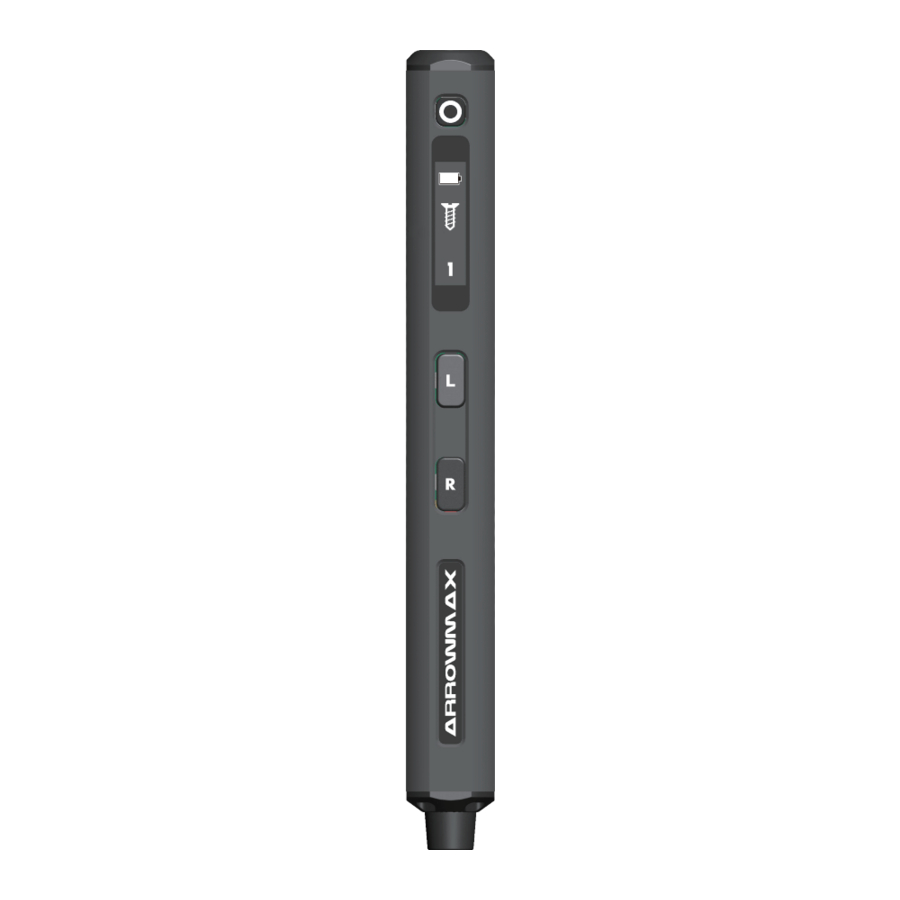

Structure Diagram

Thank you for choosing SES ( Electric Screwdriver). Please read the instructions manual carefully.

Product description

SES is equipped with OLED digital dynamic display designed with torque adjustment buttons forward and reverse keys. The four LED lights on the head will automatically light up while working.

During the working process of SES, the OLED screen animation shows that the screwdriver is locking or loosening the screws and the animation shows the direction of rotation of the bit. The OLED screen displays the current remaining power for a long time and displays the charging status in an animation.

The SES handle adopts a square shape with a circular arc surface, breaking the circular design of the traditional precision electric screwdriver, making it better to control the screwdriver during work, and the grip is more comfortable.

While the motor overload is effectively protected, the screwdriver is also properly protected in manual mode. The product has applied for a number of patents. The specially formulated high-capacity lithium battery makes more effective use of the internal space of the product.

Under the premise of maintaining the torque and power required for normal work, the size of the SES is reduced by more than 20% compared with current similar products. The lithium battery capacity can reach 500mAh, which makes SES work longer.
SES is with a precision screwdriver set 96 in 1.
The internal structure is compact. There are 96 different types of bit. Most 3C products, computers, four-axis unmanned machines, glasses, clocks, toys, models, etc, can be installed and disassembled.

Operation method

Gear setting: Press the torque adjustment button 3 times in a row to enter the gear setting interface, Single press to select the working gear of the screwdriver. After the selection is completed, let go and wait 2 seconds. After the data is saved it will automatically return to the standby interface.

Gear Setting Interface (Four Gears Freely Adjustable)

1. Maximum Torque mode 2.0kgf.cm
2. High Torque mode 1.5kgf.cm
3. Medium Torque mode 1.0kgf.cm
4. Small Torque mode 0.5kgf.cm

Working Status

• Press and hold the L-reverse key, the arrow mark dynamically displays to the left, the screwdriver head rotates to the left to loosen the screw, at the same time screw mark moves upwards indicating to loosen the screw.
• Press and hold the R-forward key, the arrow mark dynamically displays to the right and the screwdriver head rotates to the right, at the same time screw mark moves downwards indicating to tighten the screw.

Storage Instructions

• Press the top of the storage box, the inner box of the storage box pops out to open.
• Press the top of the inner box once more to close the storage box.

Precision screwdriver storage

• The precision screwdriver is fixed to the inner box of the storage box in the form of a buckle.
• After use, put precision screwdriver back into the tray.
• Bits are accommodated in the inner box by magnetic absorption. After using the bit, back into the slot, the bit can be absorbed by itself.
• Take out the bit from the slot and insert it into the bit installation port.

Precision screwdriver box set

1. Inner Box
2. Precision Screwdriver
3. Bits
4. Storage Box

Product parameters

Product model: AM-199812
Battery voltage: 3.7V
Size: 15 x 15 x 136 mm
Lithium battery: 500 mAh
Weight: 52g
No-load speed: 200r/min
Electric maximum torque: 2.0kgf.cm
Charging time: 80 minutes

Product list

1x SES
1x Magnetic pad
1x Power tip extension
1x Precision screwdriver storage box
1x Precision screwdriver
1x Type-C cable
1x SES thor stand
1x Manual

48x S2 steel 4mm double end screwdriver bits

Manufacturer Information
Manufacturer: Freemax Technology Co.,Ltd
Address: Room 1203,12/F,Wah Shing Centre,
11-13 Shing Yip Street, Kwun Tong, Hong Kong
T: + 852 3590 9790 E: info@arrowmax-rc.com
www.am-smart.com
