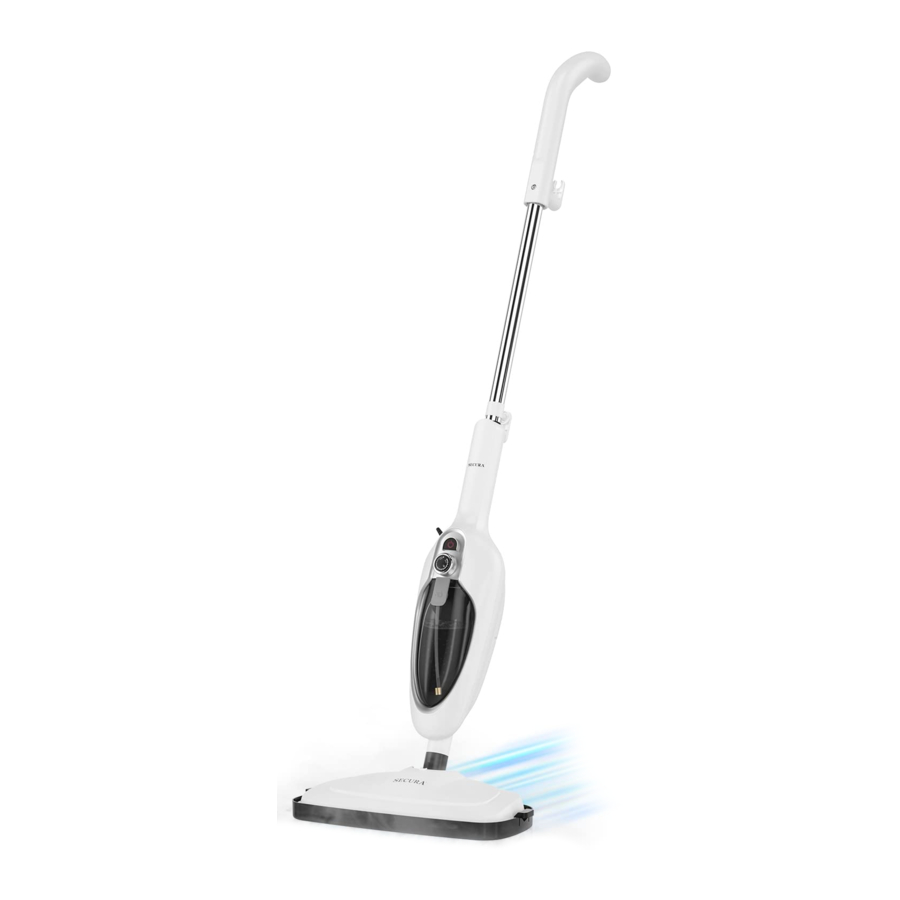

Secura EM-516 - Steam Mop Manual

Secura EM-516 - Steam Mop Manual

Advertisement

Secura EM-516 - Steam Mop Manual

PARTS DESCRIPTION

PARTS DESCRIPTION

  1. Handle
  2. Cord Wrap Hook
  3. Metal Tube
  4. Power Switch
  5. Steam Adjustment Knob
  6. Water Tank Cap
  7. Water Tank
  8. Main Body
  9. Mop Head
  10. Mop Pad
  11. Carpet Glider
  12. Measuring Cup
  13. lroning Brush
  14. Window Cleaning Tool
  15. Adaptor
  16. Round Brush
  17. Flat Brush
  18. Angle Nozzle
  19. Large Round Brush
  20. Scraping Tool
  21. Small Cloth

FEATURES

Using Secura Steam Mop to clean your home in an easy, relaxed and environmentally friendly manner.

Purely physical cleaning
Steam is used to completely clean and sanitizes floors or carpets without any chemicals. The steam temperature will reach approximately 190-230°F, particularly useful for cleaning bathroom, shower, pet sleeping area or garbage can.

Easy housework
Ideal for easily removing hard-to-remove stains, dirt or grime from floors or carpets. Household cleaning becomes less onerous and tedious.

Tap water
Designed for use with plain tap water to generate steam. Distilled or purified water is recommended for use only in hard water areas.

Reusable cloths
Comes with reusable, highly absorbent microfiber cloths that can be machine-washed in hot water and tumble dried.

Use on carpet and rugs
Designed for use with the supplied carpet glider on carpet and rugs that will withstand high heat.

Use on hard floors
Designed for use on hard surfaces that withstand high heat, including ceramic tiles, marble, stone or linoleum floors and on sealed hardwood or parquet floor.

IPX4 Water Resistance
Resistant to water splashes from any direction.

USE

  • Carefully unpack the steam mop and remove all packaging materials. Save the box and packing materials for later storage.
  • Clean the appliance according to the instructions in CLEANING AND MAINTENANCE section.
  • Place the appliance on a flat and stable surface to avoid overturning.
  • This appliance can be used as a Steam Mop and Handheld Steam Cleaner. Assemble all the parts correctly, as illustrated in the following paragraphs, to meet your needs.
  • Untie the power cord completely.
  • Lay the steam mop flat on the floor, open the water tank cap, and fill water to the full capacity of the tank. Close the water tank with the cap, and stand the steam mop upright to make sure the water level is under the MAX line.
  • Before connecting the appliance with the power source, check that voltage indicated on the rating label corresponds the mains voltage in your home.
  • Press the power switch to turn on the appliance, the indicator light will illuminate red, and the appliance will start heating. Wait for a short while until red turns to green, steam is ready for use. Turn the steam adjustment knob to control the steam quantity between MIN and MAX. Generally, when mopping wood floors, you need to turn down the amount of steam. When mopping ceramic tile, turn up the amount of steam.
  • This mop has a mechanism that can allow it to stand upright on its own. Before using, hold the mop handle and press the Mop Head down to release it, so that the Mop Head will be parallel to and tightly fit with the floor surface.
  • When the water level in the water tank is low, turn off the power switch immediately. Unplug the appliance from the electrical outlet and refill the water tank. The water level must not below the MIN line.

NOTE:

  • If you use steam mop for a long time, the Mop Pad may become very dirty. It needs to be washed.
  • Turn off and unplug the appliance, and allow to cool thoroughly before tear the cloth off the mob head.

  • Do not use the steam mop without the Mop Pad attached to the mop head.
  • Do not use the appliance without water in the water tank.
  • Do not use any detergents in the water tank. Only water should be used.
  • Do not insert any objects into the openings. Do not block any opening when using the appliance.
  • Do not direct the appliance towards people, animals or plants, or equipment containing electrical components such as the interior of ovens.

ACCESSORY LIST

Accessory Picture Suggested Use
Mop Pad For general cleaning of hard floors/marbles/refreshing carpets.
Carpet Glider For cleaning carpets.
Accessory Adaptor 'y P For connecting other accessories with the main body, and for cleaning areas that are hard to reach, such as sink, gas stove, faucet, microwave oven, range hood, etc.
Angle Nozzle For cleaning areas that are hard to reach, such as sink, gas stove, faucet, microwave oven, range hood, edge, corner etc.
Round Brush For cleaning ovens, microwaves, showers. bathtubs, faucet fixtures, tiles, toys, refrigerators, etc.
Flat Brush For cleaning ovens, microwaves, showers. bathtubs, faucet fixtures, tiles, toys, refrigerators, etc.
Ironing Brush For cleaning shower glass, doors, mirrors, glass; removing scum, grime; ironing garment, etc.
Window Cleaning Tool For cleaning shower glass, doors, mirrors glass, etc.
Small Cloth For garment cleaning or soft surface: cleaning etc.
Scraping Tool For scraping grease, residue or other substances from surfaces such as stove tops and ovens.
Large Round Brush For cleaning ovens, microwaves, showers, bathtubs, faucet fixtures, tiles, toys. refrigerators, etc.

TO USE AS A STEAM MOP

TO USE AS A STEAM MOP

  1. Before assembling the steam mop, make sure the power switch is in "OFF" position, and the appliance is not connected with the electrical outlet.
  2. Connect the parts in the sequence as shown in PARTS DESCRIPTION section. Always align the Release Button on the metal tube and mop head with the openings on the main body and handle so as to correctly connect the parts together.
  3. Attach the mop pad on the mop head. Install the carpet glider on the mop head when using on carpets. Do not use the mop without the mop pad.
  4. Before start steam cleaning, the floor has been swept or vacuumed.

  • Do not use the steam mop on unsealed wood floors.
  • Do not let the steam mop stand on any wood floor for an extended period of time. This could cause the wood grain to expand. Test an isolated small area of the surface to be cleaned before using on the whole area. Generally, when mopping wood floors, you need to turn down the amount of steam.
  • Take extra care when using the steam mop on surfaces that have been treated with wax, as the heat and steam may remove the wax or the sheen.
  • Take extra care when using the steam mop on vinyl, linoleum or any other heat-sensitive floors, as too much heat can melt the glue on the floor.
  • When mopping ceramic tile, the amount of steam can be turned up.

We recommend cleaning a small area first in an inconspicuous area of the floor and checking the floor manufacturer's use and care instructions for the surface to ensure suitability for steam cleaning.

TO USE AS A HANDHELD STEAM CLEANER

  1. Before assembling the handheld steam cleaner, make sure the power switch is in "OFF" position, and the appliance is not connected with the electrical outlet.
  2. Remove the handle from the main body.
  3. Choose the appropriate accessory as shown in the Accessory List. Connect the accessory with the adaptor by inserting the tip of adaptor into the opening of the accessory and turning the adaptor clockwise to lock into place.
  4. Align the Release Button on the accessory adaptor with the opening on the main body and insert the adaptor into the opening on the main body.
    TO USE AS A HANDHELD STEAM CLEANER

NOTE:

  • To remove accessory adaptor from the main body, press Release Button on the accessory adaptor.
  • When using the window cleaning tool, ironing brush is used to link the adaptor with it.

CLEANING AND STORAGE

  • Always switch off the appliance, disconnect the appliance from the power source, and let it cool thoroughly before cleaning.
  • Wipe the exterior of the appliance with damp cloth.
  • The accessories can be washed in water with mild detergent.
  • Never immerse the appliance in water or any other liquids.
  • Never use abrasive cleansers, scouring pads, metal brushes, as they may damage the surface.
  • Ensure the appliance is completely cool and dry before storage.
  • Do not wrap the cord around the appliance, as this will damage the cord.
  • Keep the appliance in a cool, dry place.

TECHNICAL INFORMATION

Product Steam Mop
Model EM-516
Rated Voltage 110-120V 60Hz
Material ABS / PP / PA
Water Tank Capacity 300 ml / 10 fl oz
Steam Generation Delay Time 25-30 seconds
Rated Power 1100-1200W
Cord Length 20 ft
Product Dimensions 13.2 x 6.3 x 44.7 inches
Package Dimensions 8.7 x 7.3 x 19.3 inches
Net Weight 3.7 Ibs
Gross Weight 5.5 Ibs

Copyright 2018-2022 Secura, Inc. All rights reserved.
www.thesecura.com
