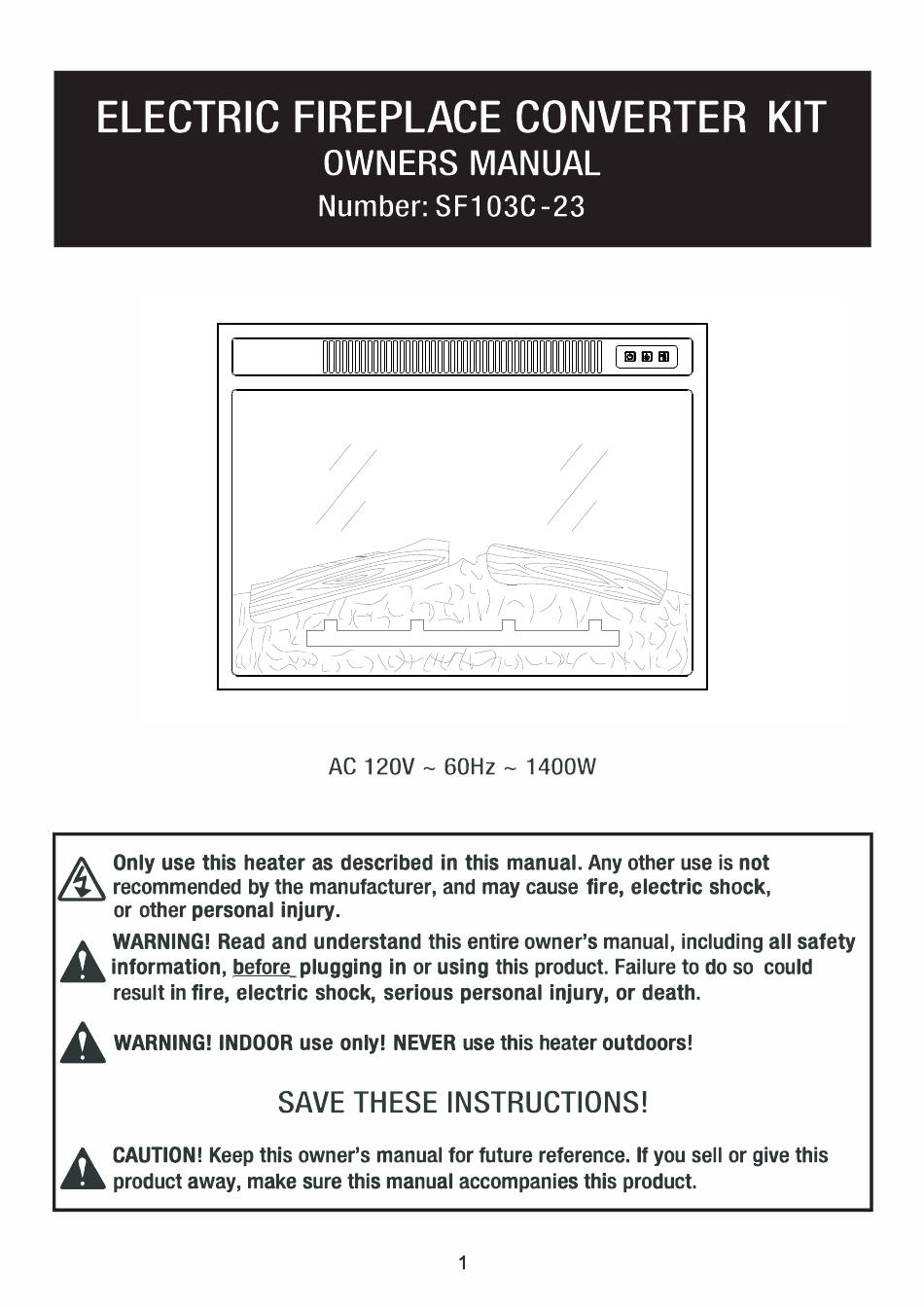

Summary of Contents for Manhattan Comfort SF103C-23D
- Page 2 IMPORTANT SAFETY INFORMATIONI WARNING • ALWAYS keep electric cords, home furnishings, drapes, clothing, papers, or other combustibles at least 3 feet (O.9m) away from the front of this heater, and away from the bottom, sides, and rear of this heater. •...
- Page 3 WARNING • Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside! • ALWAYS disconnect this unit from the power supply before performing any assembly or cleaning, before replacing the light bulb, or before relocating the electric fireplace. • NEVER use this heater in bathrooms, laundry rooms, or any other location where the heater could fall into a bathtub or pool, become damp or come in contact with water.
-
Page 4: Table Of Contents
Table of Contents Table of Contents ............... 4 Pre-installation ..............6 Safety Information .............. 4 Electrical Specifications ............6 Important Safety Information ............. 4 Package Contents ..............6 Save These Instructions ............4 Assembly ................7 Safety Information (continued) ..........5 Operation ................ -
Page 5: Safety Information (Continued)
Safety Information (continued) GROUNDING INSTRUCTIONS FCC STATEMENT This equipment has been tested and found to comply with the limits DANGER: Improper connection of the equipment-grounding for a Class B digital device, pursuant to Part 15 of the FCC Rules. conductor can result in a risk of electric shock. Check with a These limits are designed to provide reasonable protection against qualified electrician or serviceman if you are in doubt as to harmful interference in a residential installation. -
Page 6: Pre-Installation
Pre-installation ELECTRICAL SPECIFICATIONS □ Voltage: 120 VAC, 60 Hz □ Watts: 1400 Watts TOOLS REQUIRED Phillips screwdriver (not provided) HARDWARE INCLUDED � NOTE: Hardware not shown to actual size. f_zz Description Part Quantity Screw 12 + 3 extra PACKAGE CONTENTS Part Description Quantity... -
Page 7: Assembly
Assembly Attaching the metal trims □ Fasten the top trim (X) to the top of the fireplace insert (W) with two screws (ZZ). Make sure that the right angle side points towards the front of the unit. □ Align and attach two side trims ( Y) to both sides of the fireplace insert (W) respectively with the right angle side facing the front of the unit, using two screws (ZZ) per trim. -
Page 8: Operation
Operation Identifying the control panel Using the main power button The control panel is located on the top right corner of the Press the power button (1) to turn the fireplace/heater unit □ □ fireplace/heater unit. on and off. Press the power button (1) once to turn the unit on. - Page 9 Maintenance Instructions WARNING: Always disconnect from the power supply before cleaning the heater. First turn off the main power. Then remove the electrical plug from the wall outlet. WARNING: Do not use this fireplace insert if any part of it has been under water.
Need help?
Do you have a question about the SF103C-23D and is the answer not in the manual?
Questions and answers
My heater will not stay on. What can I do?
Ensure the power supply is connected and the plug is securely inserted into the outlet. Check if the electrical switch controlling the heater is turned on. If the issue persists, verify that the unit has not been exposed to water, as this may require professional servicing. Also, clean any accumulated dust from the heater, as buildup can affect performance. If the problem continues, contact customer service.
This answer is automatically generated
How to replace the bulb. I cannot access it
