Jasco UltraPro 45183 Manual

45183

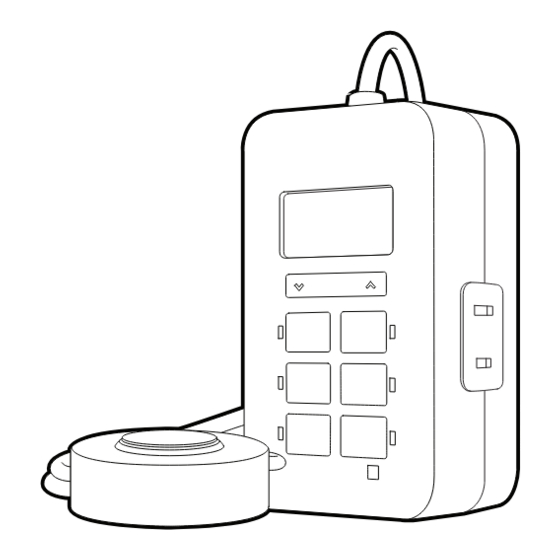

24-HOUR INDOOR
PLUG-IN TIMER W/5 FT.
TETHERED BUTTON
SET TIME
1. If no numbers are visible on-screen, plug timer
into an outlet and charge for 1 hour. Once
charged, press the reset ( ) button in the
lower-right corner using a toothpick or pencil.
2. Use up ( ) and down ( ) arrows to set
current time, take note of AM or PM time.
Note: After timer is charged, it can be removed from
the outlet for easy programming. Return to outlet when
finished. Timer must be plugged in for indicator lights
to function.

CHOOSE YOUR CUSTOM ON/OFF TIMES

Press ON TIME, then use up ( ) and down (
arrows to set on time. If you set the on time earlier
than the current time, it will not activate until the next
day at the time scheduled.
Press OFF TIME, then use up (
arrows to set off time.
Use the ON/OFF override to turn on the timer if
needed immediately.
When using on and off times, make sure the amber
light is lit next to the button. The amber lights
only illuminate when the timer is plugged into a
wall outlet.

PRESET SCHEDULES

There are three preset times that run individually or
simultaneously. Choose from the following:
EVENING (5pm-12am)
MORNING (5am-8am)
ALL NIGHT (6pm-6am)
When a preset or custom program is chosen, the
amber LED indicator light will turn on.
If a preset schedule does not fit your needs, a custom
ON/OFF time can be used to modify the preset schedule.
Example: Using "evening" (5pm-12am) and adding
an off time of 10pm will create a 5pm-10pm
timer schedule.
You may select multiple preset times.

COUNTDOWN MODE

Press COUNTDOWN, then use up (
arrows to set from 1 minute to 24 hours.
The last countdown time set will become the
new default until it is manually changed. When in
countdown mode, time begins when tethered button
is pressed on.
Note: When daylight saving time occurs, use the down
( ) and up ( ) arrows to adjust the time by 1 hour.

TETHERED OVERRIDE BUTTON

If a scheduled program is running and the device is
on, press the tethered button to turn off the device. It
remains off until the next scheduled program begins or
the button is pressed again.
If a scheduled program is running and the device is
off, press the tethered button to turn on the device. It
remains on until the next scheduled program ends or the
button is pressed again.
If countdown mode is activated, the device turns on for
the set time or until the tethered button is pressed again.

READ IT OR WATCH IT

Read instructions or watch easy-to-follow video.
Scan QR code or visit http://bit.ly/2XF7yPm
CLOCK
10: 10
ON TIME
EVENING
5PM 12AM
ALL NIGHT
6PM 6AM
CLOCK
)
10: 10
) and down ( )
ON TIME
CLOCK
10: 10
EVENING
5PM 12AM
ALL NIGHT
6PM 6AM
ON TIME
CLOCK
10: 10
EVENING
5PM 12AM
ALL NIGHT
6PM 6AM
ON TIME
EVENING
5PM 12AM
ALL NIGHT
6PM 6AM
CLOCK
10: 10
ON TIME
EVENING
) and down ( )
5PM 12AM
ALL NIGHT
6PM 6AM
FCC/IC
Suppliers Declaration of Conformity | Model #: 45183 | Jasco Products Co.,
10 E. Memorial Rd., Oklahoma City, OK 73114, www.byjasco.com
This device complies with Part 15 of the FCC and Industry Canada license-exempt RSS
standards. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from which the receiver
is connected.
— Consult the dealer or an experienced radio/TV technician for help.
COUNTDOWN
CAN ICES-3(B)/NMB-3(B)

SPECIFICATIONS

125V 50/60Hz
OFF TIME
15A 1875W General/Resistive
10A 1250W Tungsten
MORNING
5PM 8AM
1/2HP
Works with LED, CFL, incandescent and halogen bulbs
COUNTDOWN
RESET
R
BUTTON
COUNTDOWN
OFF TIME
COUNTDOWN
MORNING
5PM 8AM
COUNTDOWN
R
OFF TIME
COUNTDOWN
MORNING
5PM 8AM
COUNTDOWN
R
OFF TIME
MORNING
5PM 8AM
COUNTDOWN
R
COUNTDOWN
RISK OF ELECTRICAL
SHOCK
OFF TIME
• PLUG DIRECTLY INTO AN
ELECTRICAL OUTLET
MORNING
5PM 8AM
• DO NOT USE IN WET
LOCATIONS
COUNTDOWN
• USE INDOORS ONLY
R
• UNPLUG TIMER BEFORE
CLEANING
• KEEP CHILDREN AWAY
MADE IN CHINA/HECHO EN CHINA
Distributed by Jasco Products Company LLC,
10 E. Memorial Rd., Oklahoma City, OK 73114.
This Jasco product comes with a two-year warranty.
Visit www.byjasco.com for warranty details.
Questions? Contact our U.S.-based Consumer Care at 1-800-654-8483 between
7AM-8PM, M-F, Central Time.
©JASCO 2020 | 45183 | 08/20/20 v2

WARNING

RISK OF FIRE

• DO NOT USE TO CONTROL
APPLIANCES THAT
CONTAIN HEATING
ELEMENTS (COOKING
APPLIANCES, HEATERS,
IRONS, ETC.)
• DO NOT EXCEED
ELECTRICAL RATINGS
