User Manual

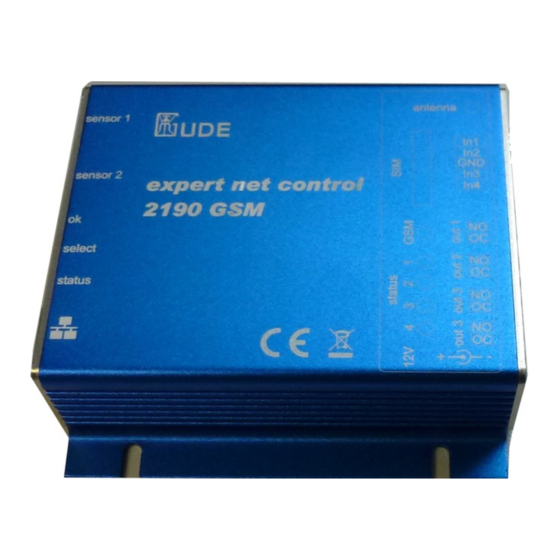

expert net control 2190 GSM
expert net control 2110
© 2013 Gude Analog- und Digitalsysteme GmbH
Manual Ver. 1.0.3
valid from Firmware Ver. 1.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the expert net control 2190 GSM and is the answer not in the manual?

Questions and answers

Related Manuals for GÜDE expert net control 2190 GSM

Summary of Contents for GÜDE expert net control 2190 GSM

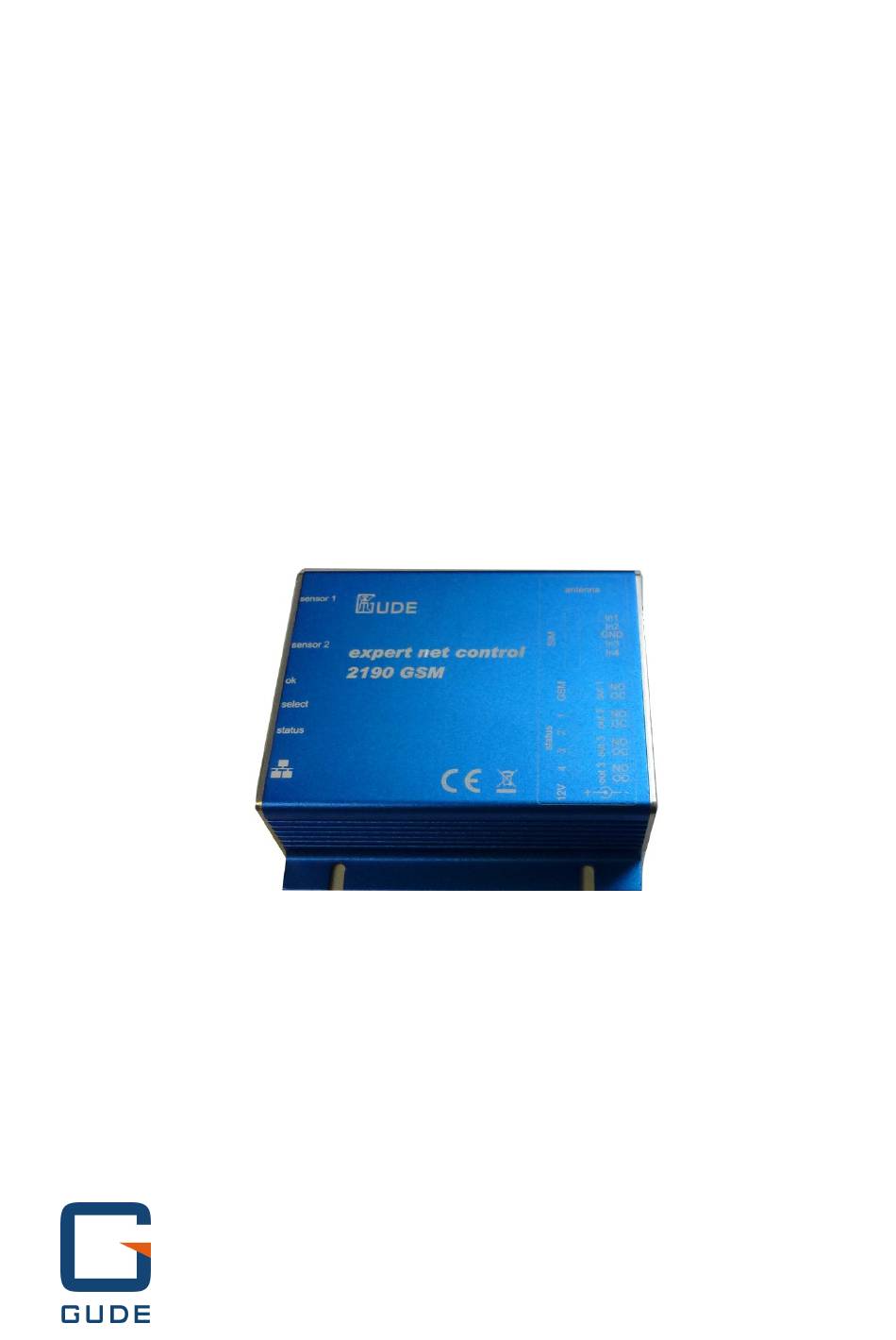

  • Page 1 User Manual expert net control 2190 GSM expert net control 2110 © 2013 Gude Analog- und Digitalsysteme GmbH Manual Ver. 1.0.3 valid from Firmware Ver. 1.1.0...
  • Page 2 Have your Gude devices always in view - and in control. The new Android app can be downloaded free from the Google Play Store. Just search for "Gude Control". (iPhone app coming soon) Expert Net Control 2110 and 2190 © 2013 Gude Analog- und Digitalsysteme GmbH 19.11.2013...

  • Page 3: Table Of Contents

    Expert Net Control 2110 and 2190 Table of contents Table of contents Chapter 1 Device Description Security Advice Content of Delivery Description Installation Status LED Bootloader Mode Firmware-Update Technical Specifications Sensor Chapter 2 Operating Operating the device directly Operating by Webinterface 2.3.1 2.3.2 Voice Call...
  • Page 4 Expert Net Control 2110 and 2190 Table of contents 3.2.11 Configuration - GSM Chapter 4 Protocols SNMP Syslog Email Chapter 5 Support Contact Declarations of conformity © 2013 Gude Analog- und Digitalsysteme GmbH...

  • Page 5: Chapter 1 Device Description

    Expert Net Control 2110 and 2190 Device Description Device Description Security Advice The device must be installed only by qualified personnel according to the following installation and operating instructions. The manufacturer does not accept responsibility in case of improper use of the device and particu- larly any use of equipment that may cause personal injury or material damage.

  • Page 6: Installation

    Expert Net Control 2110 and 2190 Device Description Control and monitor the device via Ethernet with an integrated web server and SNMP (v1 and v2c). The ENC 2190 also has a built-in GSM modem, which allows the control of the device. One can thus control the ENC2190 via SMS, Data Call and Voice Call with DTMF tones.

  • Page 7: Status Led

    Expert Net Control 2110 and 2190 Device Description Status LED The Status LED shows different states of the device: red: Device is not connected to the Ethernet orange: Device is connected to the Ethernet, TCP/IP settings are not allocated green: Device is connected to the Ethernet, TCP/IP settings allocated periodic blinking: Device is in Bootloader mode.

  • Page 8: Firmware-Update

    Expert Net Control 2110 and 2190 Device Description Abandonment of the Bootloader Mode via push button: Hold both buttons for 3 seconds (only if the device has 2 buttons) Remove and connect the power supply without operating a button by Software: Start GBL_Conf.exe Do a network search with the "Search"...

  • Page 9: Technical Specifications

    Expert Net Control 2110 and 2190 Device Description Technical Specifications Interfaces 1 x Ethernet port (RJ45) 1 x Connector for AC Adaptor 1 x 5 pcb terminal block with 4 inputs and common ground 2 x 4 pcb terminal blocks with 2 relay outputs (24V, 1A) 2 x RJ45 for external sensor 1 x SMA Connector for GSM antenna (2190) 1 x SIM card slot (2190)
  • Page 10 Expert Net Control 2110 and 2190 Device Description Humidity/Temperature-Sensor 7102 Cable length ˜ 2m Connector RJ45 Measurement range Temp: -20 to +80°C, ±0,5°C (maximum) and ±0,3°C (typical) Humidity: 0-100%, ±3% (maximum) and ±2% (typical) Temperature-Sensor 7201 Cable length max. 30m Connector RJ45 Socket for CAT5 cable Measurement range...

  • Page 11: Chapter 2 Operating

    Expert Net Control 2110 and 2190 Device Description Operating Operating the device directly The current status of the output is indicated by the color of the LED. Red indicates that the output is off, green shows that the output is on. On the device are the buttons "select" and "ok". If you press "select", the LED will blink for the first output, ie the output is selected.

  • Page 12: Operating By Webinterface

    Expert Net Control 2110 and 2190 Operating Operating by Webinterface Access the web interface: http://"IP-address" and log-in. The website offers an overview of the port status, measurements and sensors, if they are connected. Furthermore, here are buttons to control the state of the ports. The ports can be switched manually with the "On"...

  • Page 13: Gsm

    Expert Net Control 2110 and 2190 Operating Optionally the device can be switched via a Perl script or external tools like wget. More information is available on our support wiki at www.gude.info / wiki. To use the GSM functions, there must be an activated SIM card in the SIM card slot located on the front of the unit.

  • Page 14: Sms

    Expert Net Control 2110 and 2190 Operating 5. Activate the EPC NET GSM Power up the device. In factory default state, the GSM module is deactivated. This is a security setting in delivery to avoid accidentally locking a SIM card with the wrong code.
  • Page 15 Expert Net Control 2110 and 2190 Operating %port state p1111 Answer: Device name: epc007 Powerport state: Port 1 on Account credit: Credit: 130.50 Eur 2.3.1.1.2 Powerport: Simple Switching Format %port [on, off, toggle] [portnumber] {Portcode/Mastercode} Examples: Switch off Power Port 2, Mastercode 2222 %port off 2 m2222...
  • Page 16 Expert Net Control 2110 and 2190 Operating Example: %port batchmode 1 13 m0123 Answer: Device name: epc007 Switch sequence: Port 1 off -> t3 -> on Account Credit: Credit 130.50 2.3.1.1.4 Powerport: Advanced Switching (coldstart) The command 'coldstart' turns off all Powerports at once. Then it switches the ports temporally delayed on again (according to the current power port configuration), as if the device performs a cold start.
  • Page 17 Expert Net Control 2110 and 2190 Operating 2.3.1.1.6 Configuration: Write Format %config set [config-name] [config-value] {Mastercode} [config-name] code telbook gsmstatus temp response error portname adminnum tempmin tempmax Example: %config set code off m1234 Answer: Config: code = off 2.3.1.1.7 Configuration: All Parameter Description SMS [config-name] SMS [config-value]...
  • Page 18 Expert Net Control 2110 and 2190 Operating Description SMS [config-name] SMS [config-value] default for e-mail mes- sages Access only for mastergsm on, off admin Autosync autosync on, off DTMF for calltone on, off VoiceCall Voice for callvoice on, off VoiceCall Phone number adminnum max.
  • Page 19 Expert Net Control 2110 and 2190 Operating Query the state of all sensors, Mastercode 0000 %sensor state m0000 Answer: Device name: epc007 Port: Sensor port 1 Sensor name: Temperature Value: NC Port: Sensor port 2 Sensor name: Temperature Value: T=22.79C Value: RH= 76.64% Account credit: Credit: 130.50 Eur 2.3.1.1.10 Query Device State...

  • Page 20: Voice Call

    Expert Net Control 2110 and 2190 Operating Switch sequence: [s] [powerport] [c] -> wait t -> [c] [powerport] = 'Port 1' .. 'Port 99' (or Config:portname) [c] = on, off, toggle, coldstart Account credit: [x] Config: name = value, [...], name = value command parse error 2.3.1.2.2 Status Change Report SMS A SMS status change request reply looks like:...
  • Page 21 Expert Net Control 2110 and 2190 Operating You can combine multiple commands into a command. Just type the commands one after another and terminate it as a whole with #. *[Command 1][Command 2]...[Command Some commands may require the Port or MasterCode. These codes have to be added at end of the command Eample: Navigate from Main Menu into the Status Menu using mastercode 1111...
  • Page 22 Expert Net Control 2110 and 2190 Operating 2.3.2.1.1 Power Port Menu Here you can choose and switch Power Ports or request the status of a Power Port. Example: - Switch to Power Port menu - Choose Power Port 5...
  • Page 23 Expert Net Control 2110 and 2190 Operating *01# - Switch on Or connected into one command: *1501# Example: - Choose Power Port 7 *23# - Activate Batchmode No.23 for Power Port 7 - Powerport 7 on, wait t3, off Example: - Choose Power Port 3 *03# - Request state of Power Port 4...

  • Page 24: Power Port Commands

    Expert Net Control 2110 and 2190 Operating [in] - Input-Port Number - Values: '1' .. '9' [is] - Input-Port State - Values: '0' .. '1' (on/off) [sq] - Status Query - Values '01' .. '89' Special Menu Commands (90 .. 00) - 99 : Jump to Main Menu - 98 : return to prev Menu - 97 : Help...
  • Page 25 Expert Net Control 2110 and 2190 Operating Port Com- Command Description mand Batchmode: on, Powerport on, wait t1, Power Port off wait t1, off Batchmode: on, Powerport on, wait t2, Power Port off wait t2, off Batchmode: on, Powerport on, wait t3, Power Port off wait t3, off Batchmode: on, Powerport on, wait t4, Power Port off...

  • Page 26: Security

    Expert Net Control 2110 and 2190 Operating Time in seconds Security 2.3.4 Please note that the device has no security options set in the delivery settings, in order to allow a quick start. For a later use we strongly recommend that you activate the phone book check and code queries.

  • Page 27: Configuration By Software

    Expert Net Control 2110 and 2190 Configuration Configuration by Software To view and change the network settings, you can use the program GBL_Conf.exe. The program is available for free on our website www.gude.info and is also available on the accompanying CD-ROM. You can also use GBL_Conf.exe to install firmware updates and trigger a reset to factory defaults.

  • Page 28: Configuration Via Webinterface

    Expert Net Control 2110 and 2190 Configuration Configuration via Webinterface Access the web interface: http://"IP-address" and log-in. Use the "Configuration" Tab to enter the configuration menu.

  • Page 29: Configuration - Output Ports

    Expert Net Control 2110 and 2190 Configuration Configuration - Output Ports 3.2.1 Choose Output Port to configure: This field is used to select the output ports to be configured. Label: You can assign a name up to 15 characters for each of the output ports. Using the name, an identification of the the device connected to the port can be facilitated.

  • Page 30: Configuration - Watchdog

    Expert Net Control 2110 and 2190 Configuration Configuration - Watchdog 3.2.2 The watchdog feature enables to monitor various remote devices. Therefore either ICMP pings or TCP pings are sent to the device to be monitored. If these pings are not answered within a certain time (both the time and the number of attempts can be set), the port is reset.
  • Page 31 Expert Net Control 2110 and 2190 Configuration Watchdog action: When selecting reset, the Port will be turned off and switched on again after a Re- set Duration. The setting off leaves the Port in the off state. Watchdog type: Here you can choose between the monitoring by ICMP pings or TCP pings. ICMP Pings: The classic ping (ICMP echo request).

  • Page 32: Configuration - Input Ports

    Expert Net Control 2110 and 2190 Configuration Configuration - Input Ports 3.2.3 Set Input port label: In this input form an individual name for the digital input can be assigned, that is easier to remember, such as "Input" or "basement window" etc. Configuration - IP Address 3.2.4 Hostname: Here you can enter a name with up to 15 characters.

  • Page 33: Configuration - Ip Acl

    Expert Net Control 2110 and 2190 Configuration Configuration - IP ACL 3.2.5 Reply ICMP ping requests: If you enable this feature, the device responds to ICMP pings from the network. Enable IP filter: Enable or disable the IP filter here. The IP filter represents an access control for in- coming IP packets.

  • Page 34: Configuration - Http

    Expert Net Control 2110 and 2190 Configuration Configuration - HTTP 3.2.6 HTTP port: Here can be set the port number of the internal HTTP. Possible values ? ? a re from 1 to 65534 (default: 80). If you do not use the default port, you must append the port number to the ad- dress with a colon to address the device from a web browser.

  • Page 35: Configuration - Sensors

    Expert Net Control 2110 and 2190 Configuration Configuration - Sensors 3.2.7 Choose sensor port: Selects a type of sensor to configure it. The first digit "1" indicates the number of the sensor port (only important for devices with more than one sensor port). This is followed by the sensor name (eg 7002 for the hybrid sensor), a letter for the sub-type sensor and the changeable sensor name.

  • Page 36: Configuration - Snmp

    Expert Net Control 2110 and 2190 Configuration 49.1 °C - is below the upper limit, but in the hysteresis range 49.0 °C - is below the upper limit, but in the hysteresis range 48.9 °C - a message is generated for underrunning the upper limit inclusive hysteresis range Configuration - SNMP 3.2.8 SNMP-get: Enables the acceptance of SNMP-GET commands.

  • Page 37: Configuration - Syslog

    Expert Net Control 2110 and 2190 Configuration Configuration - Syslog 3.2.9 Enable Syslog: Enables the usage of Syslog Messages. Syslog Server: If you have enabled Syslog Messages, enter the IP address of the server to which the syslog information should be transmitted. 3.2.10 Configuration - E-Mail Enable E-Mail: Activates the email dispatch of messages.

  • Page 38: Configuration - Gsm

    Expert Net Control 2110 and 2190 Configuration Recipient address: The e-mail address of the recipient. Enable authentification: Select this option if the e-mail server requires authentication. Username: User name that is registered with the SMTP e-mail server. Set new password: Enter the password for the login to the e-mail server. Repeat password: Enter the password again to confirm it.
  • Page 39 Expert Net Control 2110 and 2190 Configuration Enable DTMF/SMS access codes: When activated, the mastercode or portcode is needed to switch a port. 3.2.11.2 Configuration - GSM Misc Enable phonebook check: If selected, only numbers registered to the phonebook can access the GSM module.
  • Page 40 Expert Net Control 2110 and 2190 Configuration 3.2.11.3 Configuration - GSM Phonebook The phonebook can be used to store telephone numbers under a name. When the phonebook is ac- tivated only stored numbers can access the device. Furthermore, the "FreeCall" option can be assigned to every number in the phone book. If this num- ber is recognized, a preselected action is executed without accepting the call.

  • Page 41: Chapter 4 Protocols

    Expert Net Control 2110 and 2190 Configuration 3.2.11.5 Configuration - GSM Provider This menu only appears when you insert a SIM card from a phone company that operates outside of Germany. To receive necessary information, contact your wireless service provider. IMSI: Your IMSI number.

  • Page 42: Syslog

    Expert Net Control 2110 and 2190 Protocols To query via SNMP you need a Network Management System, such as HP OpenView, OpenNMS, Nagios, etc., or the command line tools of the Net-SNMP software. SNMP-communities SNMP authenticates requests by communities. A community is a string that acts like a password for a read or a write SNMP access.

  • Page 43: Chapter 5 Support

    Expert Net Control 2110 and 2190 Protocols 250-SIZE 120000000 250 HELP Support You will find the latest product software on our website at www.gude.info available for download. If you have further questions about installation or operation of the unit, please contact our support team.

  • Page 44: Declarations Of Conformity

    Expert Net Control 2110 and 2190 Support Declarations of conformity EG Konformitätserklärung EC Declaration of Conformity Der Hersteller Gude Analog- und Digitalsysteme GmbH Eintrachtstr. 113 The manufacturer 50668 Köln (Deutschland) erklärt hiermit, dass die folgenden Produkte / hereby declares that the following products Expert Net Control 2190 Produktbezeichnung Product name...
  • Page 45 Expert Net Control 2110 and 2190 Support EG Konformitätserklärung EC Declaration of Conformity Der Hersteller Gude Analog- und Digitalsysteme GmbH Eintrachtstr. 113 The manufacturer 50668 Köln (Deutschland) erklärt hiermit, dass die folgenden Produkte / hereby declares that the following products Expert Net Control 2110 Produktbezeichnung Product name...
  • Page 46 Expert Net Control 2110 and 2190 © 2013 Gude Analog- und Digitalsysteme GmbH 19.11.2013...
