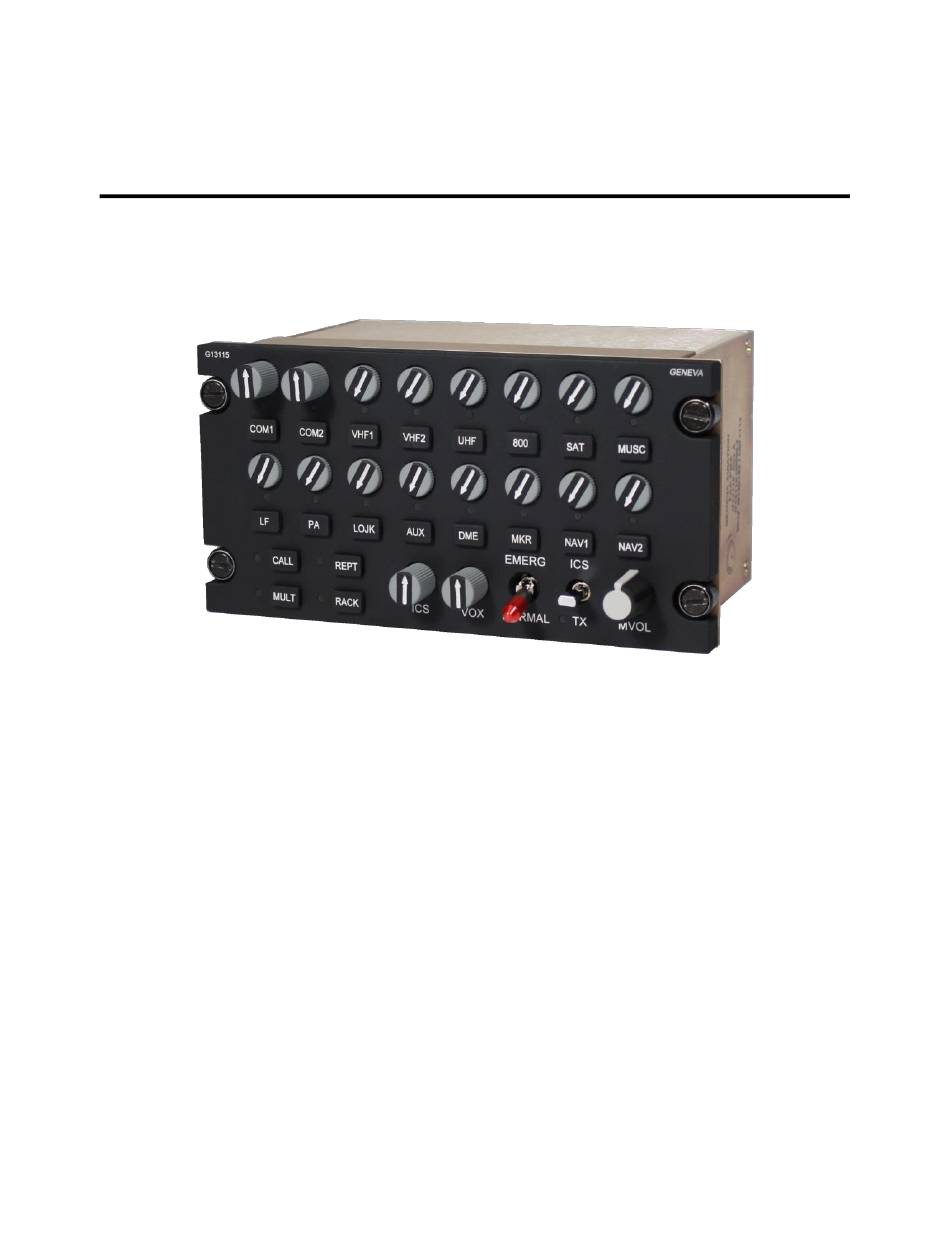

- Page 1 Geneva Aviation, Inc. www.GenevaAviation.com GA182-11 Revision D, 4/23/2014 P139-HD Digital Audio System Eurocopter EC135 Installation Manual GA182-11 Rev D P139-HD Digital Audio System 1 of 18...
- Page 2 Geneva P139-HD Digital Audio System, under STC SR00521SE. 1.2. Installation is to be accomplished in accordance with Geneva Aviation instructions. Throughout the installation of this product it is necessary to utilize proper aviation practices. Be sure that the installation of this product is in compliance with the aircraft manufacturer’s limitations and also that it...
- Page 3 The P139-HD Digital Audio Router contains no user serviceable internal components. Do not disassemble router or the factory warranty will be voided. For service, return the unit to Geneva Aviation. 1.3. There are three types of P139-HD Audio Systems that the installer may choose to install at their discretion.
- Page 4 1.7. The aircraft into which this product will be installed may be a new aircraft or an aircraft that has been in service. The configuration of the wiring and cabling will vary from aircraft to aircraft. The installation of the Geneva Aviation Audio System should use existing wire and cable runs when possible as it will not interfere with the existing aircraft wiring.
-
Page 5: System Overview

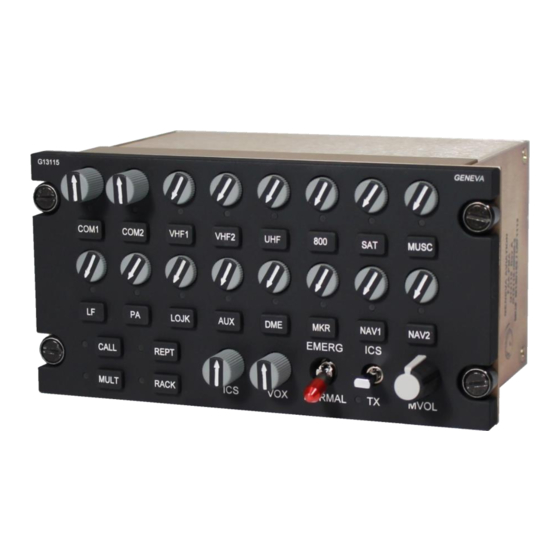

2.2. Control Panels G13115 and G13116 may be used interchangeably, depending on the control functions desired and number of radios installed. 2.3. It is the installer’s responsibility to document the system configuration as installed for maintenance purposes. GA182-11 Rev D P139-HD Digital Audio System 5 of 18... - Page 6 Geneva Aviation, Inc. www.GenevaAviation.com Component Installation & Hookup J6 NETWORK PORT J7 MEMORY PORT Figure 2 G13000 Router Connector Layout GA182-11 Rev D P139-HD Digital Audio System 6 of 18...
- Page 7 3.1.8. The Router contains no user serviceable internal components. Do not disassemble router or the factory warranty will be voided. Return the unit to Geneva Aviation for service. GA182-11 Rev D P139-HD Digital Audio System 7 of 18...
- Page 8 Geneva Aviation, Inc. www.GenevaAviation.com J8 NETWORK PORT J9 MEMORY PORT Figure 3 G13160 Router Connector Layout GA182-11 Rev D P139-HD Digital Audio System 8 of 18...
- Page 9 3.2.10. The Router contains no user serviceable internal components. Do not disassemble router or the factory warranty will be voided. Return the unit to Geneva Aviation for service. GA182-11 Rev D P139-HD Digital Audio System 9 of 18...
- Page 10 Panel as shown in Figure 4 and drawing G13130. This installation also provides an option (at the installer’s discretion) for mounting an AA35-100 Audio Mixer (MUX) or the Geneva G13045 Audio Mixing Amp (AMA). Router G13000 is shown in drawing G13130 and in the Figure 4.
- Page 11 3.3.3. Note: for the G13160 Router replace in Figure 5 the following items: G13009 with G13161; G13009-3 with G13161-3; G13006-2 with G13161-4 and use (3) MS24693S51 screws to install; use (2) NAS622CE2 Support Hooks. GA182-11 Rev D P139-HD Digital Audio System 11 of 18...
- Page 12 G13162 for the detailed wiring schematic used in this installation. 3.3.5. Be sure to carefully document the Radios and Control panels as installed and their related connections for future maintenance and troubleshooting purposes. GA182-11 Rev D P139-HD Digital Audio System 12 of 18...
- Page 13 The G13115NS version does not have an EMERG/NORMAL switch and must not be used as a pilot or copilot primary panel. GA182-11 Rev D P139-HD Digital Audio System 13 of 18...
- Page 14 ICS switch and transmit switches on the cyclic and/or foot switches. 3.7.2. For each passenger, a unique Passenger Headset Group is needed. The Passenger Headset Group consists of the passenger’s headset jack, an ICS switch and a transmit switch. GA182-11 Rev D P139-HD Digital Audio System 14 of 18...
- Page 15 There is normally no need for any type of universal radio adapter between an audio device and the router. GA182-11 Rev D P139-HD Digital Audio System 15 of 18...
-
Page 16: Functional Check
4.2 and 4.3 for Copilot position and COM2 respectively. 4.5. Check all pilot, copilot and passenger audio control panels for proper audio levels and operation. Should adjustments be required, follow the instructions in document GA063-3. GA182-11 Rev D P139-HD Digital Audio System 16 of 18... - Page 17 5.7. Upon satisfactory completion of these load analysis tests, make an aircraft logbook entry that these tests have been performed satisfactorily in accordance with this STC. GA182-11 Rev D P139-HD Digital Audio System 17 of 18...
-
Page 18: Log Of Revisions
All Pages Initial Release 6/25/12 Updated 3.3 for G13115 & G13116 10/15/12 3, 8 Added 1.8; Added G13115NS and G13116NS to 3.3 6/13/13 Removed EC145 from manual 4/23/14 Added G13160 3-Board Router GA182-11 Rev D P139-HD Digital Audio System 18 of 18...
