Swidget S16008WA Quick Start Manual

20-40-60 Control Switch
Model No.: S16008WA (5A - 125VAC, 5VDC@2A)
MUST BE INSTALLED AND USED IN ACCORDANCE WITH ELECTRICAL CODES.
WARNING AND CAUTIONS:
• TO AVOID FIRE, SHOCK OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE
AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• Use only copper wire with this device. Do not use with aluminum wire.
• A single branch circuit shall supply the device.
•
• For INDOOR use only.
• When used with power output Swidget Inserts, use only appropriate Class 2 connectors with
interconnecting cables.
• Class 2 output connections are not intended for supporting products or appliances.
• If you are not sure about any part of these instructions, consult an electrician.
• Do not exceed total 5A - 125VAC rating.
• Maximum load types:
• LED/CFL = 300W
• Incandescent = 600W
• Motor = 1/3 HP
• To be used with a Swidget Insert installed at all times.
• ONLY to be used with APPROVED/CERTIIFED Swidget Inserts (see www.swidget.com for current listing
and approved vendors and distributors).
• Use only with listed Inserts designed for use with this switch.
DESCRIPTION:
The 20-40-60 Control Switch is a modular Smart Home enabled timer switch that can be wired for single pole or dry-contact
applications. The modularity allows a multitude of different functional Swidgets to be installed, creating unique new Smart Home
functionalities. Many of the Swidget Inserts can be used on their own, like a nightlight or USB charger, or they can connect to an
ever-growing number of systems via Wi-Fi, Z-Wave, or ZigBee protocols allowing you to control and monitor the switch. Inserts are
safely and easily installed/removed from the body of the Swidget 20-40-60 Switch without the use of any tools.
INSTALLATION:
1. TO AVOID FIRE, SHOCK OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE
POWER IS OFF BEFORE WIRING!
2. This device is to be installed in a wall box measuring at least 3"x2"x2.5" (standard single gang electrical wall box) AND
3. Wire the device as per the wiring diagram provided. Use the wire nuts provided. The wire nuts can accept three #14AWG
wires.
4. Connect device black wire to the hot wire (black) in the wall box.
5. Connect device white wire to the neutral wire (white) in the wall box.
6. Connect device red wires with the dry-contact control wires from the appliance being controlled (see diagram). For
single-pole operation, follow the single-pole wiring diagram as applicable.
7. This device must be properly grounded for shock protection. Connect the wall box ground wire (green or bare) to the
device green terminal screw. Tightening torque 2.1Nm (18 lbf-in).
8. Mount device to wall box using the provided screws. Attach wall plate (sold separately) and then restore power.
SWITCH CONTROLS:
Note: Swidget Insert is not required for normal Switch operation.
BUTTON UP
FUNCTION ON - 20 minute
countdown timer
LED STATUS
© 2021 Swidget Corp. The Swidget logo and "Power to live smart" are registered trademarks of Swidget Corp.
IMPORTANT SAFETY INSTRUCTIONS
UP x 2 UP x 3
ON - 40 minute ON - 60 minute
countdown timer countdown timer
SAVE THESE INSTRUCTIONS
UP x 4 UP x 5
Stay ON OFF

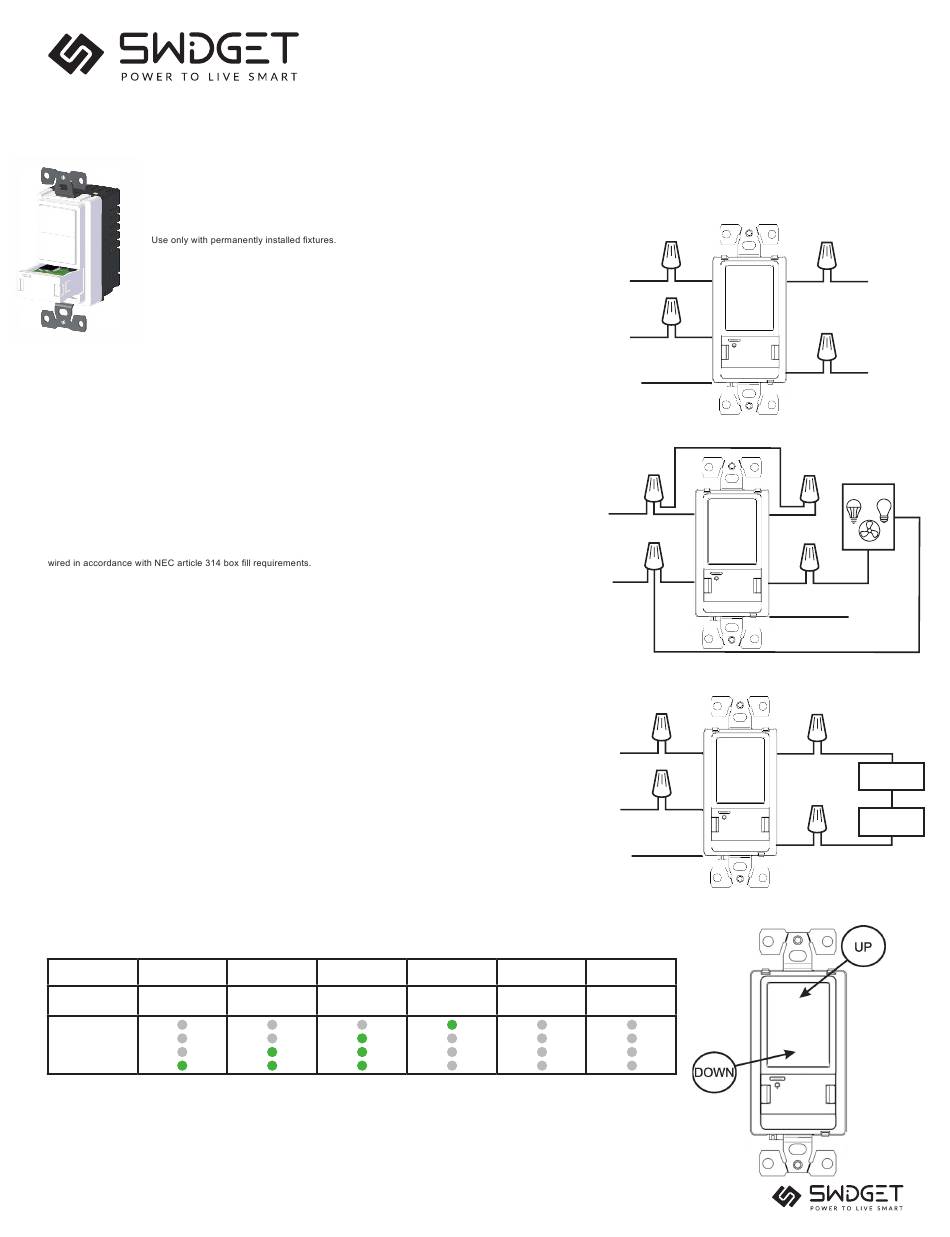

Wiring Diagram
Schema de cablage
Diagrama de Alambrado
Hot Hot
Fase Fase
Phase
Black/Noir/Negro
Red/Rouge/Rojo
Neutral Neutral
Neutre Neutre
Neutro Neutro
White/Blanc/Blanco
Ground
Terre
Tierra
Red/Rouge/Rojo
Green or bare
Vert ou nu
Single Pole/Dry Contact
Single Pole
Hot
Fase
Phase
Hot
Fase
Phase
Black/Noir/Negro
Red/Rouge/Rojo
Neutral Neutral
Hot
Neutre Neutre
Fase
Neutro Neutro
Phase
Red/Rouge/Rojo
Ground
Terre
Tierra
White/Blanc/Blanco
Single Pole, 125VAC
Hot Hot
Fase Fase
Phase
Black/Noir/Negro
Red/Rouge/Rojo
Neutral Neutral
Neutre Neutre
Neutro Neutro
White/Blanc/Blanco
Ground
Terre
Tierra
Red/Rouge/Rojo
Green or bare
Vert ou nu
Relay Load Connection
DOWN
OFF
DDS50N0117 REVA01
Switched1
Commute1
Conmutado1
Hot
Fase
Phase
Green or bare
Vert ou nu
Load
Source
