Secura SCG-903B - Automatic Burr Coffee Grinder Manual

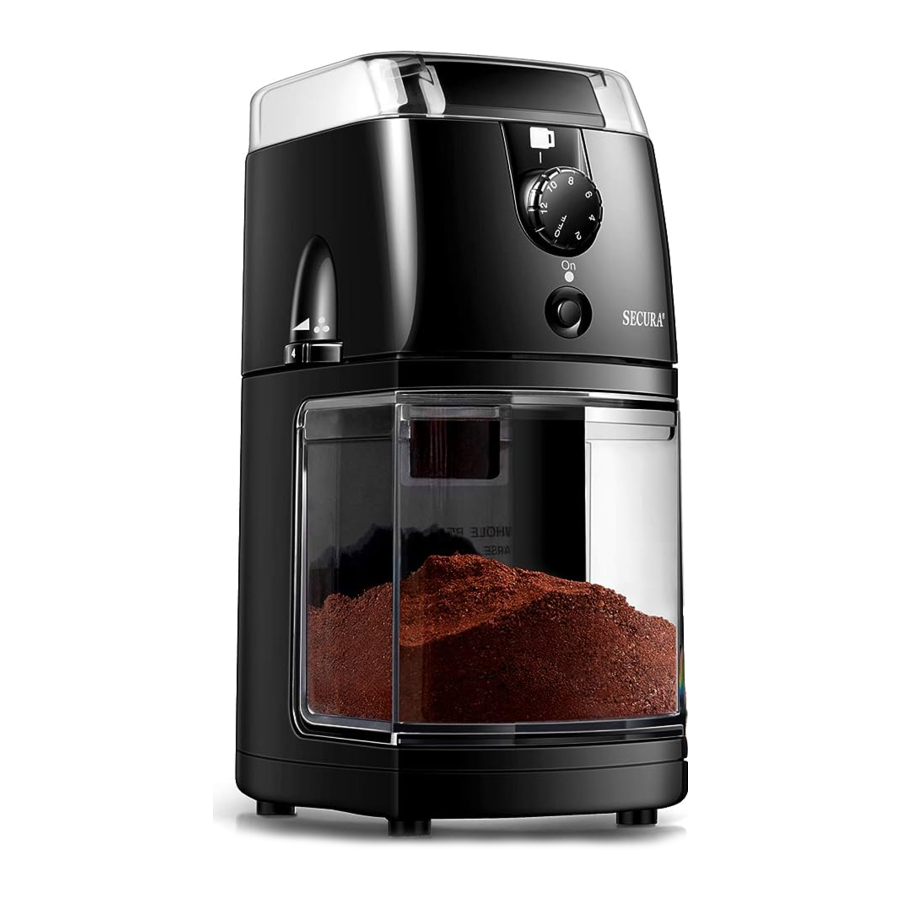

PARTS IDENTIFICATION

1. Ground Coffee Bin
2. Housing
3. Grind Adjustment Wheel
4. Hopper
5. Hopper Lid
6. Quantity Control Dial/Self-Timer
7. Start/Stop Button
8. Grind Adjustment Ring

BEFORE USE

Before using the appliance for the first time, or following periods of prolonged storage, it is necessary to clean the appliance thoroughly. See the Cleaning section.

Before switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

USING YOUR COFFEE GRINDER

1. Lift the Hopper Lid off the Hopper. Place the desired quantity of coffee beans into the hopper, up to 100g. Replace the lid.
   Note: Hopper Lid needs to be securely replaced in position otherwise the grinder won't turn on.
2. Slowly turn the Grind Adjustment Wheel to the desired setting. The fine setting is marked with number "4" on the Grinding Control Wheel and the coarse setting is marked with the number "0".
   Note: Occasional there are beans stuck in the grinder. Please turn the Grind Adjustment Wheel whilst the appliance is operating.
3. Ensure that the Ground Coffee Bin is correctly located on the pedestal. Plug in the power to the appliance.
   Note: There are safety switches located above and under the Ground Coffee Bin. The grinder won't turn on if Ground Coffee Bin is not securely placed in position.
4. Set the Quantity Control Dial/Self-Timer to the required setting. If the control is set to 12, it will grind for 55 seconds, enough coffee to serve 12 cups approximately. This should be used as a guide only, as it will vary depending upon taste, type and roast of bean and the grind selected. Intermediate settings will give a proportion of this time.
   Note: Grind size setting will change the output volume of grounds. Fine setting will produce less grounds and course setting will produce more grounds when the same cup setting/timer is used.
   Note: If the Quantity Control Dial/Self-Timer is set to "OFF", the grinder won't turn on.
5. Press the Start/Stop Button to start the grinder. The grinder will stop automatically when the selected volume/time has been reached. Alternatively, you may stop the grinding process at anytime by pressing the Start/Stop Button again.
6. Remove the Ground Coffee Bin and use the grounds as needed.
   Note: There are coffee dust left on the grind chamber chute located behind the removable Ground Coffee Bin. Before removing the Ground Coffee Bin, pat on the grinder to allow more grounds fall into the Ground Coffee Bin.

HELPFUL GRINDING HINTS FOR BEST RESULTS

• Secura Burr Coffee Grinder is fully automatic. Select the correct grind for the brew process you are using, espresso, automatic drip, or French press. There are 17 grind settings available. Rotate Grind Adjustment Wheel to the left to select fine grind and to the right for coarse grind.
• Select fine grind for espresso (rotate Grind Adjustment Wheel to the left), medium grind for drip makers and coarse grind for French press or percolator.
• The actual grind size for a particular setting will vary depending on many factors, including: degree of roast (light vs. dark), freshness, humidity, type of bean, oil content, etc. With use, you will discover which setting best meets your taste, brewing style and other personal coffee-making preference.
• For optimum freshness of your coffee beans, do NOT store in the bean hopper for extended periods of time.
• To avoid overheating the motor, do not grind more than 2 full whole bean hoppers or 2 full 12-cup cycles without a break. Allow the motor to cool to room temperature at least 2 minutes between cycles.
• The Hopper Lid and Ground Coffee Bin must always be in place when using this appliance.
• Use only coffee beans in this appliance.

CLEANING

Switch off and remove the plug from the power supply. Do not clean the appliance under running water and never immerse it in water.

To clean, wipe the appliance with a damp cloth and then with dry one. Brush away any coffee that may have accumulated around the ground coffee outlet.

The Hopper Lid and Ground Coffee Bin may be washed in hot soapy water and then dry thoroughly.

The top Grind Adjustment Ring can be removed by turning the Ring clockwise. Brush the grind head free of coffee residue using a clean dry brush. To replace the Grind Adjustment Ring, turn anti-clockwise until fi nger tight.

REPLACEMENT PARTS

• Grind Adjustment Ring
• Hopper Lid
• Ground Coffee Bin
• Cleaning Brush

SPECIFICATIONS
