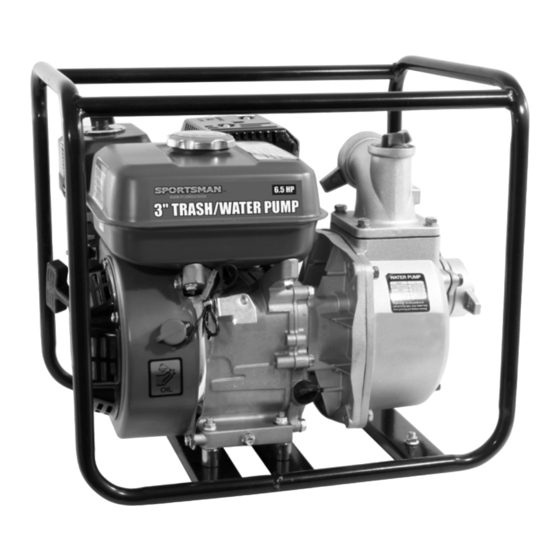

TWP365
3-Inch
Gasoline Trash/Water Pump
(76.2mm)
Assembly & Operating Instructions
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
HAVE QUESTIONS OR PROBLEMS? DO NOT RETURN THIS PRODUCT TO THE
RETAILER - CONTACT CUSTOMER SERVICE.
If you experience a problem or need parts for this product, visit our website
http://www.buffalotools.com or call our customer help line at 1-888-287-6981, Monday-Friday,
8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.
Advertisement
Table of Contents
Related Manuals for Buffalo Tools TWP365
Summary of Contents for Buffalo Tools TWP365
- Page 1 TWP365 3-Inch Gasoline Trash/Water Pump (76.2mm) Assembly & Operating Instructions READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
-
Page 2: Table Of Contents
MAINTENANCE ............................. 9 CHECKING THE OIL LEVEL ......................... 9 CHANGING THE OIL ........................... 10 AIR FILTER MAINTENANCE ........................10 SPARK PLUG MAINTENANCE ........................11 STORAGE ..............................11 PARTS DIAGRAM............................12 PARTS LIST ..............................12 TWP365 3-Inch (76.2mm) Gasoline Trash/Water Pump Assembly And Operating Instructions... -
Page 3: Recognize Safety Symbols, Words And Labels
CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION used without the safety alert symbol indicates a potentially hazardous situation, which, if not avoided, may result in property damage. TWP365 3-Inch (76.2mm) Gasoline Trash/Water Pump Assembly And Operating Instructions... -
Page 4: Important Safety Instructions
Empty the fuel tank before storing or transporting this product. • Always handle fuel outdoors. • Before transporting, turn the fuel valve to the “OFF” position and disconnect the spark plug. TWP365 3-Inch (76.2mm) Gasoline Trash/Water Pump Assembly And Operating Instructions... - Page 5 Common sense, caution and care must be exercised when operating or cleaning tools and equipment. Always contact your dealer, distributor, service agent or manufacturer about problems or conditions you do not understand before operating the product. TWP365 3-Inch (76.2mm) Gasoline Trash/Water Pump Assembly And Operating Instructions...
-
Page 6: General Product Specifications
Hose Ring (F). To attach the outlet hose, connect the hose to the pump outlet using a Hose Clamp (G), Gasket (H), and Hose Ring (I). Connection to Pump Figure 1 TWP365 3-Inch (76.2mm) Gasoline Trash/Water Pump Assembly And Operating Instructions... -
Page 7: Preparing The Gasoline Water Pump For Use
Securely tighten the fuel tank cap and immediately wipe up any spilled gasoline with a dry cloth. Fuel Tank Capacity (gals) 0.95 Fuel Type Fresh, Unleaded Gasoline Octane Rating 87 or Higher TWP365 3-Inch (76.2mm) Gasoline Trash/Water Pump Assembly And Operating Instructions... -
Page 8: Starting The Gasoline Water Pump
Replace the Priming Plug. Start the Gasoline Water Pump engine. Partially restrict the discharge hose to improve priming. Figure 3 The Gasoline Water Pump is now primed and ready for use. TWP365 3-Inch (76.2mm) Gasoline Trash/Water Pump Assembly And Operating Instructions... -
Page 9: Maintenance
NOTE: Never dispose of used motor oil in the trash, down a drain or on the ground. Put oil in a sealed container and contact your local recycling center or auto garage to arrange oil disposal. Oil Capacity (fluid oz) 18.5 SAE 5W-30 Oil Type Recommended TWP365 3-Inch (76.2mm) Gasoline Trash/Water Pump Assembly And Operating Instructions... -
Page 10: Changing The Oil
5. Squeeze out excess moisture and dry completely. 6. Briefly soak the filter in lightweight oil, squeezing out the excess, before Figure 5 replacing it in the Gasoline Water Pump. TWP365 3-Inch (76.2mm) Gasoline Trash/Water Pump Assembly And Operating Instructions... -
Page 11: Spark Plug Maintenance
7. Wipe all metal components with an oil-soaked rag to inhibit rust and corrosion. 8. Cover the Gasoline Water Pump with a tarp and store in a cool, dry, well-ventilated space out of the reach of children. TWP365 3-Inch (76.2mm) Gasoline Trash/Water Pump Assembly And Operating Instructions... -
Page 12: Parts Diagram
PARTS DIAGRAM PARTS LIST Part Part Description Description Engine Priming Plug Pump Cover Non-Return Valve O-Ring Flume Washer Flange Bolt Hex Screws Gasket Casing Wear Ring Joint Impeller Wear Ring Hose Coupling O-Ring Strainer Impeller Hose Clamp Impeller Cover Gasket O-Ring Elbow Draft Tube Pump Body...
