WolfPack 2x4VW User Manual

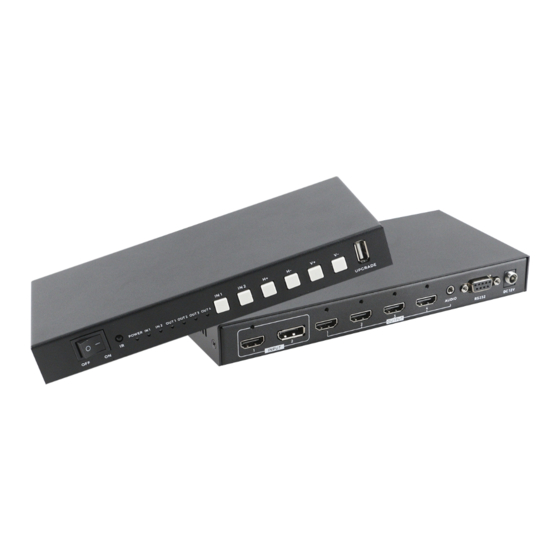

2-input & 4-output video wall controller with tv rotation
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
WolfPack 2-Input & 4-Output Video Wall Controller
with TV Rotation
SKU: 2x4VW
Version: V22.01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2x4VW and is the answer not in the manual?

Questions and answers

Related Manuals for WolfPack 2x4VW

Summary of Contents for WolfPack 2x4VW

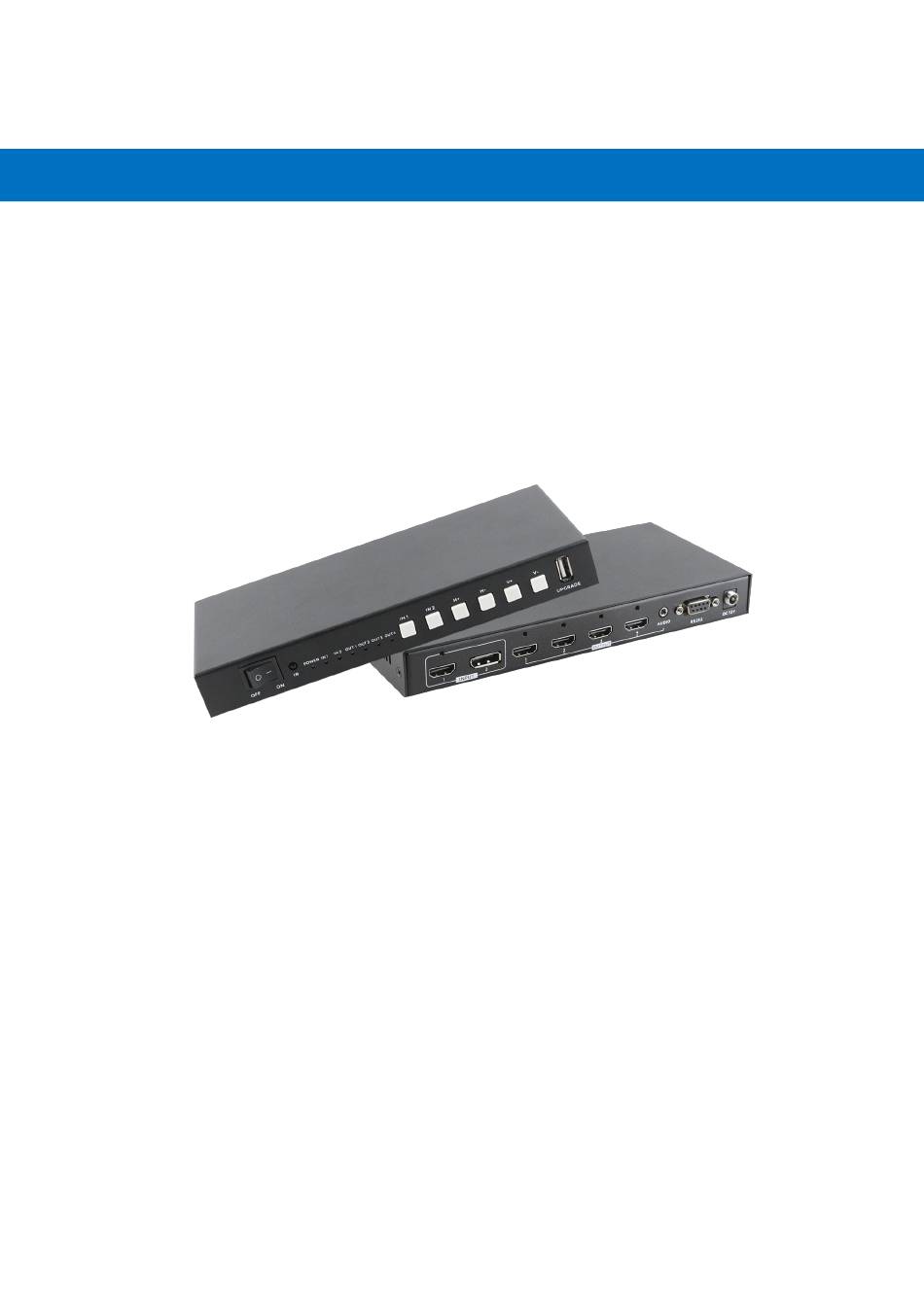

  • Page 1 User Manual WolfPack 2-Input & 4-Output Video Wall Controller with TV Rotation SKU: 2x4VW Version: V22.01...

  • Page 2: Table Of Contents

    Contents 1. Introduction............................ 4 2. Features............................4 3. Specification............................4 4. Packing............................4 5. Panels.............................. 4 5.1 Front Panel..........................4 5.2 Back Panel..........................4 6. Operation diagram..........................4 6.1 Connection diagram......................5 7. After sales ..........................8...

  • Page 3: Introduction

    1. Introduction This WolfPack 2-Input & 4-Output Video Wall Controller with TV Rotation is designed to be a truly capture, AD convert, route, distribute all-format signal to the video wall(LCD displays), while maintaining a true digital signal. The controller with many different video interfaces, include 2 inputs(HDMI+DP) with up to 4K60 resolution and 4 HDMI outputs with 1080P resolution and 3.5mm audio output.

  • Page 4: Packing

    Operating Temperature -10℃ to 50℃ Storage Temperature -25℃ to 55℃ 4. Packing TV Wall Controller Unit Power adapter Remote control Mount ears Pair 5. Panels 5.1 Front Panel OFF/ON: power switch IR: for the IR remote control POWER: power switch IN1: The HDMI input indicator IN2: The DP input indicator OUT1~4: The 4 HDMI outputs indicators...

  • Page 5: Connection Diagram

    6. Diagram and control operations 6.1 Connection diagram 6.2 IR remote control * The other gray buttons on this remote control is for the HDMI multiviewer IN1, IN2: when 2 inputs connected, users can press the IN1 for HDMI or IN2 for DP to output RESET: Press to reset when want to reset the bezel correction, output ports flip/rotating.
  • Page 6 ROT1: For HDMI output 1 flipping, need to press reset button when want the normal display. ROT2: For HDMI output 2 flipping, need to press reset button when want the normal display. ROT3: For HDMI output 3 flipping, need to press reset button when want the normal display. ROT4: For HDMI output 4 flipping, need to press reset button when want the normal display.
  • Page 7 6.3 RS232 commands control Factory default: EB 90 00 12 00 ff 21 00 00 00 00 00 00 00 00 00 00 00 Output standard resolution: EB 90 00 12 00 ff 23 00 00 00 00 00 00 00 00 00 00 00 //1920x1080@60 EB 90 00 12 00 ff 23 14 00 00 00 00 00 00 00 00 00 00 //1920x1080@30 EB 90 00 12 00 ff 23 02 00 00 00 00 00 00 00 00 00 00 //1920x1200@60 Customize output resolution:...
  • Page 8 EB 90 00 12 00 ff 32 01 00 00 00 00 00 00 00 00 00 00// Mode2 1x2 EB 90 00 12 00 ff 32 02 00 00 00 00 00 00 00 00 00 00// Mode 3 2x1 EB 90 00 12 00 ff 32 03 00 00 00 00 00 00 00 00 00 00// Mode 4 1x3 EB 90 00 12 00 ff 32 04 00 00 00 00 00 00 00 00 00 00// Mode5 3x1 EB 90 00 12 00 ff 32 05 00 00 00 00 00 00 00 00 00 00// Mode 6 1x4...

  • Page 9: After Sales

    EB 90 00 12 00 ff 40 00 32 00 00 00 00 00 00 00 00 00 //H0.05 ..EB 90 00 12 00 ff 40 00 00 00 00 00 00 00 00 00 00 00 //V0 EB 90 00 12 00 ff 40 00 05 00 00 00 00 00 00 00 00 00 //V0.005 EB 90 00 12 00 ff 40 00 0A 00 00 00 00 00 00 00 00 00 //V0.01 EB 90 00 12 00 ff 40 00 14 00 00 00 00 00 00 00 00 00 //V0.02 EB 90 00 12 00 ff 40 00 1E 00 00 00 00 00 00 00 00 00 //V0.03...
