RD-300SX
Model:

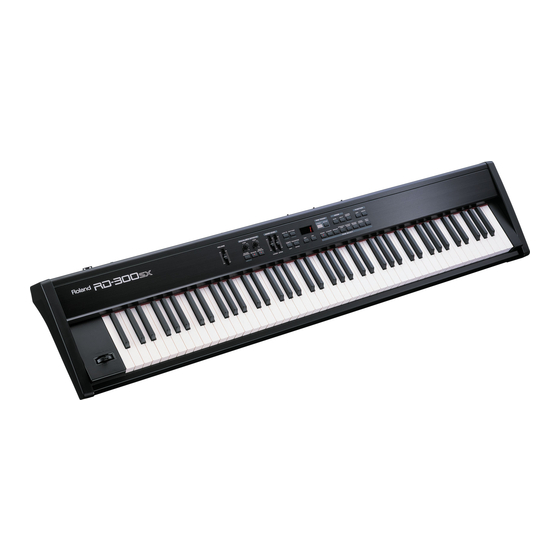

RD-300SX (Digital Piano)
Date:
Nov. 1, 2004
Version:
1.00
1. Receive data
■Channel Voice Messages
●Note off
Status
2nd byte
8nH
kkH
9nH
kkH
n = MIDI channel number:
kk = note number:
vv = note off velocity:
* Some instruments are not received in Rhythm set.
* The velocity values of Note Off messages are ignored.
●Note on
Status
2nd byte
9nH
kkH
n = MIDI channel number:
kk = note number:
vv = note on velocity:
●Control Change
❍Bank Select (Controller number 0, 32)
Status
2nd byte
BnH
00H
BnH
20H
n = MIDI channel number:
mm, ll = Bank number:
* The SETUP, Rhythms, and Tones corresponding to each Bank Select are as follows.
BANK SELECT
| PROGRAM
|
MSB | LSB
| NUMBER
| GROUP
-----+-----------+-----------+----------------------+-----------
000 |
| 001 - 128 | GM Tone
:
|
|
|
;
032 |
| 001 - 128 | GM Tone
085 | 000
| 001 - 032 | SETUP
086 | 064
| 001 - 005 | Rhythm Set
087 | 064
| 001 - 010 | Tone (PIANO)
| 065
| 001 - 010 | Tone (E.PIANO)
| 066
| 001 - 007 | Tone (ORGAN)
| 067
| 001 - 012 | Tone (STRINGS/PAD)
| 068
| 001 - 013 | Tone (GTR/BASS)
| 069
| 001 - 010 | Tone (BRASS/WINDS)
| 070
| 001 - 008 | Tone (VOICE/SYNTH)
120 |
| 001 - 057 | GM2 Rhythm
121 | 000 -
| 001 - 128 | GM2 Tone
❍Modulation (Controller number 1)
Status
2nd byte
BnH
01H
n = MIDI channel number:
vv = Modulation depth:
❍Portamento Time (Controller number 5)
Status
2nd byte
BnH
05H
n = MIDI channel number:
vv = Portamento Time:
❍Data Entry (Controller number 6, 38)
Status
2nd byte
BnH
06H
BnH
26H
n = MIDI channel number: 0H - FH (ch.1 - 16)
mm, ll = the value of the parameter specified by RPN/NRPN
mm = MSB, ll = LSB
❍Volume (Controller number 7)
Status
2nd byte
BnH
07H
n = MIDI channel number:
vv = Volume:
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.

MIDI Implementation

3rd byte
vvH
00H
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
01H - 7FH (1 - 127)
3rd byte
mmH
llH
0H - FH (ch.1 - 16)
00 00H - 7F 7FH (bank.1 - bank.16384)
|
| NUMBER
|
|
|
| S.11 - S.84
| 1 - 5
| 1 - 10
| 1 - 10
| 1 - 7
| 1 - 12
| 1 - 13
| 1 - 10
| 1 - 8
| 6 - 14
| 15 - 270
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
3rd byte
mmH
llH
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
Copyright © 2005 ROLAND CORPORATION
❍Panpot (Controller number 10)
Status
2nd byte
BnH
0AH
n = MIDI channel number:
vv = Panpot:
❍Expression (Controller number 11)
Status
2nd byte
BnH
0BH
n = MIDI channel number:
vv = Expression:
❍ General Purpose Controller 1 (Controller number 16)
Status
2nd byte
BnH
10H
n = MIDI channel number:0H - FH (ch.1 - 16)
vv = Control value: 00H - 7FH (0 - 127)
❍Hold 1 (Controller number 64)
Status
2nd byte
BnH
40H
n = MIDI channel number:
vv = Control value:
❍Portamento (Controller number 65)
Status
2nd byte
BnH
41H
n = MIDI channel number:
vv = Control value:
❍Sostenuto (Controller number 66)
Status
2nd byte
BnH
42H
n = MIDI channel number:
vv = Control value:
❍Soft (Controller number 67)
Status
2nd byte
BnH
43H
n = MIDI channel number:
vv = Control value:
❍Legato Foot Switch (Controller number 68)
Status
2nd byte
BnH
44H
n = MIDI channel number:
vv = Control value:
❍Resonance (Controller number 71)
Status
2nd byte
BnH
47H
n = MIDI channel number:
vv= Resonance value (relative change):
❍Release Time (Controller number 72)
Status
2nd byte
BnH
48H
n = MIDI channel number:
vv = Release Time value (relative change): 00H - 7FH (-64 - 0 - +63)
❍Attack time (Controller number 73)
Status
2nd byte
BnH
49H
n = MIDI channel number:
vv = Attack time value (relative change): 00H - 7FH (-64 - 0 - +63),
❍Cutoff (Controller number 74)
Status
2nd byte
BnH
4AH
n = MIDI channel number:
vv = Cutoff value (relative change):
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 40H - 7FH (Left - Center - Right),
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
3rd byte
vvH
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127) 0-63 = OFF, 64-127 = ON
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (-64 - 0 - +63)
3rd byte
vvH
0H - FH (ch.1 - 16)
3rd byte
vvH
0H - FH (ch.1 - 16)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (-64 - 0 - +63)
1
1PS
