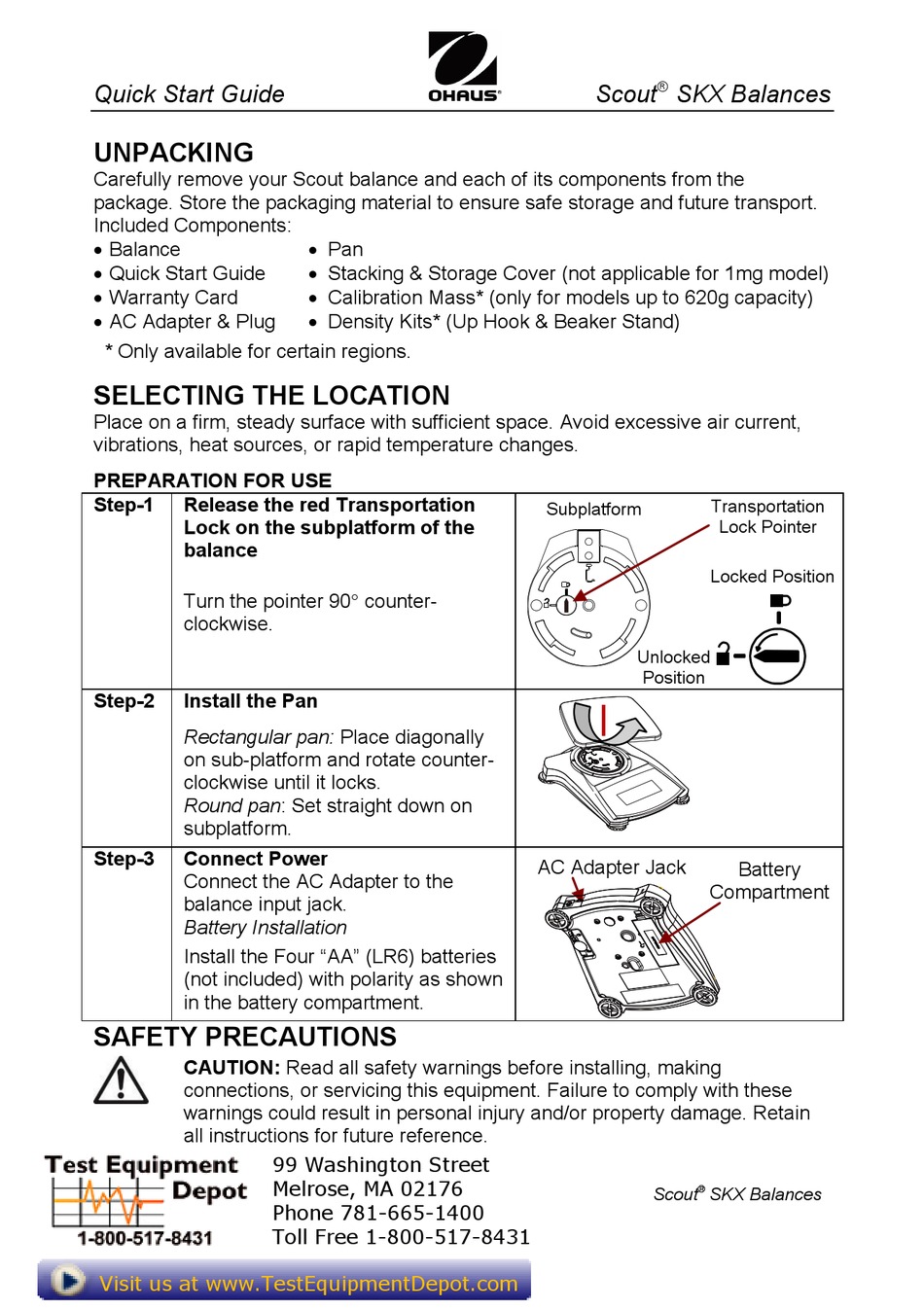

Quick Start Guide

UNPACKING

Carefully remove your Scout balance and each of its components from the
package. Store the packaging material to ensure safe storage and future transport.
Included Components:
 Balance
 Quick Start Guide
 Warranty Card
 AC Adapter & Plug
* Only available for certain regions.

SELECTING THE LOCATION

Place on a firm, steady surface with sufficient space. Avoid excessive air current,
vibrations, heat sources, or rapid temperature changes.

PREPARATION FOR USE

Step-1
Release the red Transportation
Lock on the subplatform of the
balance
Turn the pointer 90 counter-
clockwise.
Step-2
Install the Pan
Rectangular pan: Place diagonally
on sub-platform and rotate counter-
clockwise until it locks.
Round pan: Set straight down on
subplatform.
Step-3
Connect Power
Connect the AC Adapter to the
balance input jack.
Battery Installation
Install the Four "AA" (LR6) batteries
(not included) with polarity as shown
in the battery compartment.

SAFETY PRECAUTIONS

CAUTION: Read all safety warnings before installing, making
connections, or servicing this equipment. Failure to comply with these
warnings could result in personal injury and/or property damage. Retain
all instructions for future reference.
Visit us at www.TestEquipmentDepot.com
 Pan
 Stacking & Storage Cover (not applicable for 1mg model)
 Calibration Mass* (only for models up to 620g capacity)
 Density Kits* (Up Hook & Beaker Stand)
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Scout
SKX Balances
Transportation
Subplatform
Locked Position
Unlocked
Position
AC Adapter Jack
Compartment
Scout
SKX Balances
Lock Pointer
Battery
