Excel NG-L0218 Instruction Manual

Cordless nail gun 18v

Hide thumbs

Table Of Contents

Original Instructions

CORDLESS NAIL GUN 18V

11755/NG-L0218

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the NG-L0218 and is the answer not in the manual?

Questions and answers

Summary of Contents for Excel NG-L0218

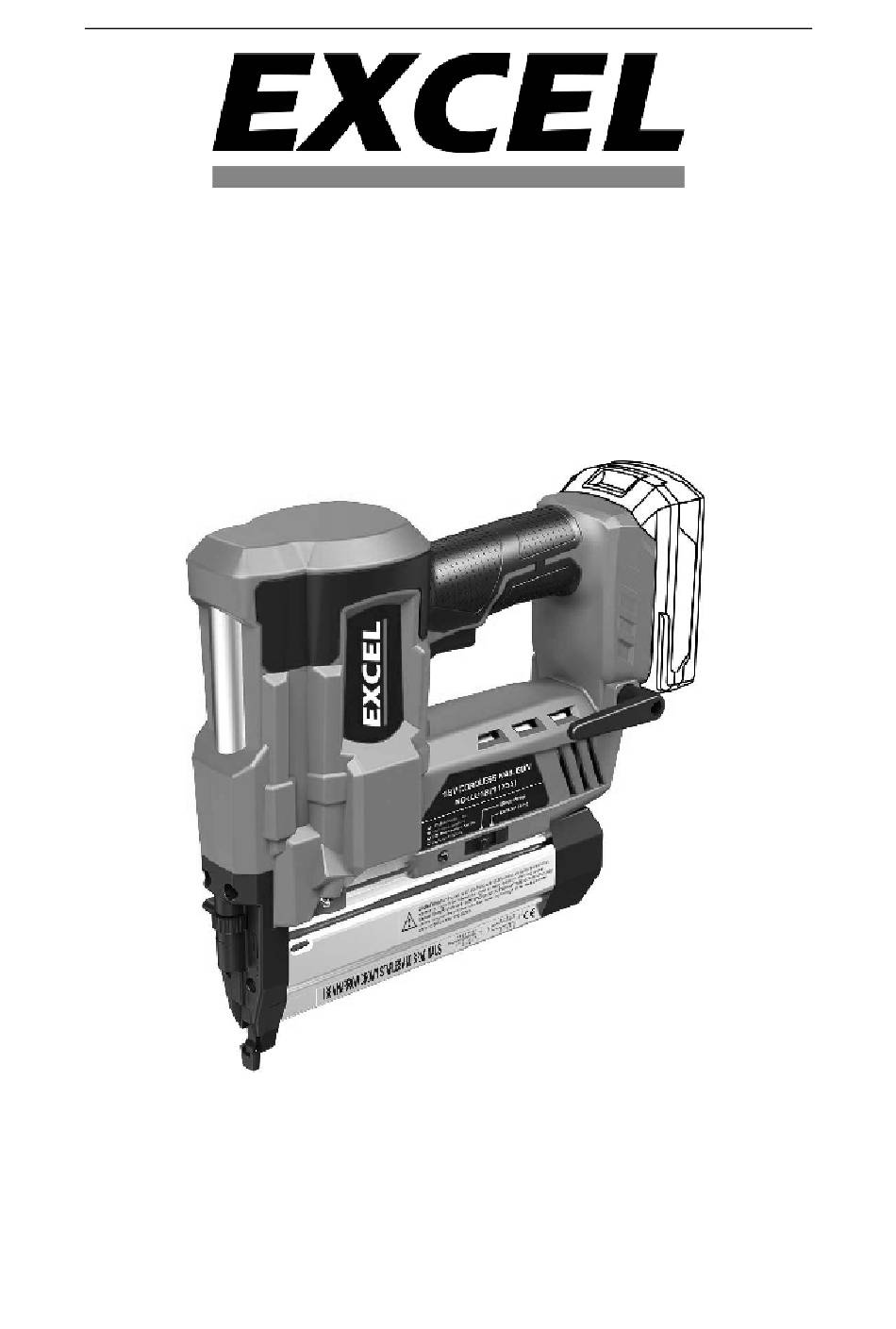

Page 1 Original Instructions CORDLESS NAIL GUN 18V 11755/NG-L0218 INSTRUCTION MANUAL...
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS WARNING – To reduce the risk of injury, user must read instruction manual. Before any use, refer to the corresponding section in this user manual. Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste.
Page 3: General Power Tool Safety Warnings
Original Instructions On adapter Read instruction manual before any use. Class II transformer. For indoor use only. GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Page 4 Original Instructions d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Page 5 Original Instructions a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
Page 6: Safety Instructions For Tackers
Original Instructions liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
Page 7 Original Instructions • To ensure the longest battery life and best battery performance, always charge the battery when the temperature is between 18-24°C. Do not charge the battery pack when the temperature is below 0°C, or above 40°C. This is important. Failure to observe this safety rule could cause serious damage to the battery pack.
Page 8 Original Instructions EXTRA SAFETY REGULATIONS CONCERNING BATTERY CHARGER • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 9: Intended Use
Original Instructions service centre for a check or repair. • Do not disassemble the charger. Take it to an authorized service centre when service or repair is required. Incorrect re-assembly may result in the risk of fire, electric shock or electrocution. •...
Page 10: Technical Specifications
Original Instructions Cylinder Trigger LED Lighting Switch Depth Adjustment Wheel Safety Contact Pin Magazine LED Lighting (two sides) LED Indicator Single/Contact Firing Knob Belt Hook Battery Pack(if included) TECHNICAL SPECIFICATIONS...
Page 11: Noise/Vibration Information
Original Instructions Product description 18V Li-ion NAIL GUN Rated voltage of battery Firing Speed Average 60nails/min, Max 100nails/min Max Magazine Capacity Holds up to 100nails/staples Max length of Nails 50mm 18 Gauge Brad Nail Max length of staples 40mm 18 Gauge light duty staple Sound pressure level L =3dB(A)) 79,9dB Sound power level L...
Page 12 Original Instructions Wear hearing protection! Vibration total values (triax vector sum) determined according to EN 62841: The vibration emission level given in this information sheet has been measured in accordance with a standardized test given in EN 62841 and may be used to compare one tool with another.
Page 13: Operation
Original Instructions first time, fully charge the battery pack. A fully discharged battery pack with a temperature between 5℃ and 35℃ will charge in about 30-140MIN(See section”Specifications”). CH-1802A: l Plug the charger adapter into power source. The green light on the charger stand will illuminate, indicating the charger is powered.
Page 14 Original Instructions LED Lighting 2pcs LED lighting in each side can be turned on when the machine is working l Checking the contact trip mechanism l Remove all staples or nails from the magazine. l Press the safety nose/contact pin and pull the trigger.The safety nose/contact pin and the trigger should move freely.
Page 15 Original Instructions Prior to operation make sure your battery pack is fully charged. Check whether the fasteners are placed in the magazine correctly. Nailing or Stapling Hold handle firmly with magazine flat to work piece forming a 90°Angle. Two modes of firing: Single Firing and Contact Firing 1) Single Firing Mode: Push the drive shift (single/contact firing knob) to left side, it is on Single Firing mode.
Page 16 Original Instructions Step 4: Released the trigger and safety contact pin after firing. Firing next staple or nail, repeat step 2- step 4 The safety contact pin must be depressed before the trigger is squeezed. 2) Contact Firing Mode: Push the drive shift (single/contact firing knob) to right side, it is on Contact Firing mode.
Page 17 Original Instructions Step 3: Depress the safety contact pin against the work piece to fire the nail or staple; Step 4: Keep squeezing the trigger all the time but release safety contact pin after firing. Step 5: To press it against the next area you want to fire a nail or staples into. When the contact pin is pressed against the work piece the tool will fire.
Page 18 Original Instructions Firing next staple or nail, repeat step 4~step 5 The trigger must be keep squeezing all the time during the safety contact pin is being depressed time by time Do not keep the trigger depressed when the tool is not in use, to prevent accidental firing when the tool is not in use.
Page 19 Original Instructions If the fasteners remain jammed after following the above instructions,slightly loosen the four hex screws upon the nose piece with the wrench provided, take off the nose then remove the jammed fasteners piece Remove the jammed nail with pliers if necessary. After the jammed nail has been successfully removed, then re-tighten the nose piece with hex screws securely.
Page 20: Service And Maintenance
Original Instructions SERVICE & MAINTENANCE Always remove the battery from the tool before performing any adjustment or maintenance operation. Take care not to expose this tool to the rain. Keep the ventilation openings clear and clean the product regularly. Repair of the tool must only be carried out by a qualified repair technician.
Page 21 Exceltools.co.uk Sales@exceltools.co.uk...
