PERDIX PRO BOLYGUARD MG984G-36M Quick Start Manual

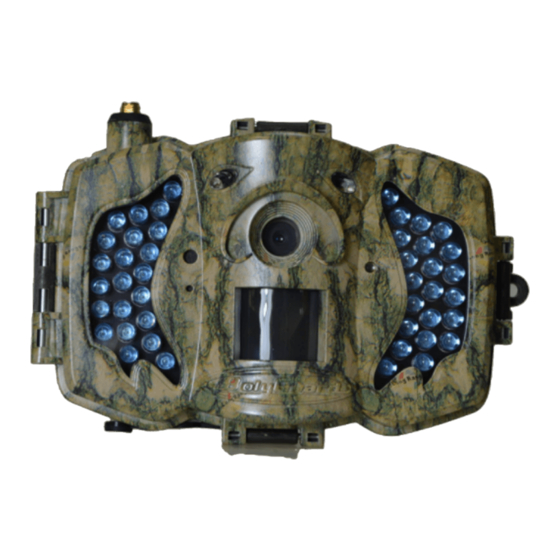

BOLYGUARD MG984G-36M 4G CAMERA
Screen
Power Switch
POWER
This camera is powered by AA batteries. All types of
batteries (Lithium, Alkaline and Rechargeable (NiMH)
can be used in the cameras, however, for best
performance, we recommend using Energizer Ultimate
Lithium batteries or quality NiMH rechargeable batteries.
The power port can also be used to connect an external
6V battery (cable not included).
SETTINGS INTERFACE & DISPLAY
When the camera is in SETUP Mode, the screen will
activate and display the following:
36M
SDcard icon
Numberof image
Indicates the SIM card is
recognised by the
camera.
Battery Compartment
Vodafone
Available space Battery level
Indicates the SIM card is not
recognised by the camera or the
SIM card is not working due to
connection/activation issues.
QUICK START
Your PerdixPro enabled camera is supplied with pre-
installed SIM and SD cards. To begin using your camera,
please follow these steps:
1. Setup your PerdixPro account to begin receiving
images. See PerdixPro Media Tool Setup for further
instructions.
2. Attach the aerial to the brass connector on top of
the camera.
3. Install 8 x AA batteries. We recommend using
Energizer Ultimate Lithium or high quality NiMH
batteries.
4. Turn the power switch to SETUP and wait for the
camera to connect to a network. This may take a
few minutes.
5. Once connected, turn the power switch to ON.
Images will start being taken (when PIR activated)
after the red LED on the front of the camera stops
flashing.
6. Images taken should now be shown in your
PerdixPro Portal and App.
NB: The camera is set to send low resolution photos by
default. This can be changed within the menu settings
but will reduce the number of images that can be
uploaded monthly.
PERDIXPRO UPLOAD SETTINGS
Send mode
This should be set to instant to receive images directly
to your PerdixPro portal. The amount of images sent
daily can the limited. Default setting is unlimited.
SMS control
This should be ON if you wish to send SMS commands
from PerdixPro to the camera e.g. Take Snapshot. If not
required, turning OFF will improve battery life.
Attachment size
This is the size of image sent to your PerdixPro account.
The default is Low and . When set to High, the original
sized image is sent. Please note: Changing attachment
size from Low will reduce the number images that can
be uploaded per month.
Select network
This should be kept on Auto to ensure best network
coverage. PerdixPro SIMs are 2, 3 and 4G enabled and
will roam across networks to find best signal.
Automatic deletion
Select ON if your require images to be deleted from the
SD card after being sent. Images that cannot be sent
due to signal etc, will not be deleted.
ADDITIONAL SETTINGS
Additional settings can be found in the fourth menu
section. This includes setting up and PIN for the camera
and adding a name stamp to the images.
