IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.

Tools Needed

Helpline

If you have any problems with this product or require any
replacement fittings please contact Customer Services Tel:
0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to
be faulty. Should you need to return the unassembled product, please repack in the original packaging.

IMPORTANT

IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-
by-step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.

PRODUCT INFORMATION

• Made from hollow board, honeycomb board with a wood effect finish.
• Made in China

CARE INSTRUCTIONS

• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Do not use furniture polish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent scratching
or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.
CUBE LONG JOHN
ASSEMBLY INSTRUCTIONS.
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUBE LONG JOHN and is the answer not in the manual?

Questions and answers

Summary of Contents for Next CUBE LONG JOHN

  • Page 1 CUBE LONG JOHN ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0333 777 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 FITTINGS PARTS STEP ONE 1.Insert 4× bolts (K) into nuts fixed on panel (1) and turn bolts (K) clockwise until tight by hands. STEP TWO 1.Glue 6×wooden dowels (A) into panel 1. 2 Attach panels 2(X2) to panel (1) 3.Cover 4 x metal pieces (L) onto 4 x bolts (K) and then screw 4 x metal nuts (I) with spanner (J) until tight.
  • Page 3 STEP THREE 1.Use 4 x stickers (C) to cover the holes on panels 2(X2) STEP FOUR 1.Insert 4 x cambolts (E) into panel 3 and tighten with a screwdriver. STEP FIVE 1. Glue and insert 4 x wooden dowels (A) into panel 3.

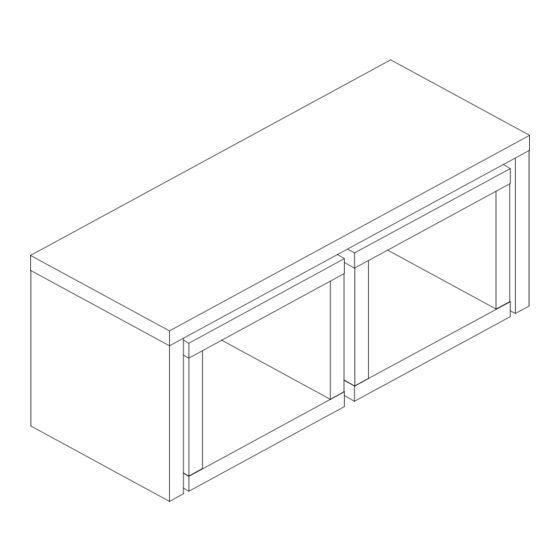

  • Page 4 1.Use 4 x stickers (M) to cover the camlock holes on panels 5 (x2). 2.Please repeat STEP FOUR to SEVEN to assemble the other product. STEP EIGHT 1.The assembled product as shown Next Retail Ltd, Desford Road, Leicester, LE19 4AT Page 4 of 4...
