Summary of Contents for Boardcon Embedded Design CM3588S
- Page 1 CM3588S Reference User Manual V1.20230228 Boardcon Embedded Design www.boardcon.com...
- Page 2 Your Idea Customize the embedded system based on 1. Introduction 1.1. About this Manual This manual is intended to provide the user with an overview of the board and benefits, complete features specifications, and set up procedures. It contains important safety information as well. 1.2.
-
Page 3: Table Of Contents
Content 1 CM3588S Introduction ........................... 3 1.1 Summary ............................. 3 1.2 Features ............................3 1.3 CM3588S Block Diagram ......................5 1.4 CM3588S specifications ......................6 1.5 CM3588S PCB Dimension ......................7 1.6 CM3588S Pin Definition ....................... 7 1.7 Development Kit (Idea3588S) ....................15 2 Hardware Design Guide ........................ -
Page 4: Cm3588S Introduction

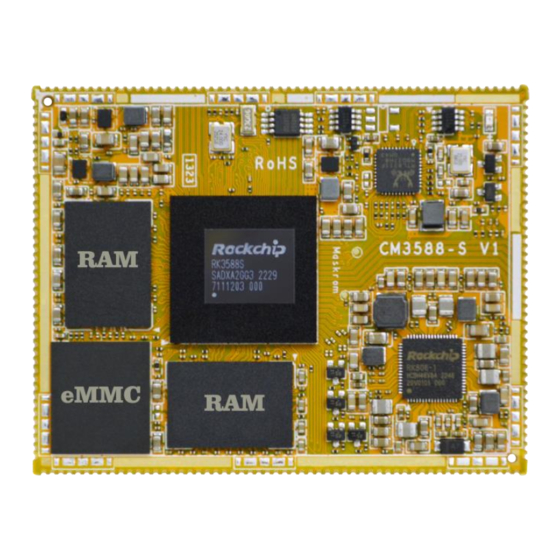

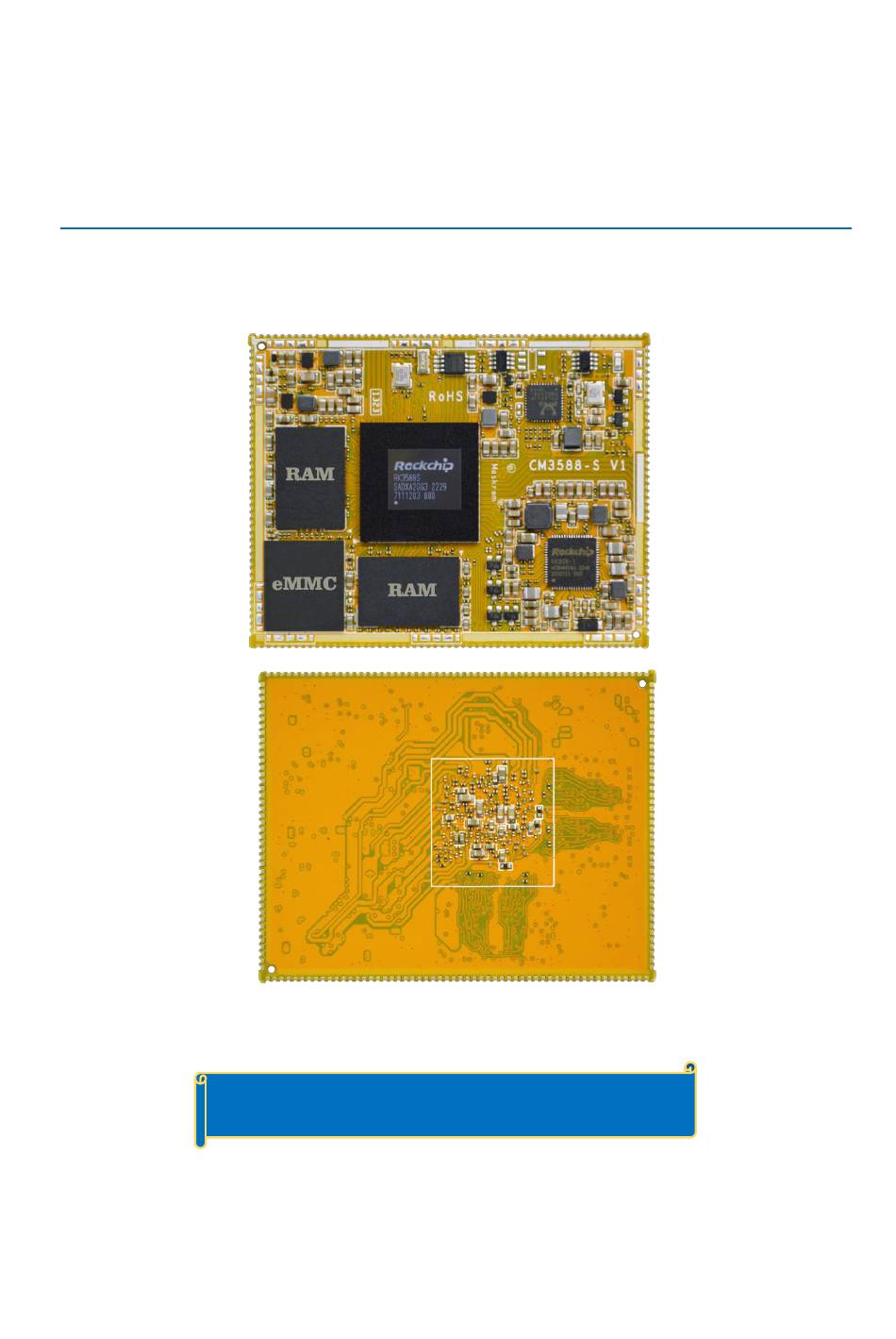

1 CM3588S Introduction 1.1 Summary The CM3588S system-on-module is equipped with Rockchip’s RK3588S it has a quad-core Cortex-A76 and a quad-core Cortex-A55 processor, Embedded Mali-G610 MP4 GPU and 6.0 TOPs NPU. It is designed specifically for the high-performance devices such as 8K TV box or recorder, VI devices, intelligent interactive devices, personal computers and robots. - Page 5 Your Idea Customize the embedded system based on HDMI 2.1 support FRL mode Supports 4 lanes MIPI DSI up to 4K@60Hz Supports PD1.4a interface up to 8K@30Hz Supports BT-1120 16bit output Video/Image Input Supports 2-CH MIPI 4lanes CSI interfaces Or 2-CH MIPI 2lanes + 1-CH 4lanes CSI interfaces Supports DVP 8/16-bit input •...
-
Page 6: Cm3588S Block Diagram
Power unit - PMU RK806 on board - 3.4 ~ 4.5V main power input - 1.8V and 3.3V max 500mA output - Very low RTC consume current, less 5uA at 3V button Cell. 1.3 CM3588S Block Diagram 1.3.1 RK3588S Block Diagram... -
Page 7: Cm3588S Specifications
Your Idea Customize the embedded system based on 1.3.2 Development board (Idea3588S) Block Diagram 1.4 CM3588S specifications Feature Specifications Quad-core Cortex-A72 and quad-core Cortex-A55 4GB LPDDR4 (up to 16GB) eMMC FLASH 8GB (up to 128GB) Power DC 3.4 ~ 4.5V... -
Page 8: Cm3588S Pcb Dimension
7-CH 4-CH 3-CH UART 9-CH, 1-CH(DEBUG) 15-CH ADC IN 3-CH Board Dimension 57.5 x 45mm 1.5 CM3588S PCB Dimension 1.6 CM3588S Pin Definition Signal Description or functions GPIO serial IO Voltage VCC_SYS System Power Input 3.4V-4.5V VCC_SYS System Power Input 3.4V-4.5V... - Page 9 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage BT_WAKE_HOST_H_1 I2C4_SCL_M2/UART0_TX_ GPIO0_C5_u 1.8V M0 /PWM4_M0 HOST_WAKE_BT_H_1 UART0_RTSn_M0 GPIO0_C6_u 1.8V /PWM5_M1/SATA_CP_POD WIFI_WAKE_HOST_H REFCLK_OUT GPIO0_A0_d 1.8V _1V8 I2C6_SDA_M0/PDM0_SDI0_ WIFI_REG_ON_H_1V8 GPIO0_C7_d 1.8V M1/PWM6_M0 Ground I2C4_SDA_M4/PDM0_CLK0 PDM0_CLK0_1V8 GPIO1_C6_d 1.8V _M0/PWM15_IR_M2...
- Page 10 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage UART4_RX_M2/ PDM1_ SPI0_MOSI_M2_1V8 GPIO1_B2_d 1.8V SDI3_M1 UART4_TX_M2/ SPI0_CLK_M2_1V8 PDM1_CLK1_M1//SATA0_A GPIO1_B3_d CT_LED_M1 Ground MIPI_CAM3_CLK_M0_ UART1_RTS_M1/I2C8_SCL GPIO1_D6_u 1.8V _M2/PWM14_M2 Ground I2C3_SCL_M1 GPIO3_B7_d GPIO2_B7_d 3.3V /SPI1_MOSI_M1 I2C3_SDA_M1 UART7_TX_M1 GPIO3_C0_d 3.3V...
- Page 11 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage SPI2_MOSI_M1/I2C3_SDA_ UART3_TX_M2 M2/I2S1_SDI0_M0/CIF_D5/B GPIO4_A5_d 3.3V T1120_D5 SPI2_CLK_M1/I2C5_SCL_M UART3_RX_M2 2/I2S1_SDI1_M0/CIF_D6/BT GPIO4_A6_d 3.3V 1120_D6 SPI2_CS0_M1/I2C5_SDA_M GPIO4_A7_d 2/I2S1_SDI2_M0/CIF_D7/BT GPIO4_A7_d 3.3V 1120_D7 PCIE20x1_1_PERSTn SPI0_CLK_M1/I2S1_LRCK_ GPIO4_A2_d 3.3V M0/CIF_D2/BT1120_D2 SPI0_MISO_M1/I2S1_MCLK PCIE20x1_1_CLKREQ _M0/UART9_RTSN_M1/CIF GPIO4_A0_d...
- Page 12 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage UART2_TX_M1/PDM1_SDI3 GPIO4_D0_u SDMMC0_D0 3.3V _M0/I2C3_SCL_M4 /PWM8_M1 Ground HDMI0_TX_SBDN/eDP HDMI0_TX_eARC- (Default HDMI) 0.5V 0_TX_AUXN /eDP0_TX_AUXN HDMI0_TX_SBDP/eDP HDMI0_TX_eARC+ (Default HDMI) 0.5V 0_TX_AUXP /eDP0_TX_AUXP HDMI0_TX3N HDMI0TX_CLKN/eDP0TX3N (Default HDMI) 0.5V HDMI0_TX3P...
- Page 13 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage PWRON_L Power Key input (PU) 3.4~4.5V RESET_L System Reset RST_KEY) (PU10K) 1.8V 1.8V IO power output VCC_1V8 (Max:500mA) 1.8V (PMU_Buck10) Ground TYPEC0_SBU1/DP_A TYPEC0_SBU2/DP0_AUXN (Default TYPE-C) 0.5V TYPEC0_SBU1/DP_A...
- Page 14 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage MIPI_DPHY1_RX_CLK 0.5V MIPI_DPHY1_RX_D2N 0.5V MIPI_DPHY1_RX_D2P 0.5V MIPI_DPHY1_RX_D3N 0.5V MIPI_DPHY1_RX_D3P 0.5V VCC_3V3_S0 3.3V power out (Sleep OFF) (Max:500mA) 3.3V PHY1_LED2/CFG_LD Ethernet Speed LED 10K) 3.3V PHY1_LED1/CFG_LD Ethernet Link LED 10K)
- Page 15 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage SPI1_MOSI_M2/I2C7_SDA_ I2S0_SDO2/SDI3_1V8 M0/PDM0_SDI1_M0/UART6 GPIO1_D1_d 1.8V _RX_M2 SPI1_MISO_M2/I2C7_SCL_ I2S0_SDO1_1V8 GPIO1_D0_d 1.8V M0/UART6_TX_M2 I2C4_SCL_M4/UART4_CTS I2S0_SDO0_1V8 GPIO1_C7_d 1.8V N_M0 I2C2_SCL_M3/UART4_RTS I2S0_LRCK_TX_1V8 GPIO1_C5_d 1.8V N_M0 Ground PCIE20_0_REFCLKN 0.5V PCIE20_0_REFCLKP 0.5V PCIE20_0_RXN/SATA3...
-
Page 16: Development Kit (Idea3588S)
Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage SPI4_MISO_M0/UART3_RX GPIO1_C0_z I2C3_SDA_M0_1V8 1.8V (PU2.2K) SPI4_MOSI_M0/UART3_TX GPIO1_C1_z I2C3_SCL_M0_1V8 1.8V (PU2.2K) UART1_RX_M1/SPDIF1_TX GPIO1_B7_u I2C5_SDA_M3_1V8 _M0/CAMERA2_CLK_M0/ /PWM13_M2 1.8V SATA2_ACT_LED_M1 (PU2.2K) UART1_TX_M1/SPDIF0_TX GPIO1_B6_u I2C5_SCL_M3_1V8 1.8V _M0/CAMERA1_CLK_M0 (PU2.2K) 1.7 Development Kit (Idea3588S) -
Page 17: Hardware Design Guide
Your Idea Customize the embedded system based on 2 Hardware De sign Guide 2.1 Peripheral Circuit Reference 2.1.1 External Power 2.1.2 Debug Circuit... -
Page 18: Mother Board Length Offset
2.2.1 MIPI CSI0 4-Lane Interface length offset MIPI_CSI0_RX0_D0P (5.929) MIPI_CSI0_RX0_D1P (5.787) MIPI_CSI0_RX0_CLKP MIPI_CSI0_RX0_D2P (258.716) (+230) MIPI_CSI0_RX0_D3P (256.734) (+230) Yellow block is CM3588S CSI0 group length difference. Unit: mil 2.2.2 MIPI DPHY1 4-Lane Interface length offset MIPI_DPHY_TX1_D0P (-87.504) MIPI_DPHY_TX1_D1P (-44.027) MIPI_DPHY_TX1_CLKP MIPI_DPHY_TX1_D2P (9.937) MIPI_DPHY_TX1_D3P (0.575) Yellow block is CM3588S DSI1 group length difference. -
Page 19: Pcb Footprint
Your Idea Customize the embedded system based on 2.3 PCB Footprint 3 Product Electrical Characteristics 3.1 Dissipation and Temperature Symbol Parameter Unit VCC_SYS System Voltage 3.4V VCC_SYS Isys_in 2050 3350 input Current VCC_RTC RTC Voltage RTC input Iirtc Current VCC_3V3 I3v3_out output Current VCC_1V8... -
Page 20: Reliability Of Test
Your Idea Customize the embedded system based on Storage Tstg ° C Temperature 3.2 Reliability of Test High Temperature Operating Test Contents Operating 8h in high temperature 55° C±2° C Result Operating Life Test Contents Operating in room 120h Result...
