Models: ATEX4610 through ATEX4640, ATEX4710 through ATEX4740, ATEX4810 through ATEX4840
ATEX4610SS through ATEX4640SS, ATEX4710SS through ATEX4740SS, ATEX4810SS through ATEX4840SS
ATEX4610SS-316 through ATEX4640SS-316, ATEX4710SS-316 through ATEX4740SS-316,
**WARNINGS** - OPERATING OUTSIDE THESE PARAMETERS MAY IMPAIR SUITABILITY FOR
CLASSIFIED AREAS
1.
MAXIMUM INLET PRESSURE 125 PSIG (8.6 BAR).
2.
MAXIMUM INLET AIR TEMPERATURE 45 DEGREES C
3.
EQUIPMENT MUST BE MOUNTED VERTICALLY ON A FLAT SURFACE
POTENTIAL ELECTROSTATIC CHARGING HAZARD – CLEAN ONLY WITH A DAMP
4.
CLOTH
5.
MUST BE USED WITH A PROPERLY SIZED PURGE AND PRESSURIZED ENCLOSURE
6.
THE SURFACE TEMPERATURE OF THE PANEL SHOULD BE CONSIDERED
WITHOUT THE COOLER IN OPERATION
7.
APPLICABLE CLAUSES FROM EN 60079-2 SHOULD BE CONSIDERED IN THE END
USE PANEL. WITH SPECIAL ATTENTION TO CLAUSES 5.1 AND 7.11
POSSIBLE IGNITION SOURCES
1.
2.
3.
4.
ATEX CABINET COOLER
INSTALLATION & MAINTENANCE
ATEX4810SS-316 through ATEX4840SS-316
(IF TOP OF THE CABINET IS NOT AVAILABLE, A SIDE MOUNT KIT MAY BE USED.)
HOT SURFACES
FLAMES, HOT GASES
MECHANICALLY GENERATED SPARKS
STATIC ELECTRICITY
LIT 4016
©2011 EXAIR Corporation
Advertisement
Table of Contents
Summary of Contents for EXAIR ATEX4610

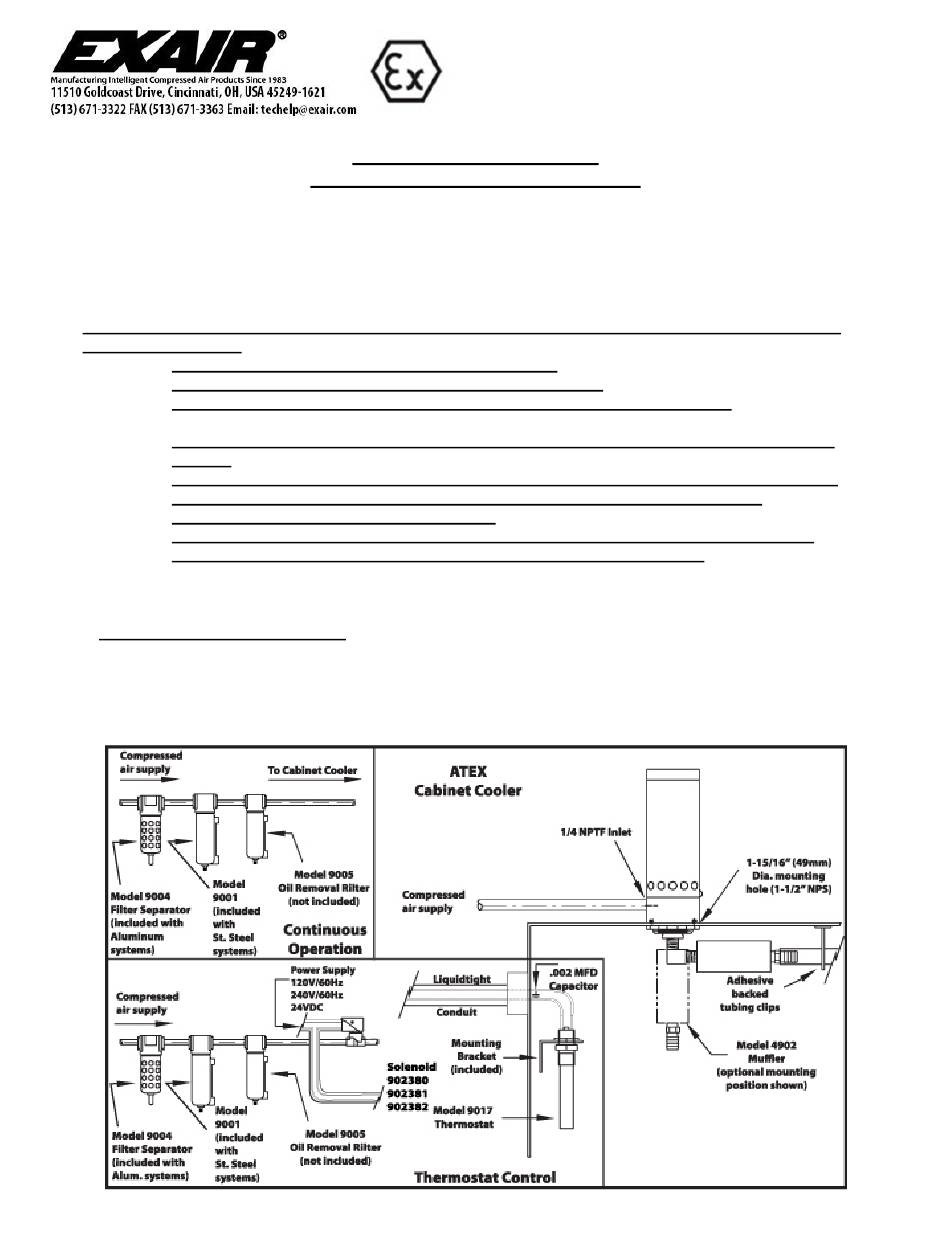

- Page 1 LIT 4016 ATEX CABINET COOLER INSTALLATION & MAINTENANCE Models: ATEX4610 through ATEX4640, ATEX4710 through ATEX4740, ATEX4810 through ATEX4840 ATEX4610SS through ATEX4640SS, ATEX4710SS through ATEX4740SS, ATEX4810SS through ATEX4840SS ATEX4610SS-316 through ATEX4640SS-316, ATEX4710SS-316 through ATEX4740SS-316, ATEX4810SS-316 through ATEX4840SS-316 **WARNINGS** - OPERATING OUTSIDE THESE PARAMETERS MAY IMPAIR SUITABILITY FOR CLASSIFIED AREAS MAXIMUM INLET PRESSURE 125 PSIG (8.6 BAR).
- Page 2 Cabinet Cooler System must be used in conjunction with a properly sized purged and pressurized enclosure that must be able to vent the additional air introduced to the cabinet by the Cabinet Cooler. EXAIR does not supply purge or pressurization systems. The vent supplied with purge system will need to be properly sized to vent the additional cool air produced by the ATEX Cabinet Cooler System to prevent over-pressurization of the cabinet.
- Page 3 This information will be used to properly size a spark arrest vent for the purge system that needs to be used on any ATEX Cabinet Cooler. Cabinet Cooler Part Number Maximum Cold Flow (SCFM) ATEX4610, ATEX4610SS, ATEX4610SS-316 10.7 ATEX4615, ATEX4615SS, ATEX4615SS-316 16.1 ATEX4625, ATEX4625SS, ATEX4625SS-316 26.8...
- Page 4 For replacement or repair filter and regulator parts, contact EPUTEC at +49 8191 91 51 19 0 or info@eputec.de. If you have any questions or problems, please contact: EPUTEC Drucklufttechnik GmbH. Haidenbucherstr. 1 86916 Kaufering Phone: +49 8191 91 51 19 0 Fax: +49 8191 91 51 19 91 Email: info@eputec.de Website: www.eputec.de ©2011 EXAIR Corporation...
