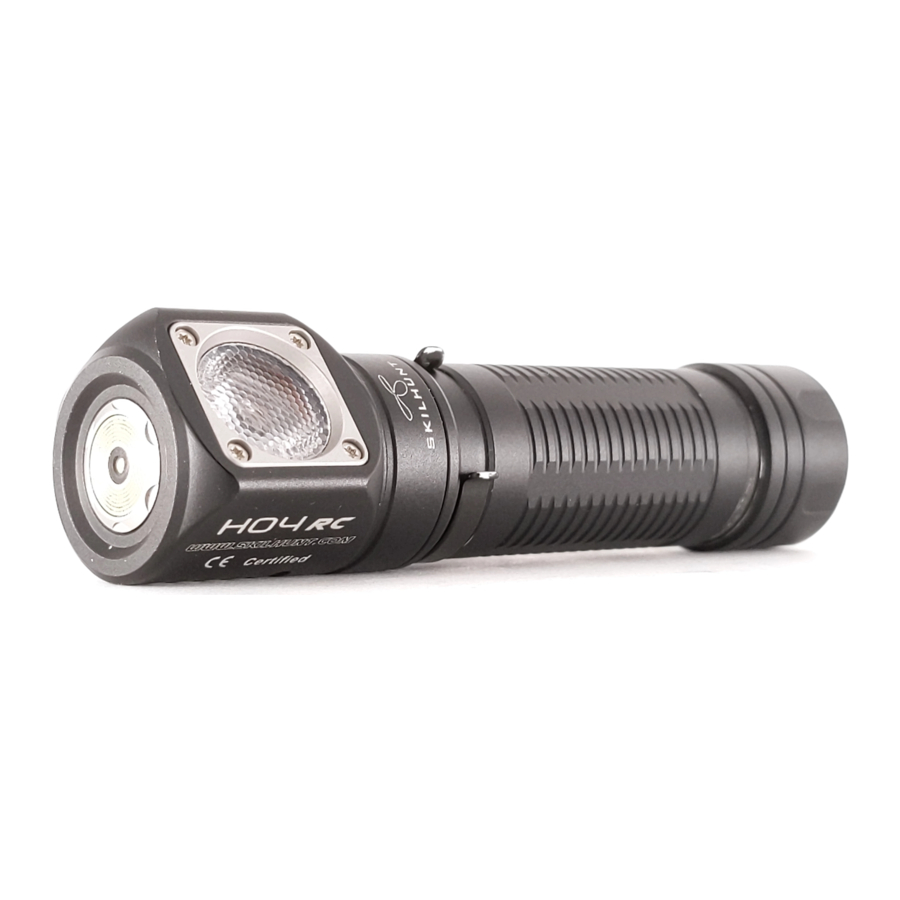

SKILHUNT H04 RC - Magnetic Charging Headlamp Manual

How to use

ON/OFF

Single click the side switch to turn the light on/off. When the light is turned off, it will memorized current brightness level or mode.

CHANGE BRIGHTNESS LEVEL

When the flashlight was OFF:
Single click switch to memory level (H-M1-M2).
Quickly double clicks switch to Turbo(T1/T2) mode.
Quickly triple-click switch to Strobe(S1/S2/S3) mode.
Hold press switch 0.5 second to Low(L1/L2) mode.

When the flashlight was ON (T1/T2, H/M1/M2, L1/L2)
Press and hold the switch to automatically cycle, the level is selected when the side switch has been released, turn off memorized.

When the flashlight was ON (T1/T2, H/M1/M2)
Quickly double clicks switch tranfer memory level(H/M1/M2) to Trubo(T1/T2), repeat quickly double clicks switch back to memory level(H/M1/M2). Quickly triple clicks switch transfer Strobe mode, repeat quickly triple clicks switch back to previous mode.

When the flashlight was ON (S1/S2/S3)
Quickly double clicks switch tranfer S1-S2-S3, turn off memorized.

LOCK-OUT FUNCTION & LOCATION INDICATOR

When the flashlight is off, quickly click switch 4 times to access the button lockout mode (location indicator activation at same time, the indicator light flash every second. Double clicks can turn on/off the indicator). Quickly click switch 4 times, the

LOW VOLTAGE INDICATOR

When the battery voltage drops below 3.0V,indicator flash twice every 2 sec, the light fast flash every 2 Minute at same time.
When the battery voltage drops below 2.7V,the light will cut off.

Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head on the ground. The radiation energy of the flashlight may cause damage to the flashlight itself, or even result in burning to other materials.
Please do not use the turbo mode continuously when the environmental temperature is high in case the flashlight body is too hot to hold.
Please do not put the light with magnetic items such as bank cards and mobile phones.

Notice:

Before operating this product, please read the enclosed User Manual completely. If the product is left unused or carried and transported, please lock the button or slightly loosen the tail thread to avoid accidentally activating the flashlight.
When the product is used in a low-temperature environment, please try and keep it warm.
If the temperature is too cold, it may not affect the output and runtime.

Battery installation

Please make sure that the positive pole of the battery points to the head of the flashlight when you replace the battery.

Charging

Connect the magnetic charging cable to an external USB power source, then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 10W (5V 2A) )
The red indicator means charging, when the battery charging completed, change to blue indicator.

Rechargeable function only for one 18650 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light, charging will damage the charging circuit.

Power indicator

Every time turn on, the side indicator will be light 5 seconds to display the battery power.

Specifications

FL1 STANDARD		T1	T2	H	M1	M2	L1	L2
18650 (3500mAh)		1000-535 lumens	535 lumens	395 lumens	175 lumens	45 lumens	3 lumens	0.5 lumens
		2+210 mins	3.5 hrs	5 hrs	11 hrs	55 hrs	450 hrs	/
2*CR123A (1700mAh)		1100-550 lumens	550 lumens	400 lumens	175 lumens	45 lumens	3 lumens	0.5 lumens
		2+90 mins	1.5 hrs	2.5 hrs	5 hrs	25 hrs	200 hrs	/
		126 m(H04R) / 106 m(H04)
		4000cd(H04R) / 2800cd(H04)
		IPX-8
		1m

Note: The above parameters are only approximation, with high-quality lithium battery in the laboratory environment testing. The product performance may change since battery different or the different use of environment.

• Rated range: 2.7-8.4V, (Recommended a high-performance 18650 battery)
• Dimension: L101.5 mm / 4.00", Head diameter 23.5mm / 0.93 ".
• Weight: 48 g / 1.69 oz (Excluded battery)
• Accessories: Headband, Magnetic Charging Cable, Clip, Lanyard, Spare O-rings.
